Click the Inputs & Outputs tab at the top of the window.

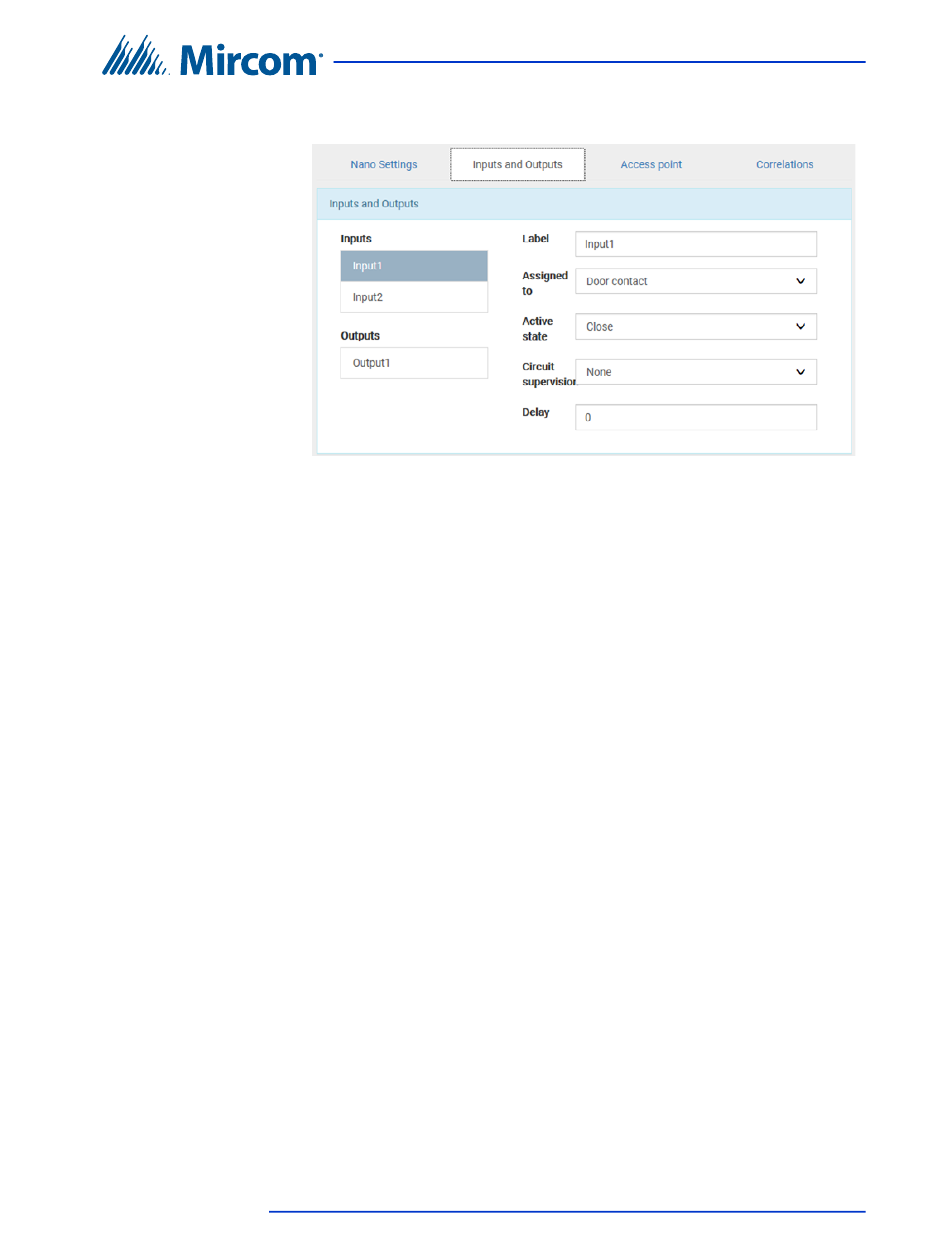

Figure 14. Input & Outputs
3.
Select an input and provide information for the following parameters:
Label. Type a name for this input.
Assigned to. Select a function for this input:
Door contact
General purpose
See section 2.7.1 on page 23 for information about door contact.
Active state. Active state is the state in which the input is considered
active. Select one of the following:
Close
Open
There are some restrictions in configuring the active state depending on
what kind of supervision is required.
If the input is not supervised the input is either 'open' or 'closed'. If the
input is supervised for 'open' the active state cannot be 'open'.
If the input is supervised for both 'open' and 'short' the active state cannot
be 'open'.
Circuit supervision. Circuit supervision specifies the circuit
type and indicates whether the input is supervised. Select one of the
following:
None
TX3 Nano Configuration Manual
Copyright 2018
Nano Settings
25
