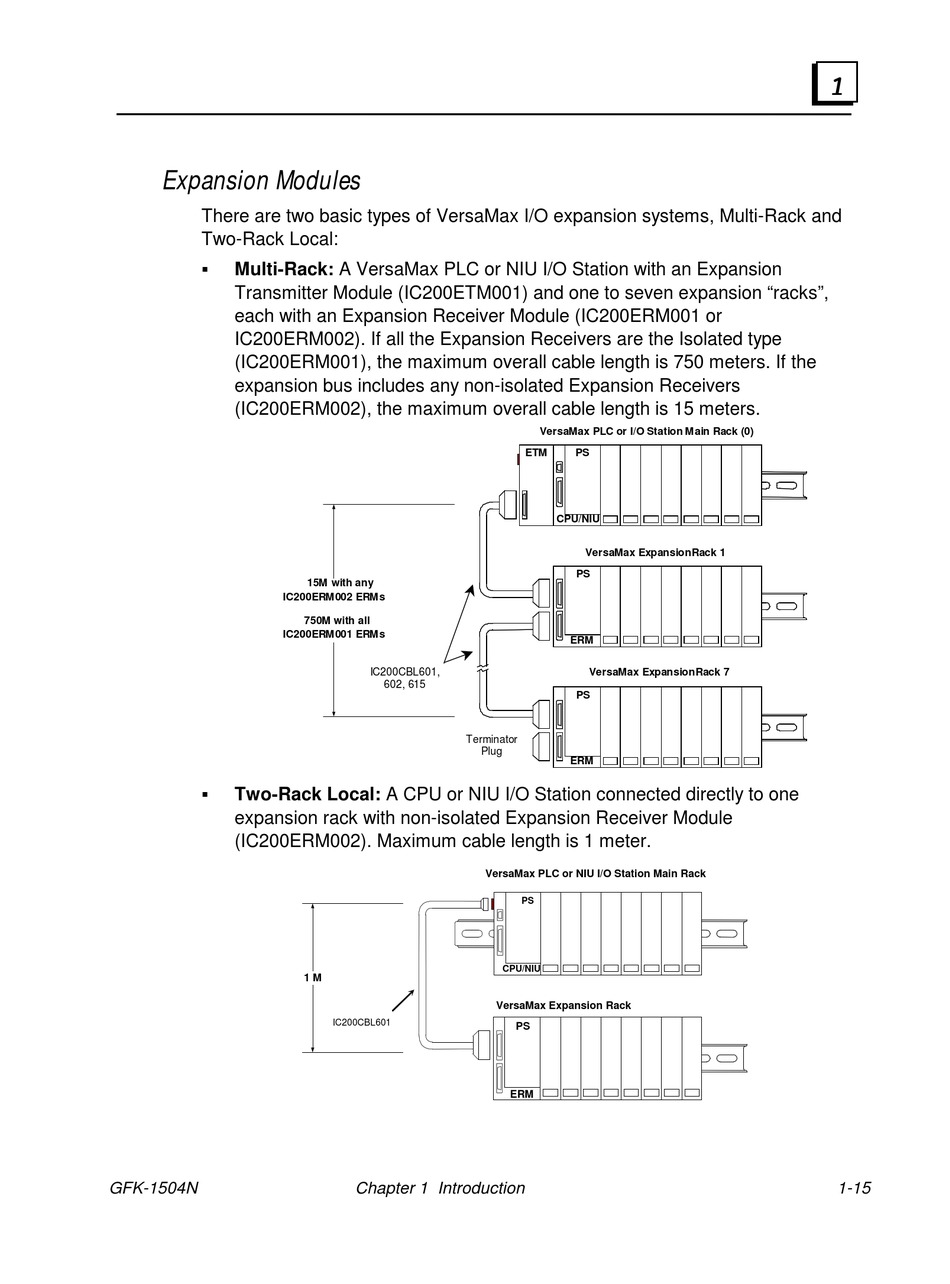

Expansion Modules

There are two basic types of VersaMax I/O expansion systems, Multi-Rack and
Two-Rack Local:

Multi-Rack: A VersaMax PLC or NIU I/O Station with an Expansion
Transmitter Module (IC200ETM001) and one to seven expansion "racks",
each with an Expansion Receiver Module (IC200ERM001 or
IC200ERM002). If all the Expansion Receivers are the Isolated type
(IC200ERM001), the maximum overall cable length is 750 meters. If the
expansion bus includes any non-isolated Expansion Receivers
(IC200ERM002), the maximum overall cable length is 15 meters.
IC200ERM002 ERMs
IC200ERM001 ERMs

Two-Rack Local: A CPU or NIU I/O Station connected directly to one
expansion rack with non-isolated Expansion Receiver Module
(IC200ERM002). Maximum cable length is 1 meter.
GFK-1504N
15M with any
750M with all
IC200CBL601,
602, 615
Terminator
Plug
1 M
IC200CBL601
Chapter 1 Introduction
VersaMax PLC or I/O Station Main Rack (0)
ETM PS
CPU/NIU
VersaMax ExpansionRack 1
PS
ERM
VersaMax ExpansionRack 7
PS
ERM
VersaMax PLC or NIU I/O Station Main Rack
PS
CPU/NIU
VersaMax Expansion Rack
PS
ERM
1
1-15
