Connector Subsystems

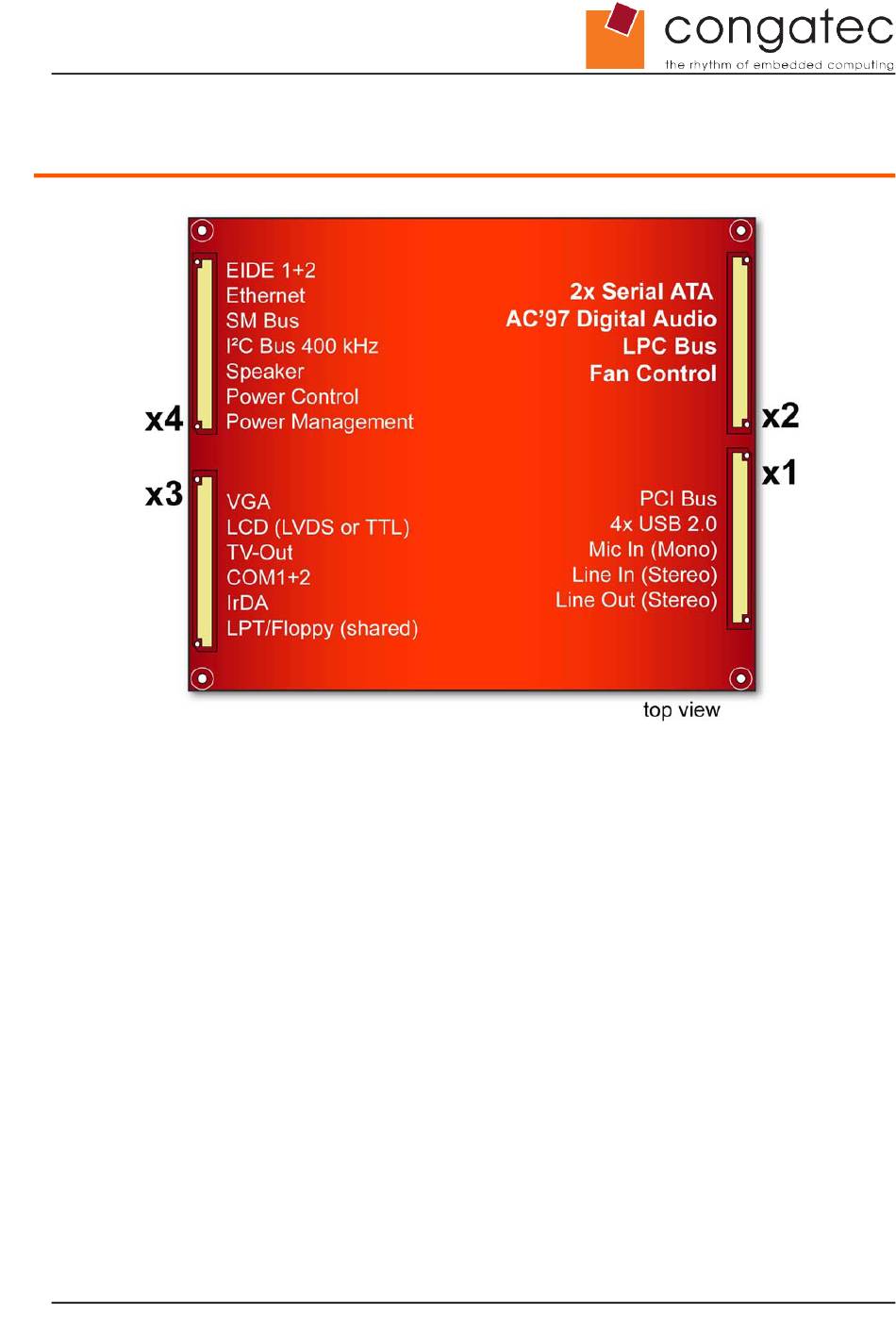

In this view the connectors are seen "through" the module.
4.1 Connector X1
The following subsystems can be found on connector X1.
4.1.1
PCI Bus
The implementation of the PCI bus complies with PCI specification Rev. 2.1 and ETX
specification Rev. 2.7
4.1.2
USB 2.0
The conga-XLX offers one OHCI and one EHCI USB host controller via the AMD
Geode™ CS5536 companion device. These controllers comply with USB standard 1.1
and 2.0 and provide a total of four USB ports on the X1 connector that support the
connection of USB 2.0 compliant devices.
Copyright © 2006 congatec AG
X800m12
®
19/72
