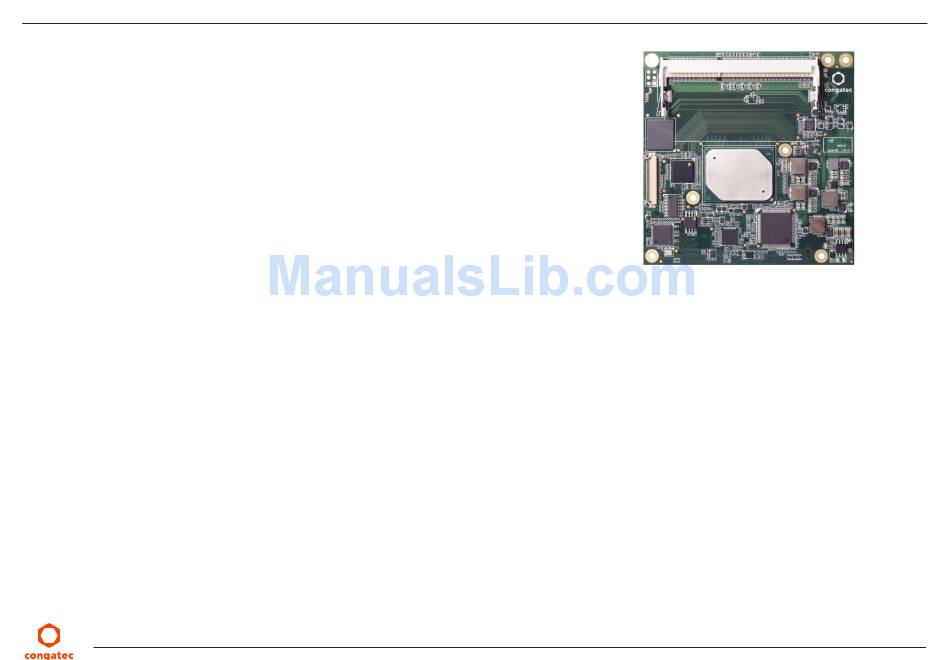

- Page 1 COM Express™ conga-TCA5 COM Express Type 6 Compact module based on the Intel Atom , Pentium and Celeron Apollo Lake SoC ® ™ ™ ® User's Guide Revision 1.0 Copyright © 2017 congatec AG TA50m10 1/72...
-
Page 2: Revision History
Updated tables 5 "Power Consumption Values" and 6 "CMOS Battery Power Consumption" • Updated section 4 "Block Diagram" • Added content to sections 9 "System Resources", 10 "BIOS Description" and 11 "Additional BIOS Features" • Official release Copyright © 2017 congatec AG TA50m10 2/72... - Page 3 The information contained within this user's guide, including but not limited to any product specification, is subject to change without notice. congatec AG provides no warranty with regard to this user's guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing.
- Page 4 Copyright © 2017, congatec AG. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec AG. congatec AG has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.
- Page 5 (c) arising from course of performance, course of dealing, or usage of trade. congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
-
Page 6: Technical Support
Technical Support congatec AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. -
Page 7: Table Of Contents
Optional eMMC 5.0 ..............33 Environmental Specifications ........... 18 6.1.2 Low Voltage Memory (DDR3L) ..........33 Block Diagram ................19 6.1.3 congatec Board Controller (cBC) ..........33 6.1.3.1 Board Information ..............33 Cooling Solutions ..............20 6.1.3.2 General Purpose Input/Output ..........33 6.1.3.3... - Page 8 9.1.1 LPC Bus ..................66 PCI Configuration Space Map ..........67 I²C Bus ..................68 SM Bus ..................68 congatec System Sensors ............69 BIOS Setup Description ............70 10.1 Navigating the BIOS Setup Menu ........... 70 10.2 BIOS Versions................70 10.3...
- Page 9 Table 25 DisplayPort (DP) Signal Descriptions ........61 Table 26 Module Type Definition Signal Description ......63 Table 27 Power and GND Signal Descriptions ........63 Table 28 Connector C-D Pinout ............. 64 Copyright © 2017 congatec AG TA50m10 9/72...
-
Page 10: Introduction
USB 2.0, and Gigabit Ethernet. The Type 6 pinout provides the ability to offer PCI Express, Serial ATA, and LPC options thereby expanding the range of potential peripherals. The robust thermal and mechanical concept, combined with extended power-management capabilities, is perfectly suited for all applications. Copyright © 2017 congatec AG TA50m10 10/72... -
Page 11: Options Information
3x PCIe lanes DP 1.2 / HDMI 1.4b / DVI DP 1.2 / HDMI 1.4b / DVI eMMC (SLC/MLC) Up to 32 GB MLC (optional) Up to 32 GB MLC (optional) SD Card Max. TDP Copyright © 2017 congatec AG TA50m10 11/72... - Page 12 Up to 32 GB MLC (optional) Up to 32 GB MLC (optional) Up to 32 GB MLC (optional) Up to 32 GB MLC (optional) SD Card Max. TDP 12 W 6.5 W 12 W Copyright © 2017 congatec AG TA50m10 12/72...
-
Page 13: Specifications
4x PCIe lanes for variants without Gigabit Ethernet controller and PCIe switch BIOS AMI Aptio ® UEFI 5.x firmware, 8 or 16 MByte serial SPI with congatec Embedded BIOS features Storage Optional eMMC 5.0 onboard flash, with up to 32 GB storage capacity Copyright © 2017 congatec AG TA50m10... -
Page 14: Supported Operating Systems
Microsoft ® recommends a minimum storage capacity of 16 GB for Windows 32-bit OS and 20 GB for 64-bit OS. congatec does not offer installation support for systems which do not meet the recommended storage capacity. Copyright © 2017 congatec AG... -
Page 15: Mechanical Dimensions
Carrier Board PCB Supply Voltage Standard Power • 12V DC ± 5% The dynamic range shall not exceed the static range. 12.60V Absolute Maximum Dynamic Range 12.10V Nominal Static Range 11.90V 11.40V Absolute Minimum Copyright © 2017 congatec AG TA50m10 15/72... -
Page 16: Electrical Characteristics
10% to 90% portion of the rise time, the slope of the turn-on waveform must be positive. Power Consumption The power consumption values were measured with the following setup: • conga-TCA5 COM • modified congatec carrier board • conga-TCA5 cooling solution • Microsoft Windows 10 (64 bit) Note... - Page 17 2 x 4 GB R117 Windows 10 Intel Pentium N4200 1.1 / 2.5 0.12 1.04 1.85 0.11 0.10 ® ® Note With fast input voltage rise time, the inrush current may exceed the measured peak current. Copyright © 2017 congatec AG TA50m10 17/72...
-
Page 18: Supply Voltage Battery Power
3. Consider also the self-discharge of the battery when calculating the lifetime of the CMOS battery. For more information, refer to application note AN9_RTC_Battery_Lifetime.pdf on congatec AG website at www.congatec.com/support/application-notes. 4. We recommend to always have a CMOS battery present when operating the conga-TCA5. -
Page 19: Block Diagram
Note: 3rd Gen congatec I2C Bus System Management Not available by default (assembly option) LID# / SLEEP# Controller LID# / SLEEP# Available only on product variant with PN: 048513 (Watchdog, EEProm...) FAN control Copyright © 2017 congatec AG TA50m10 19/72... -
Page 20: Cooling Solutions
Note The gap pad material used on all congatec heatspreaders contains silicon oil that can seep out over time depending on the environmental conditions it is subjected to. For more information about this subject, contact your local congatec sales representative and request the gap pad material manufacturer’s specification. -
Page 21: Csp Dimensions
CSP Dimensions Commercial Variant Copyright © 2017 congatec AG TA50m10 21/72... - Page 22 Industrial Variant Copyright © 2017 congatec AG TA50m10 22/72...
-
Page 23: Heatspreader Dimensions
Heatspreader Dimensions Commercial Variant Copyright © 2017 congatec AG TA50m10 23/72... - Page 24 Industrial Variant Copyright © 2017 congatec AG TA50m10 24/72...
-
Page 25: Connector Rows
Ethernet controller, since it only has 3 LED outputs - ACT#, LINK100# and LINK1000#. The GBE0_LINK# signal is a logic AND of the GBE0_LINK100# and GBE0_LINK1000# signals on the conga-TCA5 module. Copyright © 2017 congatec AG TA50m10... -
Page 26: Sata
The conga-TCA5 offers an LVDS interface with optional eDP overlay on the AB connector. The LVDS interface provides LVDS signals by default, but can optionally support eDP signals (assembly option). For more information, contact congatec technical center. The LVDS interface supports: •... -
Page 27: Vga
The conga-TCA5 offers a 4-bit SD interface for SD/MMC cards on the A-B connector. The SD signals are multiplexed with GPIO signals and controlled by the congatec Board controller. The SD card controller in the Storage Control Cluster of the SoC supports the SD interface with up to 832 Mbps data rate using 4 parallel data lines. -
Page 28: Gpios
I²C Bus The I²C bus is implemented through the congatec board controller (Texas Instruments Tiva™ TM4E1231H6ZRB) and accessed through the congatec CGOS driver and API. The controller provides a fast-mode multi-master I²C bus that has the maximum I²C bandwidth. 5.1.14 The conga-TCA5 supports SPI interface. - Page 29 The module is kept in reset as long as the PWR_OK is driven by carrier board hardware. The conga-TCA5 supports the controlling of ATX-style power supplies. If you do not use an ATX power supply, do not connect the conga- TCA5 pins SUS_S3/PS_ON, 5V_SB, and PWRBTN# on the conga-TCA5. Copyright © 2017 congatec AG TA50m10 29/72...
-
Page 30: Power Management
For more information about this issue visit www.formfactors.org and view page 25 figure 7 of the document “ATX12V Power Supply Design Guide V2.2”. 5.1.16 Power Management ACPI 5.0 compliant with battery support. Also supports Suspend to RAM (S3). Copyright © 2017 congatec AG TA50m10 30/72... -
Page 31: Secondary Connector Rows C And D
4096 x 2160 @ 60 Hz, 24 bpp HDMI 1.4 3840 x 2160 @ 30 Hz, 24 bpp 4096 x 2160 @ 60 Hz, 24bpp 4096 x 2160 @ 60 Hz, 24 bpp Copyright © 2017 congatec AG TA50m10 31/72... -
Page 32: Hdmi
See table 2 above for possible display combinations. 5.2.2.3 DisplayPort (DP) The conga-TCA5 supports up to two DP interfaces. The interfaces are available on the CD connector. Note See table 2 above for possible display combinations. Copyright © 2017 congatec AG TA50m10 32/72... -
Page 33: Additional Features
The conga-TCA5 is equipped with a Texas Instruments Tiva™ TM4E1231H6ZRBI microcontroller. This onboard microcontroller plays an important role for most of the congatec BIOS features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode. -
Page 34: Fan Control
COM Express™ Specification does not provide support for external hardware triggering of the Watchdog. For more information, see the BIOS setup description in section 10.4.2 of this document and application note AN3_Watchdog.pdf on the congatec AG website at www.congatec.com. Note The conga-TCA5 module does not support the watchdog NMI mode. -
Page 35: Oem Bios Customization
OEM POST Logo This feature allows system designers to replace the congatec POST logo displayed in the upper left corner of the screen during BIOS POST with their own BIOS POST logo. Use the congatec system utility CGUTIL 1.5.4 or later to replace/add the OEM POST logo. -
Page 36: Oem Bios Code/Data
OEM BIOS Code/Data With the congatec embedded BIOS it is possible for system designers to add their own code to the BIOS POST process. The congatec Embedded BIOS first calls the OEM code before handing over control to the OS loader. -
Page 37: Api Support (Cgos)
The architecture of the CGOS API driver provides the ability to write application software that runs unmodified on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, which is available on the congatec website. -
Page 38: Conga Tech Notes
VT-x) added hardware support in the processor to improve the virtualization performance and robustness. Note congatec does not offer virtual machine monitor (VMM) software. All VMM software support questions and queries should be directed to the VMM software vendor and not congatec technical support. -
Page 39: Ahci
Native mode. See section 10.4.9 for more information about this. Running in native mode frees up interrupt resources (IRQs 14 and 15) and decreases the chance that there may be a shortage of interrupts when installing devices. Note If your operating system supports native mode then congatec AG recommends you enable it. 7.1.1.3 Thermal Management ACPI is responsible for allowing the operating system to play an important part in the system's thermal management. -
Page 40: Acpi Suspend Modes And Resume Events
In Device Manager look for the keyboard/mouse devices. Go to the Power Management tab and check ‘Allow this device to bring the computer out of standby’. RTC Alarm Activate and configure Resume On RTC Alarm in the Power setup menu. Only available in S5. Watchdog Power Button Event Wakes unconditionally from S3-S5. Copyright © 2017 congatec AG TA50m10 40/72... -
Page 41: Usb Port Mapping
USB 2.0 USB 2.0 USB 2.0 Port 6 Port 7 Port 0 Port 1 Port 2 Port 3 Port 4 Port 5 Port 0 Port 1 Port 2 Port 3 COM Express Connector Copyright © 2017 congatec AG TA50m10 41/72... -
Page 42: Signal Descriptions And Pinout Tables
Signal Descriptions and Pinout Tables The following section describes the signals found on COM Express™ Type 6 connectors used for congatec AG modules. The pinout of the modules complies with COM Express Type 6 Rev. 2.1. The table below describes the terminology used in this section. The PU/PD column indicates if a COM Express™ module pull-up or pull-down resistor has been used. -
Page 43: A-B Connector Signal Descriptions
Gigabit Ethernet Controller 0 link indicator, active low. O 3.3VSB GBE0_LINK100# Gigabit Ethernet Controller 0 100Mbit/sec link indicator, active low. O 3.3VSB GBE0_LINK1000# Gigabit Ethernet Controller 0 1000Mbit/sec link indicator, active low. O 3.3VSB Copyright © 2017 congatec AG TA50m10 43/72... -
Page 44: Table 6 Serial Ata Signal Descriptions
Serial ATA channel 3, Receive Input differential pair. I SATA Not supported SATA3_RX- SATA3_TX+ Serial ATA channel 3, Transmit Output differential pair. O SATA Not supported SATA3_TX- (S)ATA_ACT# ATA (parallel and serial) or SAS activity indicator, active low. I/O 3.3v Copyright © 2017 congatec AG TA50m10 44/72... -
Page 45: Table 7 Pci Express Signal Descriptions (General Purpose)
PCI Express Reference Clock output for all PCI Express and O PCIE A PCI Express compliant clock buffer chip must be REF+ PCI Express Graphics Lanes. used on the carrier board if more than one PCI Express PCIE_CLK_REF- device is designed in. Copyright © 2017 congatec AG TA50m10 45/72... -
Page 46: Table 8 Expresscard Support Pins Descriptions
USB 2.0 compliant. Backwards compatible to USB 1.1 USB5+ USB Port 5, data + or D+ USB 2.0 compliant. Backwards compatible to USB 1.1 USB5- USB Port 5, data - or D- USB 2.0 compliant. Backwards compatible to USB 1.1 Copyright © 2017 congatec AG TA50m10 46/72... -
Page 47: Table 11 Crt Signal Descriptions
DDC clock line (I²C port dedicated to identify VGA monitor capabilities) I/O OD 5V Not supported by default VGA_I2C_DAT B96 DDC data line. I/O OD 5V Not supported by default Note The optional VGA interface requires a customized variant Copyright © 2017 congatec AG TA50m10 47/72... -
Page 48: Table 12 Lvds Signal Descriptions
LVDS panel backlight brightness control O 3.3V PD 10k LVDS_I2C_CK DDC lines used for flat panel detection and control. O 3.3V LVDS_I2C_DAT DDC lines used for flat panel detection and control. I/O 3.3V Copyright © 2017 congatec AG TA50m10 48/72... -
Page 49: Table 13 Spi Bios Flash Interface Signal Descriptions
Trusted Platform Module an internal pull-down. This signal is used to indicate Physical Presence to the TPM. chip is optional. Note For the correct fan control (FAN_PWMOUT, FAN_TACHIN) implementation, see the COM Express Design Guide. Copyright © 2017 congatec AG TA50m10 49/72... -
Page 50: Table 15 General Purpose I/O Signal Descriptions
SUS_S3# on the carrier board (also known as “PS_ON#”) may be used to enable the non-standby power on a typical ATX power supply. SUS_S4# Indicates system is in Suspend to Disk state. Active low output. O 3.3VSB Copyright © 2017 congatec AG TA50m10 50/72... -
Page 51: Table 17 General Purpose Serial Interface Signal Descriptions
General purpose serial port transmitter O 3.3V SER1_TX A101 General purpose serial port transmitter O 3.3V SER0_RX General purpose serial port receiver I 3.3V 51k 3.3V SER1_RX A102 General purpose serial port receiver I 3.3V 51k 3.3V Copyright © 2017 congatec AG TA50m10 51/72... -
Page 52: Table 18 Power And Gnd Signal Descriptions
All available GND connector pins shall be used and tied to Carrier Board GND plane. A66, A70, A80, A90, A100, A110, B1, B11, B21, B31, B41, B51, B60, B70, B80, B90, B100, B110 Copyright © 2017 congatec AG TA50m10 52/72... -
Page 53: A-B Connector Pinout
LVDS_A3- LVDS_BKLT_EN SATA2_RX+ * SATA3_RX+ * GND (FIXED) GND (FIXED) SATA2_RX- * SATA3_RX- * LVDS_A_CK+ LVDS_B_CK+ BATLOW# LVDS_A_CK- LVDS_B_CK- (S)ATA_ACT# AC/HDA_SDIN2 * LVDS_I2C_CK LVDS_BKLT_CTRL AC/HDA_SYNC AC/HDA_SDIN1 * LVDS_I2C_DAT VCC_5V_SBY AC/HDA_RST# AC/HDA_SDIN0 GPI3 VCC_5V_SBY Copyright © 2017 congatec AG TA50m10 53/72... - Page 54 PCIE_TX5- * PCIE_RX5- * A108 VCC_12V B108 VCC_12V GPI0 GPO1 A109 VCC_12V B109 VCC_12V PCIE_TX4+ PCIE_RX4+ A110 GND (FIXED) B110 GND (FIXED) Note Not supported on conga-TCA5 Supported via an assembly option (customized variant). Copyright © 2017 congatec AG TA50m10 54/72...
-
Page 55: C-D Connector Signal Descriptions
Additional transmit signal differential pairs for the Superspeed USB data path USB_SSTX2- USB_SSRX3+ Additional receive signal differential pairs for the Superspeed USB data path I USB_SSRX3- USB_SSTX3+ Additional transmit signal differential pairs for the Superspeed USB data path USB_SSTX3- Copyright © 2017 congatec AG TA50m10 55/72... -
Page 56: Table 22 Pci Express Signal Descriptions (X16 Graphics)
PCIE_RX[16-31] + and -. PEG_RX1+ PEG_RX1- PEG_RX2+ PEG_RX2- PEG_RX3+ PEG_RX3- PEG_RX4+ PEG_RX4- PEG_RX5+ PEG_RX5- PEG_RX6+ PEG_RX6- PEG_RX7+ PEG_RX7- PEG_RX8+ PEG_RX8- PEG_RX9+ PEG_RX9- PEG_RX10+ PEG_RX10- PEG_RX11+ PEG_RX11- PEG_RX12+ PEG_RX12- PEG_RX13+ PEG_RX13- PEG_RX14+ PEG_RX14- PEG_RX15+ C101 PEG_RX15- C102 Copyright © 2017 congatec AG TA50m10 56/72... - Page 57 D101 PEG_TX15- D102 PEG_LANE_RV# PCI Express Graphics lane reversal input strap. Pull low on the carrier board to reverse lane Not supported. order. Note PCI Express Graphics is not supported on conga-TCA5 modules Copyright © 2017 congatec AG TA50m10 57/72...
-
Page 58: Table 23 Ddi Signal Description
Multiplexed with DP2_LANE2+ and TMDS2_DATA0+. O PCIE DDI2_PAIR2- Multiplexed with DP2_LANE2- and TMDS2_DATA0-. DDI2_PAIR3+ Multiplexed with DP2_LANE3+ and TMDS2_CLK+. O PCIE DDI2_PAIR3- Multiplexed with DP2_LANE3- and TMDS2_CLK-. DDI2_HPD Multiplexed with DP2_HPD and HDMI2_HPD. I 3.3V PD 100k Copyright © 2017 congatec AG TA50m10 58/72... - Page 59 AUX pair contains the CTRLCLK and CTRLDATA signals Note Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user's guide. Copyright © 2017 congatec AG TA50m10 59/72...
-
Page 60: Table 24 Hdmi Signal Descriptions
Multiplexed with DDI3_PAIR2+ and DDI3_PAIR2-. TMDS3_DATA1+ HDMI/DVI TMDS differential pair. O PCIE Not supported TMDS3_DATA1- Multiplexed with DDI3_PAIR1+ and DDI3_PAIR1-.. TMDS3_DATA2+ HDMI/DVI TMDS differential pair. O PCIE Not supported TMDS3_DATA2- Multiplexed with DDI3_PAIR0+ and DDI3_PAIR0-. Copyright © 2017 congatec AG TA50m10 60/72... -
Page 61: Table 25 Displayport (Dp) Signal Descriptions
Uni-directional main link for the transport of isochronous streams and secondary data. O PCIE DP2_LANE0- Multiplexed with DDI2_PAIR0+ and DDI1_PAIR0- DP2_HPD Detection of Hot Plug / Unplug and notification of the link layer. I 3.3V PD 100k Multiplexed with DDI2_HPD. Copyright © 2017 congatec AG TA50m10 61/72... - Page 62 1. Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user's guide. 2. The third DP interface is available only if LVDS is not used. Copyright © 2017 congatec AG TA50m10 62/72...
-
Page 63: Table 26 Module Type Definition Signal Description
C70,C73, C76, C80, C84, C87, C90, C93, C96, C100, C103, C110, D1, D2, D5, D8, D11, D14, D21, D31, D41, D51, D60, D67, D70, D73, D76, D80, D84, D87, D90, D93, D96, D100, D103, D110 Copyright © 2017 congatec AG TA50m10 63/72... -
Page 64: C-D Connector Pinout
DDI1_PAIR4+ * RSVD GND (FIXED) GND (FIXED) DDI1_PAIR4- * DDI1_PAIR0+ PEG_RX9+ * PEG_TX9+ * RSVD DDI1_PAIR0- PEG_RX9- * PEG_TX9- * RSVD RSVD RSVD RSVD DDI1_PAIR5+ * DDI1_PAIR1+ DDI1_PAIR5- * DDI1_PAIR1- PEG_RX10+ * PEG_TX10+ * Copyright © 2017 congatec AG TA50m10 64/72... - Page 65 VCC_12V PEG_RX0- * PEG_TX0- * C108 VCC_12V D108 VCC_12V TYPE0# * PEG_LANE_RV# * C109 VCC_12V D109 VCC_12V PEG_RX1+ * PEG_TX1+ * C110 GND (FIXED) D110 GND (FIXED) Note Not supported on the conga-TCA5. Copyright © 2017 congatec AG TA50m10 65/72...
-
Page 66: System Resources
PCI bus (only specified I/O ranges are forwarded to the LPC bus). With the default settings in the congatec Embedded BIOS, the following I/O address ranges are forwarded to the LPC bus: 80h - 8Fh (via LPC Generic I/O Range 1) A00h - A1Fh (via LPC Generic I/O Range 4) Copyright ©... -
Page 67: Pci Configuration Space Map
Parts of these ranges are not available if a Super I/O is used on the carrier board. If a Super I/O is not implemented on the carrier board, then all these ranges are available for customer use. If you require additional LPC Bus resources other than those mentioned above, or more information about this subject, contact congatec technical support for assistance. PCI Configuration Space Map... -
Page 68: I²C Bus
Disabled by default in the BIOS Setup menu. I²C Bus No onboard resource is connected to the I²C bus. Address 16h is reserved for congatec Battery Management solutions. SM Bus The System Management (SM) bus signals are connected to the Intel Apollo Lake SoC and is not intended to be used by off-board non-system management devices. -
Page 69: Congatec System Sensors
– 5V standard voltage sensor – 5V standby voltage sensor • current sensor • fan monitor The sensors and monitors are accessible through CGOS interface, and also visible on the "Health Monitor"submenu in the BIOS Setup: Copyright © 2017 congatec AG TA50m10 69/72... -
Page 70: Bios Setup Description
10.1 Navigating the BIOS Setup Menu The BIOS setup menu shows the features and options supported in the congatec BIOS. To access and navigate the BIOS setup menu, press the <DEL> or <F2> key during POST. The right frame displays the key legend. Above the key legend is an area reserved for text messages. These text messages explain the options and the possible impacts when changing the selected option in the left frame. -
Page 71: Supported Flash Devices
The flash devices listed above can be used on the carrier board to support external BIOS. For more information about external BIOS support, refer to the Application Note AN7_External_BIOS_Update.pdf on the congatec website at http://www.congatec.com. Copyright © 2017 congatec AG... -
Page 72: Industry Specifications
Industry Specifications The list below provides links to industry specifications that apply to congatec AG modules Specification Link Low Pin Count Interface Specification, Revision 1.0 (LPC) http://developer.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 http://www.pcisig.com/specifications Serial ATA Specification, Revision 3.0...
