Connector Subsystems

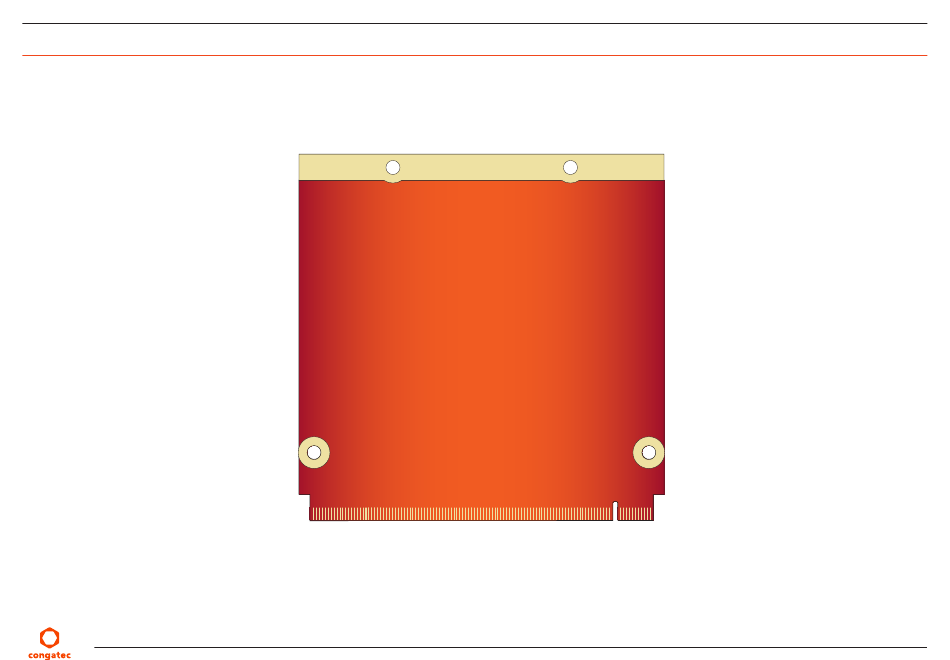

The conga-QMX6 is based on the Qseven

with the 230-pin card-edge MXM connector located on the carrier board. This connector provides the ability to interface the available signals

of the conga-QMX6 with the carrier board peripherals.

standard and therefore has 115 edge fingers on the top and bottom side of the module that mate

1x PCI Express Lane

UART

Onboard RS-232

Gigabit Ethernet

1x Serial ATA

4x USB 2.0

1x USB OTG

SDIO/MMC/MicroSD

I²S Audio

Power Management

eMMC

LVDS

1x HDMI

GPIO

SPI

I²C Bus

CAN Bus

JTAG

Fan Control

Power Control

Watchdog

QMX6m12

26/63
