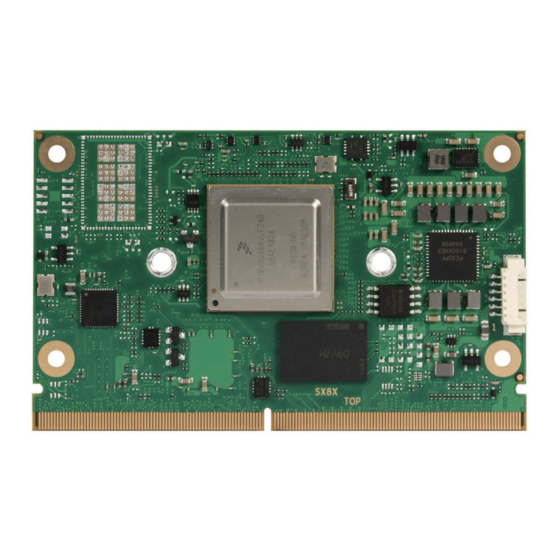

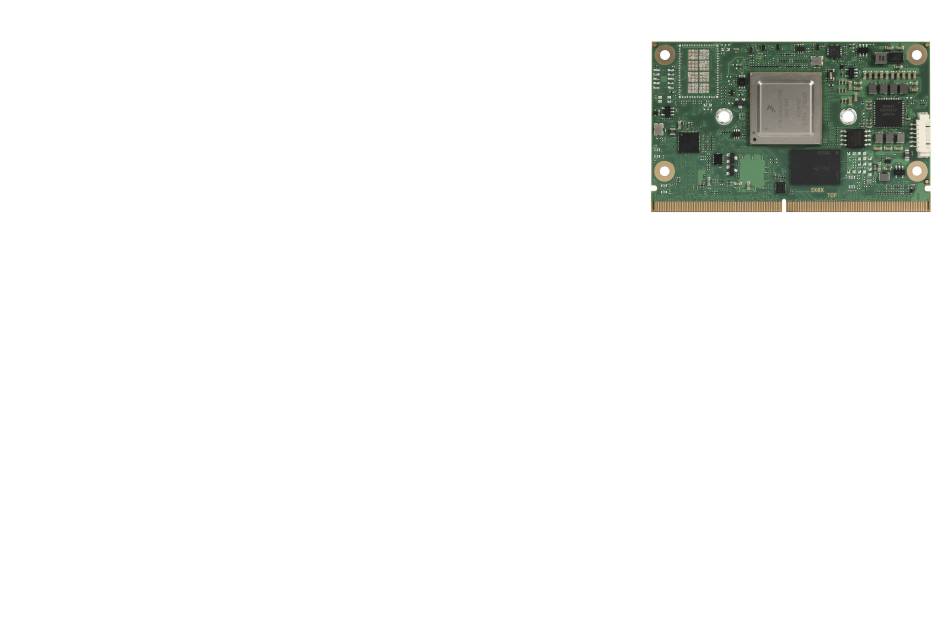

- Page 1 SMARC conga-SMX8-X ® SMARC 2.0 module based on the NXP® i.MX 8QuadXPlus, 8DualXPlus, and 8DualX applications processors User’s Guide Revision 0.1 (Preliminary)
- Page 2 Revision History Revision Date (yyyy-mm-dd) Author Changes 2020-03-27 • Preliminary release Copyright © 2020 congatec AG SX8Xm01 2/32...
- Page 3 In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information...
- Page 4 Trademarks Product names, logos, brands, and other trademarks featured or referred to within this user’s guide, or the congatec website, are the property of their respective trademark holders. These trademark holders are not affiliated with congatec AG, our products, or our website.
- Page 5 (c) arising from course of performance, course of dealing, or usage of trade. congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
- Page 6 High-Definition Multimedia Interface Synchronous Audio Interface Hardware Secure Digital High Assurance Boot SDIO Secure Digital Input Output Heat Spreader Single Data Rate Hertz SDRAM Synchronous Dynamic Random Input/Output Access Memory I²C (I2C) Inter-Integrated Circuit Copyright © 2020 congatec AG SX8Xm01 6/32...
-
Page 7: Table Of Contents
HDMI ..................21 Camera Inteface (MIPI ® CSI) ............ 22 SDIO Card (4 bit) Interface............22 SPI .................... 22 Audio (I2S)................22 I2C Interfaces ................23 Serial Ports ................23 CAN Bus .................. 23 Copyright © 2020 congatec AG SX8Xm01 7/32... - Page 8 Table 9 I2C Interfaces ................23 Table 10 USB Combination ..............24 Table 11 A35 and SCU Connector (X2) Pinout Description ....29 Table 12 JTAG Debug Connector (X1) Pinout Description ....30 Copyright © 2020 congatec AG SX8Xm01 8/32...
-
Page 9: Introduction
By offering most of the functional requirement for any SMARC application, the conga-SMX8-X provides manufacturers and developers with a platform to jump-start the development of systems and applications based on SMARC specification. Its features and capabilities make it an ideal platform for designing compact, energy-efficient, performance-oriented embedded systems. Copyright © 2020 congatec AG SX8Xm01 9/32... -
Page 10: Options Information
1x USB 2.0 OTG 2x USB 2.0 2x USB 2.0 4x USB 2.0 2x USB 2.0 2x USB 3.0 2x USB 3.0 2x USB 3.0 HDMI Audio 2x I²S 2x I²S 2x I²S 2x I²S Copyright © 2020 congatec AG SX8Xm01 10/32... -
Page 11: Accessories
1.2.2 Accessories Table 3 conga-SMX8-X Adapters 48000023 Product RS-232 adapter cable for conga-ARM modules Description Adapter cable for ARM console. MOLEX PicoBlade 6 circuit to two D-SUB 9 connectors. Copyright © 2020 congatec AG SX8Xm01 11/32... -
Page 12: Specifications
Onboard Discrete Real-Time Clock (RTC) Bootloader U-Boot Virtualization Multiple domains with hardware virtualization System MMU Multiple Operating Systems Resource partitioning and split GPU Security High Assurance Boot (HAB) Cryptographic Acceleration and Assurance Module (CAAM) TrustZone ® Copyright © 2020 congatec AG SX8Xm01 12/32... -
Page 13: Supported Operating Systems
Top Side Component Carrier Connector Height depends on the SMARC Module PCB connector height used Bottom Side Component Height depends on the connector height used Carrier Board PCB All dimensions are in millimeters Copyright © 2020 congatec AG SX8Xm01 13/32... -
Page 14: Standard Power
The input voltages shall rise from 10 percent of nominal to 90 percent of nominal at a minimum slope of 250 V/s. The smooth turn-on requires that, during the 10 percent to 90 percent portion of the rise time, the slope of the turn-on waveform must be positive. Copyright © 2020 congatec AG SX8Xm01... -
Page 15: Power Consumption
2 GB i.MX 8QuadXPlus 51104 4 GB i.MX 8QuadXPlus 51105 4 GB i.MX 8QuadXPlus 51110 4 GB i.MX 8QuadXPlus 51111 2 GB i.MX 8DualXPlus 51112 2 GB i.MX 8DualX 51113 2 GB i.MX 8QuadXPlus Copyright © 2020 congatec AG SX8Xm01 15/32... -
Page 16: Supply Voltage Battery Power
Storage: 5% to 95% Caution The above operating temperatures must be strictly adhered to at all times. When using a congatec heatspreader, the maximum operating temperature refers to any measurable spot on the heatspreader’s surface. Humidity specifications are for non-condensing conditions. -
Page 17: Block Diagram
*² HDMI by default on PN: 051105. Not available for industrial variants. +Vin PMIC *³ i.MX 8DualX SoC only supports 10/100 Mbps on GBE1. Wi-Fi/BT by default on PN: 051104 and USB4 therefore not available. Copyright © 2020 congatec AG SX8Xm01 17/32... -
Page 18: Cooling Solutions
1. We recommend a maximum torque of 0.4 Nm for carrier board and module mounting screws. 2. The gap pad material used on congatec heatspreaders may contain silicon oil that can seep out over time depending on the environmental conditions it is subjected to. For more information about this subject, contact your local congatec sales representative and request the gap pad material manufacturer’s specification. -
Page 19: Csp Dimensions
CSP Dimensions R4 (4x) 78 82 21.4 57.8 33.6 4.2 (4x) 2.7 (2x) 7 (2x) 10.8 ø2.7 x 6 mm non-threaded standoff for borehole version Copyright © 2020 congatec AG SX8Xm01 19/32... -
Page 20: Hsp Dimensions
HSP Dimensions A-A (2 : 1) M3 (4x) ø2.7 x 6 mm non-threaded standoff for borehole version Copyright © 2020 congatec AG SX8Xm01 20/32... -
Page 21: Connector Rows
PN: 051105 offers HDMI pins instead of LVDS1/DSI1 pins by default. HDMI pins are only offered as an assembly option for commercial variants of the conga-SMX8-X because there is currently no DSI to HDMI bridge on the market certified for the industrial temperature range. Copyright © 2020 congatec AG SX8Xm01... -
Page 22: Camera Inteface (Mipi ® Csi)
I2S2 pins for up to two Inter-IC Sound (I²S) buses. Note conga-SMX8-X variants with HDMI pins do not offer I2S0 pins. The pin signals are routed to the onboard DSI to HDMI bridge instead to support audio output via HDMI. Copyright © 2020 congatec AG SX8Xm01 22/32... -
Page 23: I2C Interfaces
The conga-SMX8-X offers CAN[0:1] pins for two Controller Area Network (CAN) buses by default via ISO 11898-1 standard compliant FlexCAN controllers integrated in the SoC. Each bus supports the CAN FD and CAN 2.0 B protocols. Optionally, the conga-SMX8-X can offer SER3 pins instead of the CAN1 pins (assembly option). Copyright © 2020 congatec AG SX8Xm01 23/32... -
Page 24: Usb Interfaces
The conga-SMX8-X module variants with NXP i.MX 8DualX SoC do not support USB 3.0 because this SoC does not provide USB 3.0 signals. 5.10 PCI Express™ The conga-SMX8-X offers PCIE_A pins for one PCI Express x1 Gen3 bus with a bitrate of up to 8 GTps. Copyright © 2020 congatec AG SX8Xm01 24/32... -
Page 25: Ethernet
The conga-SMX8-X does not support boot source selection via input straps (BOOT_SEL[0:2]#) because it uses the Boot From Fuses mode. The eFUSES are preset by congatec to load the bootloader (U-Boot) from the onboard SPI NOR flash memory (see section 6.3 “SPI NOR Flash”). -
Page 26: Power Control
The RESET_OUT# signal (pin P126) is an active-low output signal from the module. The module asserts this signal during the power-up sequencing to allow the carrier board power circuits to come up. The module deasserts this signal to begin the boot-up process. Copyright © 2020 congatec AG SX8Xm01... - Page 27 You should µ therefore ensure the power supply and decoupling capacitors provide enough power to drive the module. Note For more information about power control event signals, refer to the SMARC specification. ® Copyright © 2020 congatec AG SX8Xm01 27/32...
-
Page 28: Onboard Interfaces And Devices
USB4 is recommended but it is also possible to connect the module via SDIO (instead of SDIO pins), PCI Express (instead of PCIE_A pins), or Serial Port (instead of SER2 pins; can only be used for BT). Note PN: 051104 offers Wi-Fi/BT instead of USB4 pins by default. Copyright © 2020 congatec AG SX8Xm01 28/32... -
Page 29: Rtc
X2: Molex PicoBlade 0532610671 (6 Circuits, 1.25mm Pitch, Right-Angle, Friction Lock) Mates with Molex PicoBlade Cable Assembly Series 15134 with 6 Circuits For a matching cable with two D-SUB 9 connectors, see Table 3. Copyright © 2020 congatec AG SX8Xm01 29/32... -
Page 30: Jtag Debug
JTAG_TRST#_R JTAG Reset, active low JTAG_SRST# System Reset, active low Connector Type X1: Molex PicoBlade 0532611071 (10 Circuits, 1.25mm Pitch, Right-Angle, Friction Lock) Mates with Molex PicoBlade Cable Assembly Series 15134 with 10 Circuits Copyright © 2020 congatec AG SX8Xm01 30/32... -
Page 31: Pinout Table And Signal Descriptions
The conga-SMX8-X pinout table is publicly available at: https://git.congatec.com/arm-nxp/imx8-family/doc/cgtimx8_pinlist/tree/cgtsx8x_pinlist The SoC signals are described in the respective data sheet publicly available at: www.nxp.com The SMARC signals are described in the SMARC Hardware Specification 2.0 publicly available at: https://sget.org Copyright © 2020 congatec AG SX8Xm01 31/32... -
Page 32: Software Documentation
Software Documentation The conga-SMX8-X software documentation is publicly available at: https://wiki.congatec.com The SoC reference manual is publicly available at: www.nxp.com Copyright © 2020 congatec AG SX8Xm01 32/32...
