SSI encoder: Absolute
Encoder monitor:
The 4 encoder channels (A, B, Z, and D) are monitored, open and short circuit can be detected. There is
a green LED for each channel which lights up when the channel is OK.
NB!
The LEDs are only visible when removing the LCP. Reaction in case of an encoder error can
be selected in par. 17-61: None, Warning or Trip.
When the encoder option kit is ordered separately the kit includes:
• Encoder module MCB 102
• Enlarged LCP fixture and enlarged terminal cover
The encoder option does not support FC 302 frequency converters manufactured before week 50/2004.
Min. software version: 2.03 (par. 15-43)

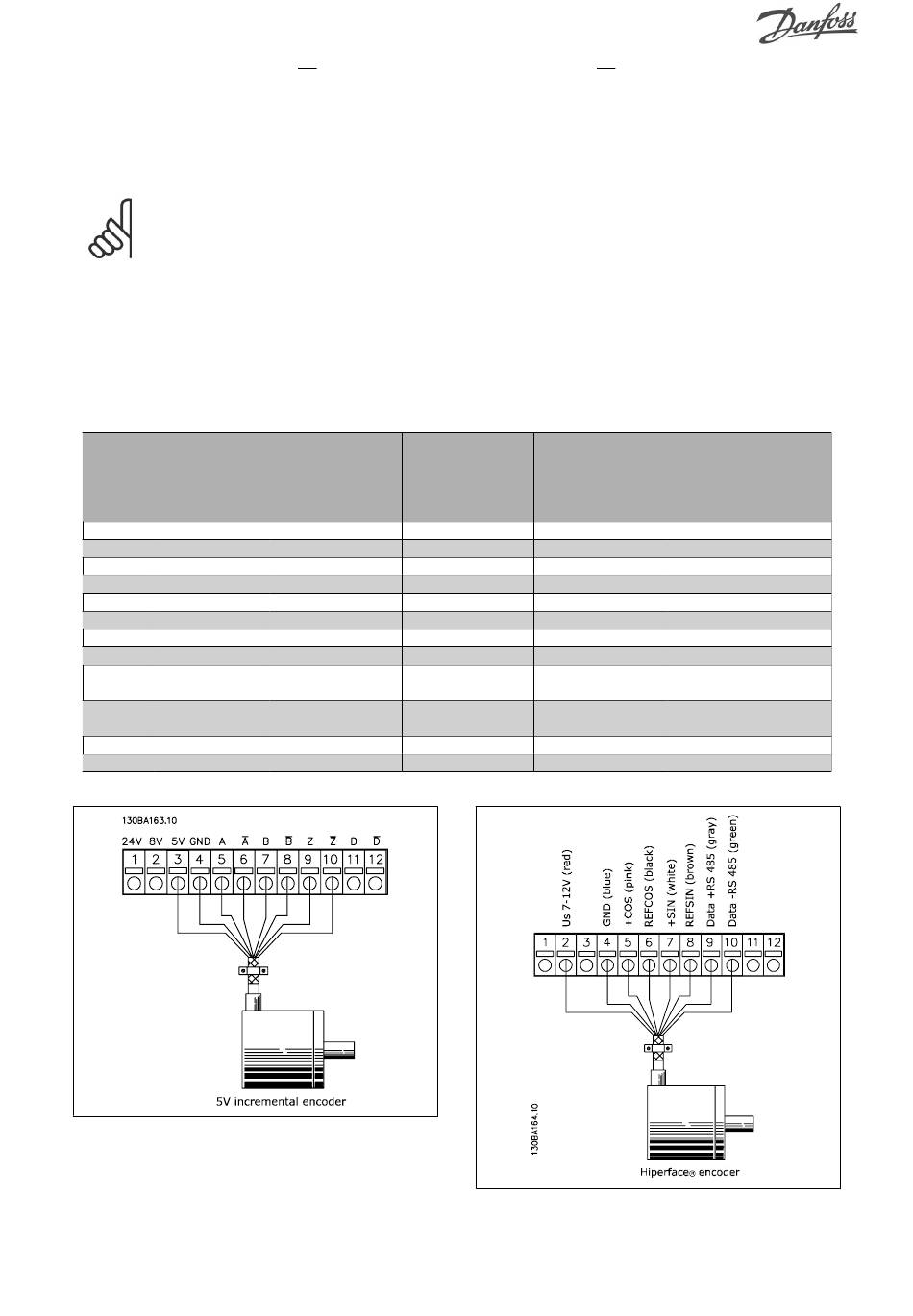

Connec- Incremental
tor Encoder
Desig- (please refer
nation to Graphic A)
X31
1 NC
2 NC
3 5 VCC
4 GND
5 A input
6 A inv input
7 B input
8 B inv input
9 Z input
10 Z inv input
11 NC
12 NC
Max. 5V on X31.5-12
118
Options and Accessories
SinCos Encoder EnDat Encoder
Hiperface®
(please refer to
Graphic B)
8 Vcc
5 Vcc
GND
+COS +COS
REFCOS REFCOS
+SIN +SIN
REFSIN REFSIN
+Data RS485 Clock out
-Data RS485 Clock out inv.
NC Data in
NC Data in inv.
MG.33.B8.02 - VLT ® is a registered Danfoss trademark
SSI Encoder Description
24 V 24 V Output
8 V Output
5 V 5 V Output
GND GND
A input A input
A input inv. A inv input
B input B input
B input inv. B inv input
Clock out Z input OR +Data
RS485
Clock out inv. Z input OR
RS485
Data in Future use
Data in inv. Future use
-Data
