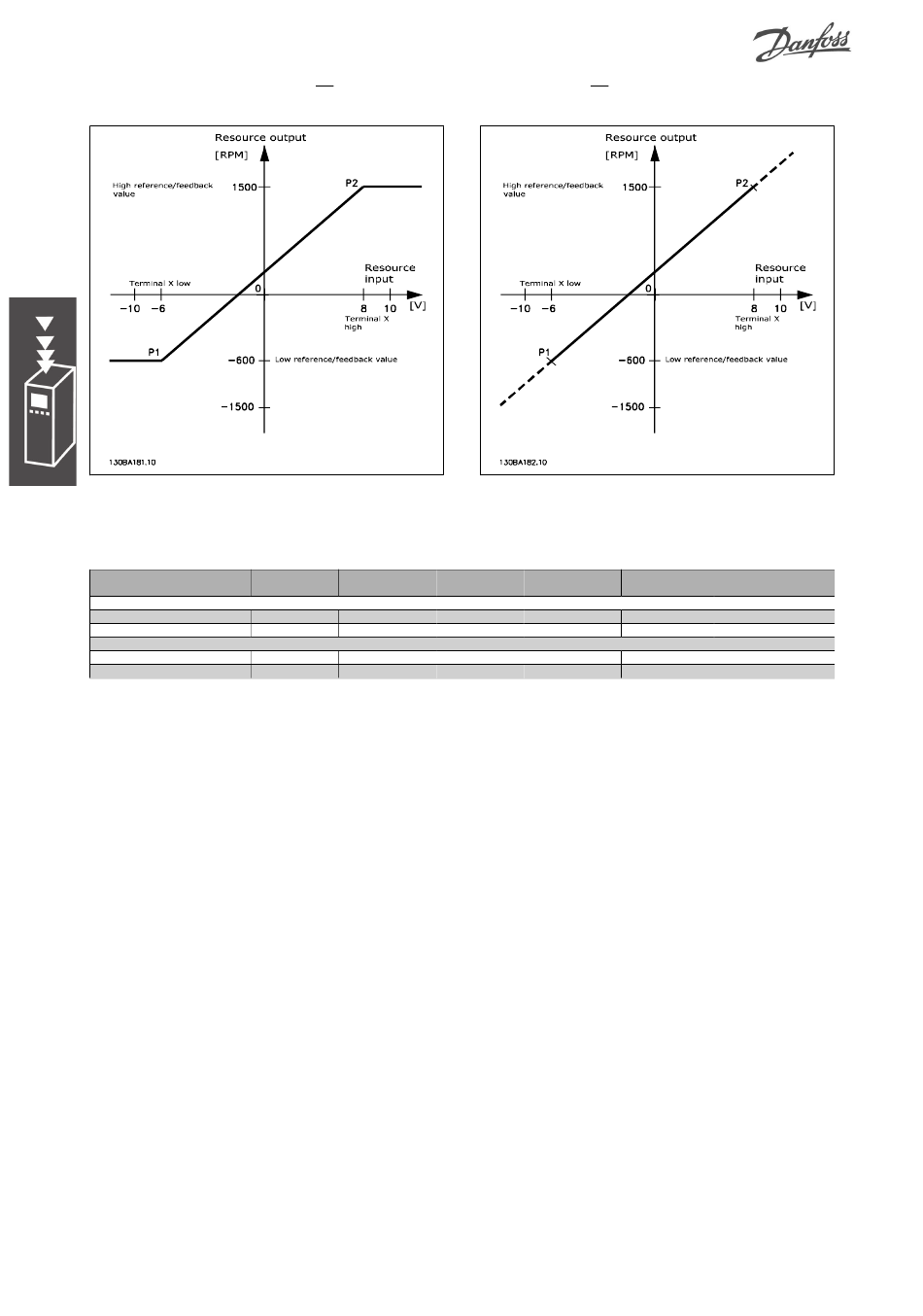

The endpoints P1 and P2 are defined by the following parameters depending on which analog or pulse
input is used
P1 = (Minimum input value, Minimum reference value)
Minimum reference value
Minimum input value
P2 = (Maximum input value, Maximum reference value)
Maximum reference value
Maximum input value
26
Introduction to FC 300
Analog 53 Analog 53
S201=OFF S201=ON
Par. 6-14 Par. 6-14
Par. 6-10 [V] Par. 6-12 [mA]
Par. 6-15 Par. 6-15
Par. 6-11 [V] Par. 6-13 [mA]
MG.33.B8.02 - VLT
Analog 54 Analog 54
S202=OFF S202=ON
Par. 6-24 Par. 6-24
Par. 6-20 [V] Par. 6-22 [mA]
Par. 6-25 Par. 6-25
Par. 6-21 [V] Par. 6-23 [mA]
® is a registered Danfoss trademark
Pulse Input 29 Pulse Input 33
Par. 5-52 Par. 5-57
Par. 5-50 [Hz] Par. 5-55 [Hz]
Par. 5-53 Par. 5-58
Par. 5-51 [Hz] Par. 5-56 [Hz]
