Danfoss VLT AutomationDrive FC 300 Design Manual page 83

FC 300 Design Guide

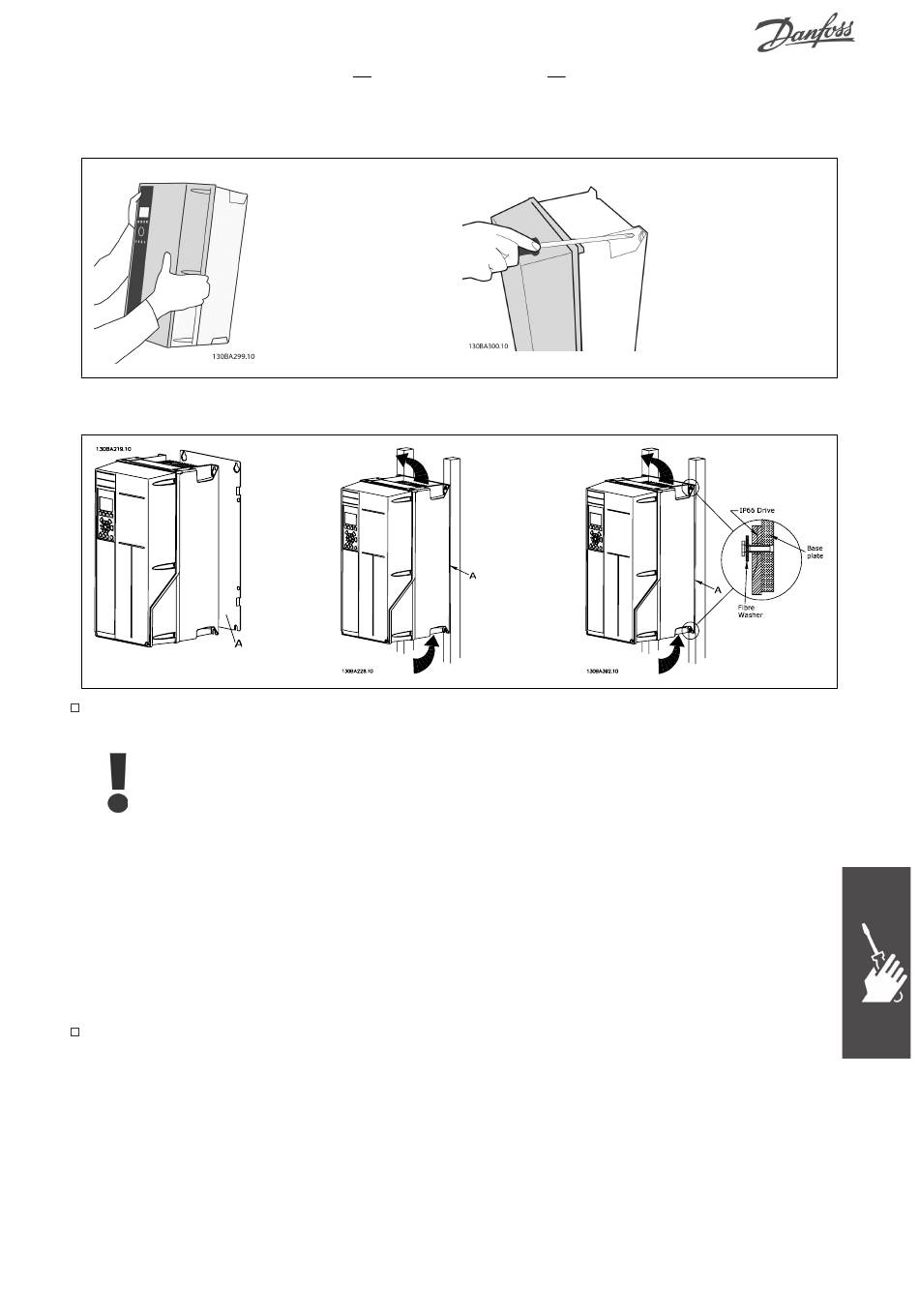

Mounting frame sizes A5, B1, B2, C1 and C2:
Mounting frame sizes A5, B1, B2, C1 and C2 on a
non-solid back wall, the drive must be provided
Safety Requirements of Mechanical Instal-
lation
Pay attention to the requirements that apply to integration and field mounting kit. Observe
the information in the list to avoid serious damage or injury, especially when installing large
units.
The frequency converter is cooled by means of air circulation.
To protect the unit from overheating, it must be ensured that the ambient temperature does not exceed
the maximum temperature stated for the frequency converter and that the 24-hour average temperature
is not exceeded. Locate the maximum temperature and 24-hour average in the paragraph Derating for
Ambient Temperature.
If the ambient temperature is in the range of 45 °C - 55 ° C, derating of the frequency converter will
become relevant, see Derating for Ambient Temperature.
The service life of the frequency converter is reduced if derating for ambient temperature is not taken
into account.
Field Mounting
For field mounting the IP 21/IP 4X top/TYPE 1 kits or IP 54/55 units are recommended.
How to Install
The back wall must always be solid for optimum
cooling.
with a back plate A due to insufficient cooling air
over the heat sink.
®
MG.33.B8.02 - VLT is a registered Danfoss trademark
83
