Target Positioner for Leksell Headring
5.2.3

Mounting the Target Positioner for Leksell Headring

How to Mount the Target Positioner
Steps
Safe Handling
To ensure secure and accurate positioning, objects should not be inserted between the
Leksell G-Frame headring and Target Positioner for Leksell Headring.
Do not use the Target Positioner for Leksell Headring for patient treatment if it is in any
way warped or damaged, or if parts of the target positioner or carrier plates are loose.
Only use the Target Positioner for Leksell Headring if it can be firmly secured to the Leksell
G-Frame Headring.
86
Bring the four alignment pins of the Target Positioner for Leksell Headring in line
1.
with the corresponding holes (Figure 49, left) of the Leksell G-Frame headring.
Insert the alignment pins into the holes. Aligning the two clamping units with the Lek-
2.
sell G-Frame headring (Figure 49, right), then securing the screws.

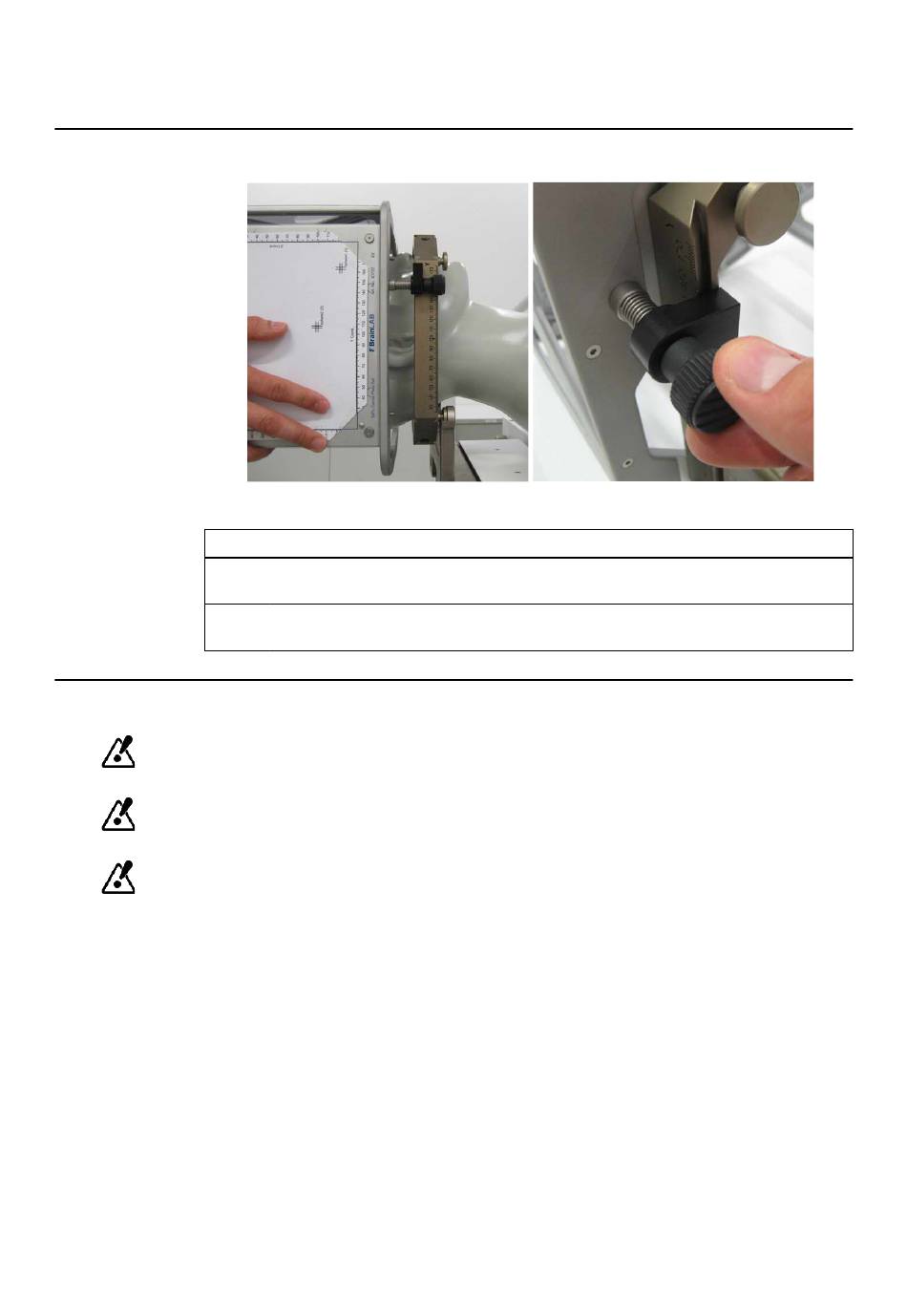

Figure 49
Hardware User Guide Rev. 4.9 RT / RS Stereotactic Hardware
