HARDWARE OVERVIEW
Attaching the Couchmount
Steps
Detaching the Couchmount
Steps
Hardware User Guide Rev. 4.9 RT / RS Stereotactic Hardware

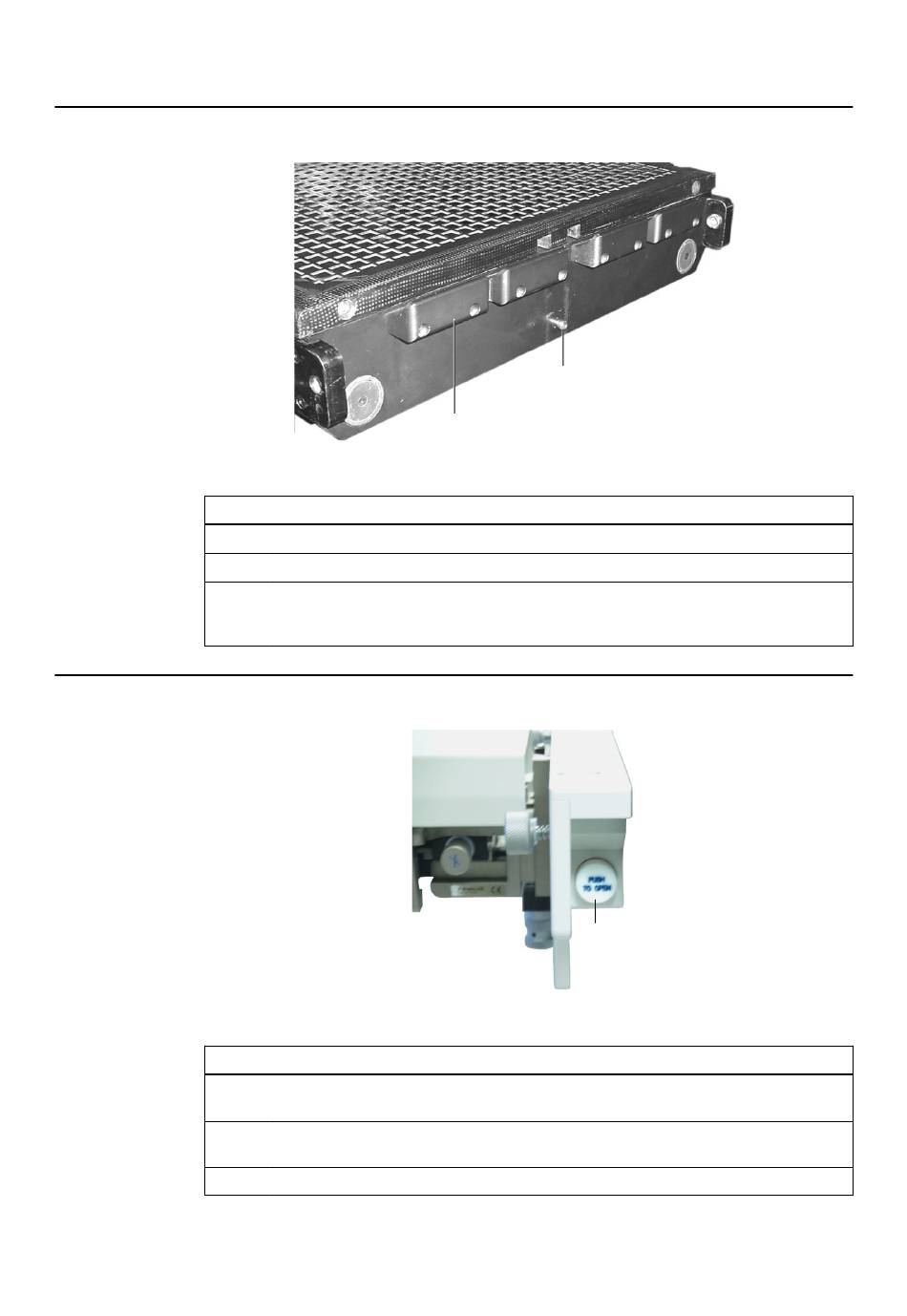

1. Ensure that the status indicator (② on Figure 5) is red.
2. Lower the back of the couchmount onto the hooks (③ on Figure 6) on the couch.
Lower the bottom of the couchmount until it sits flushly against the couch. The locking
bolt ④will automatically engage and secure the attachment. The status indicator
3.
should be green.
Press and hold the button ⑤ on the side of the couchmount to disengage the automat-
1.
ic locking mechanism.
While still holding down the button, tilt the bottom of the couchmount away from the
2.
couch.
3. Let go of the button and lift the couchmount off the couch.
④
③
Figure 6
⑤
Figure 7
