Siemens Zxt Carbon Fiber Couch Top - Brainlab RT/RS Hardware User's Manual

HARDWARE OVERVIEW
2.1.3

Siemens ZXT Carbon Fiber Couch Top

Attaching the Couchmount
Steps
Detaching the Couchmount
To remove the couchmount:
• Loosen the upper and lower fixation levers by approximately 2 mm and twist the lower blocks
completely outward.
• Slide out the couchmount.
Hardware User Guide Rev. 4.9 RT / RS Stereotactic Hardware

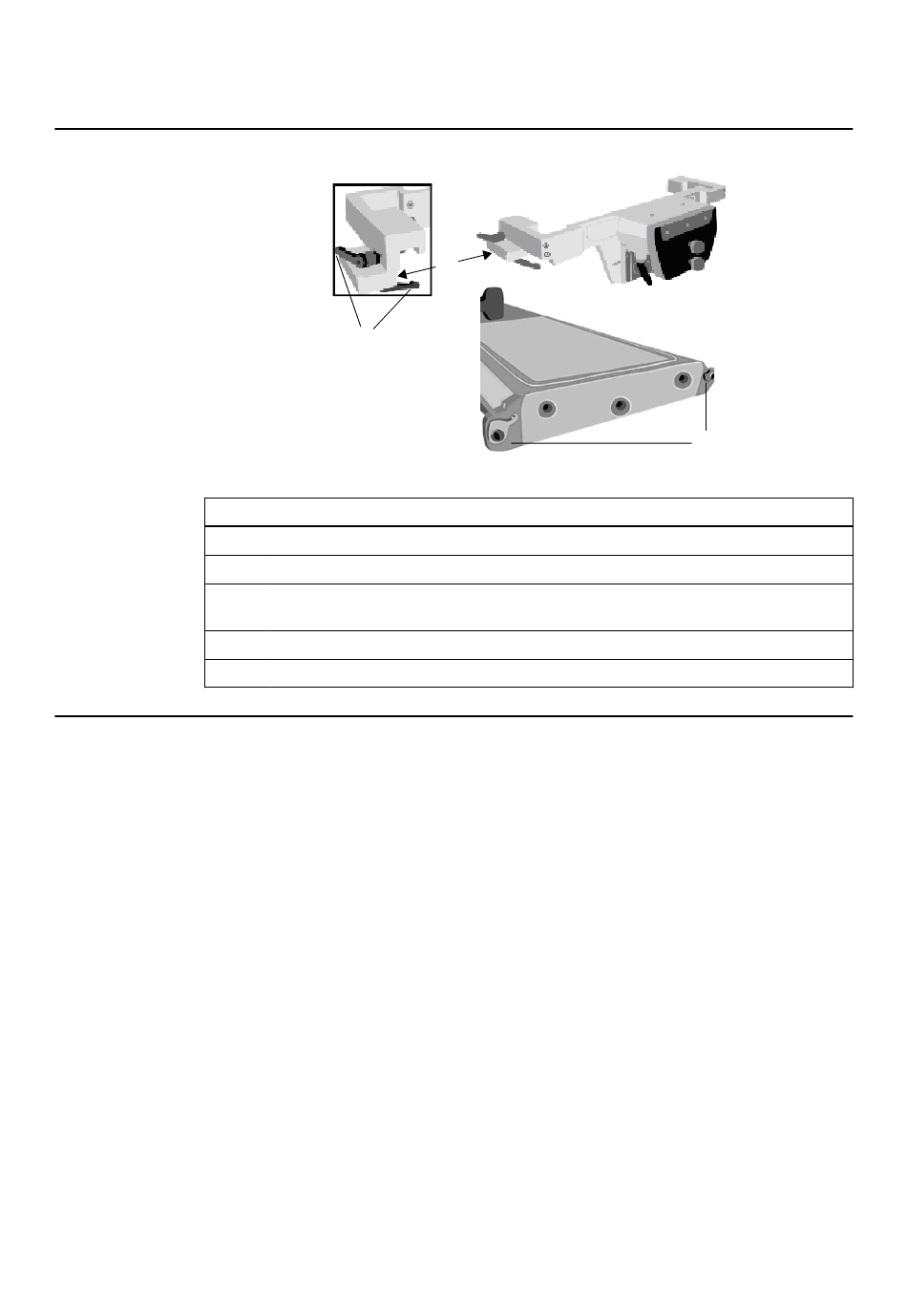

①
Loosen the lower and upper fixation levers ① by approximately 2 mm.
1.
Twist the lower blocks ②completely outward.
2.
Lower the couchmount onto the couch's side rails ③. The notches on the couchmount
3.
should fit directly over each side rail.
Twist the lower blocks ② inward until they fit securely against the side rails.
4.
Refasten the lower and upper fixation levers ①.
5.
②
Figure 4
③
27
