Stereotactic Headring
3.1.2

Stereotactic Headring Components

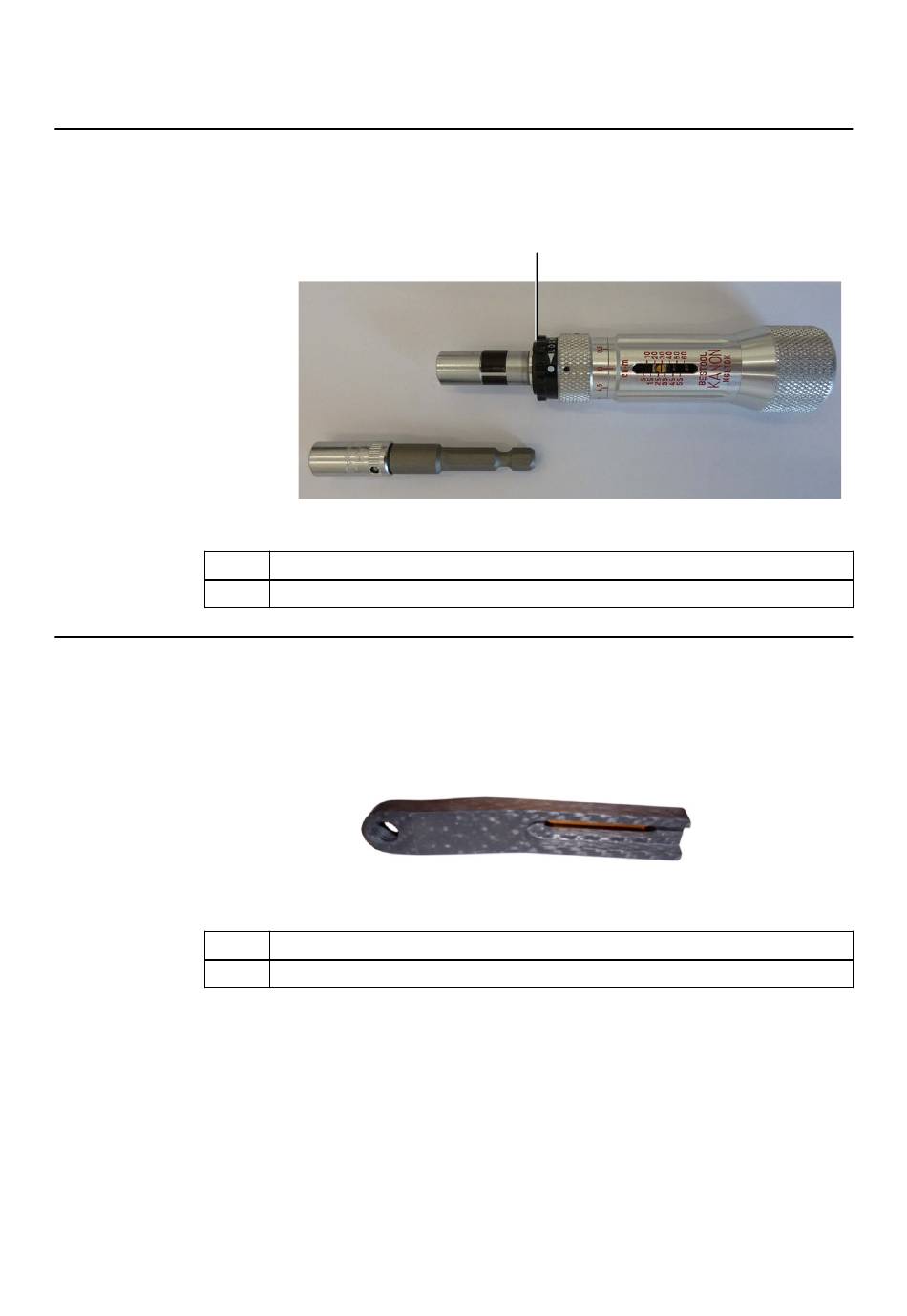

Torque Wrench
The torque wrench is provided to prevent the user from applying more than the desired torque to
the fixation pins. It offers a reliable method for applying reproducible and measurable force to a
patient's head. Two torque wrenches are included in the headring set.
No.
Headring Posts
Four carbon fiber headring posts are delivered with the headring and are optimized for stability
and artifact-free diagnostic imaging. Each of the four posts is attached to the inside of the
headring using the screw at the bottom of the post. This form of attachment allows vertical and
angular adjustment of each post.
No.
48
Component
①
Torque wrench
Component
①
Headring post
①
Figure 20
①
Figure 21
