Angio Distortion Correction Module

Overview
The Angio Distortion Correction Module is a low density carbon fiber plate that can be attached
to either the CT/X-Ray LocalizerorCT/X-Ray Localizer for Leksell Headring. A grid of 294
stainless steel spheres – each with a diameter of 2 mm – is embedded in its surface.
How to Attach the Angio Distortion Correction Module
The Angio Distortion Correction Modulecan be fitted to the top or to either side of the localizer,
depending on the location of the image detector.
Steps
Hardware User Guide Rev. 4.9 RT / RS Stereotactic Hardware
①
②

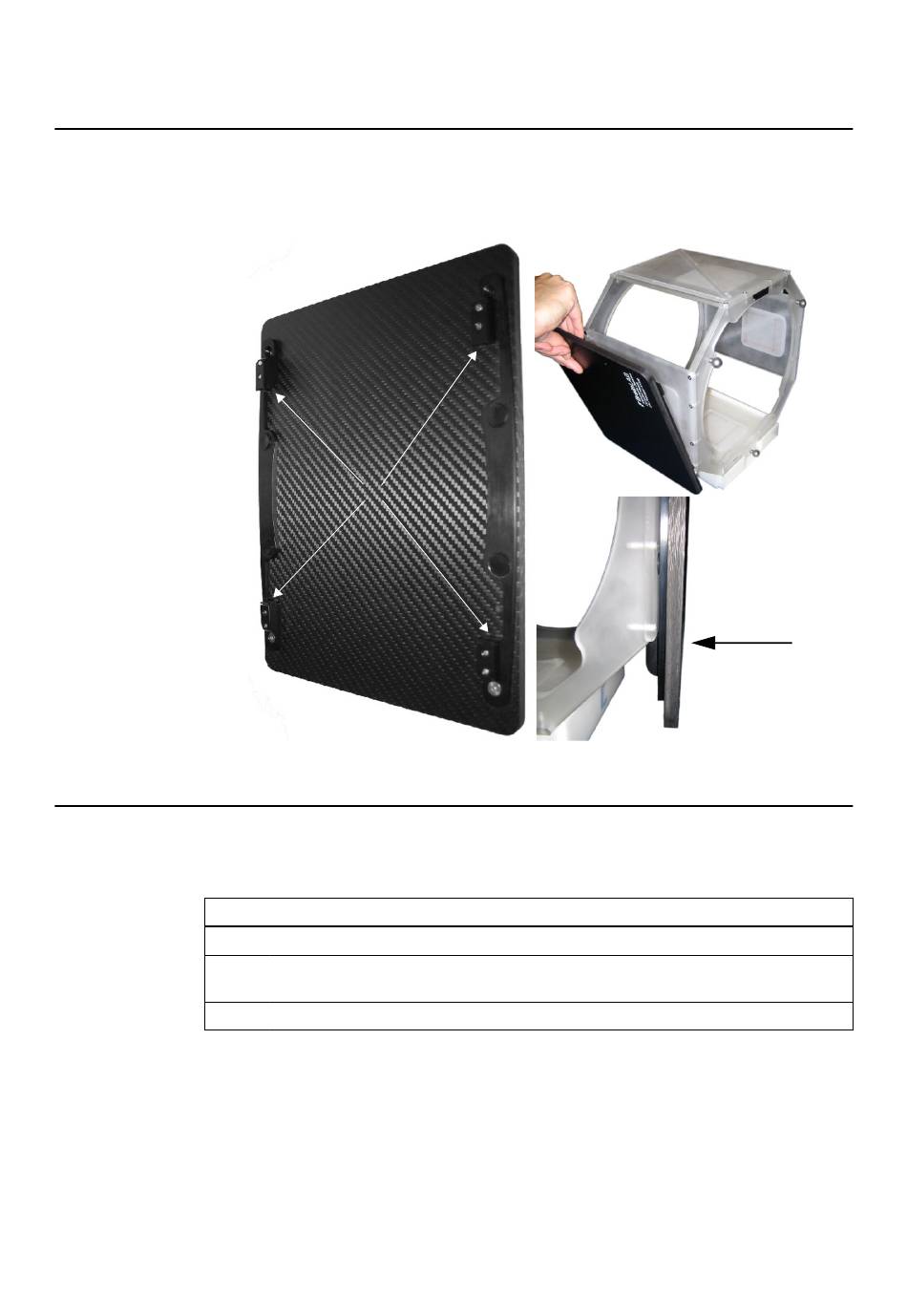

Hold one pair of guiding hooks ② against the edge of a localizer plate ③.
1.
Gently press the other side of the Angio Distortion Correction Moduleagainst the lo-
2.
calizer until it snaps into place ④. The module should sit flush against the localizer.
3. Ensure that the Angio Distortion Correction Module is facing the image detector.
③
④
Figure 42
