Stereotactic Mask System

3.2.1

Mask System Components

Overview
The non-invasive Stereotactic Mask System enables precise and easily repeatable patient
fixation for cranial stereotactic radiotherapy (SRT) and stereotactic radiosurgery (SRS). The mask,
constructed from thermo-transformable material, is individually molded for each patient and
secured to the mask ring.
The mask may cause mild irritation to patients with sensitive skin.
General Components
No.
Hardware User Guide Rev. 4.9 RT / RS Stereotactic Hardware
③
②
Component
①
Headrest
②
Mask ring
③
Screw
④
Cam locks
⑤
Vertical posts
⑥
Vertical post positions (letters)
④
⑤
①

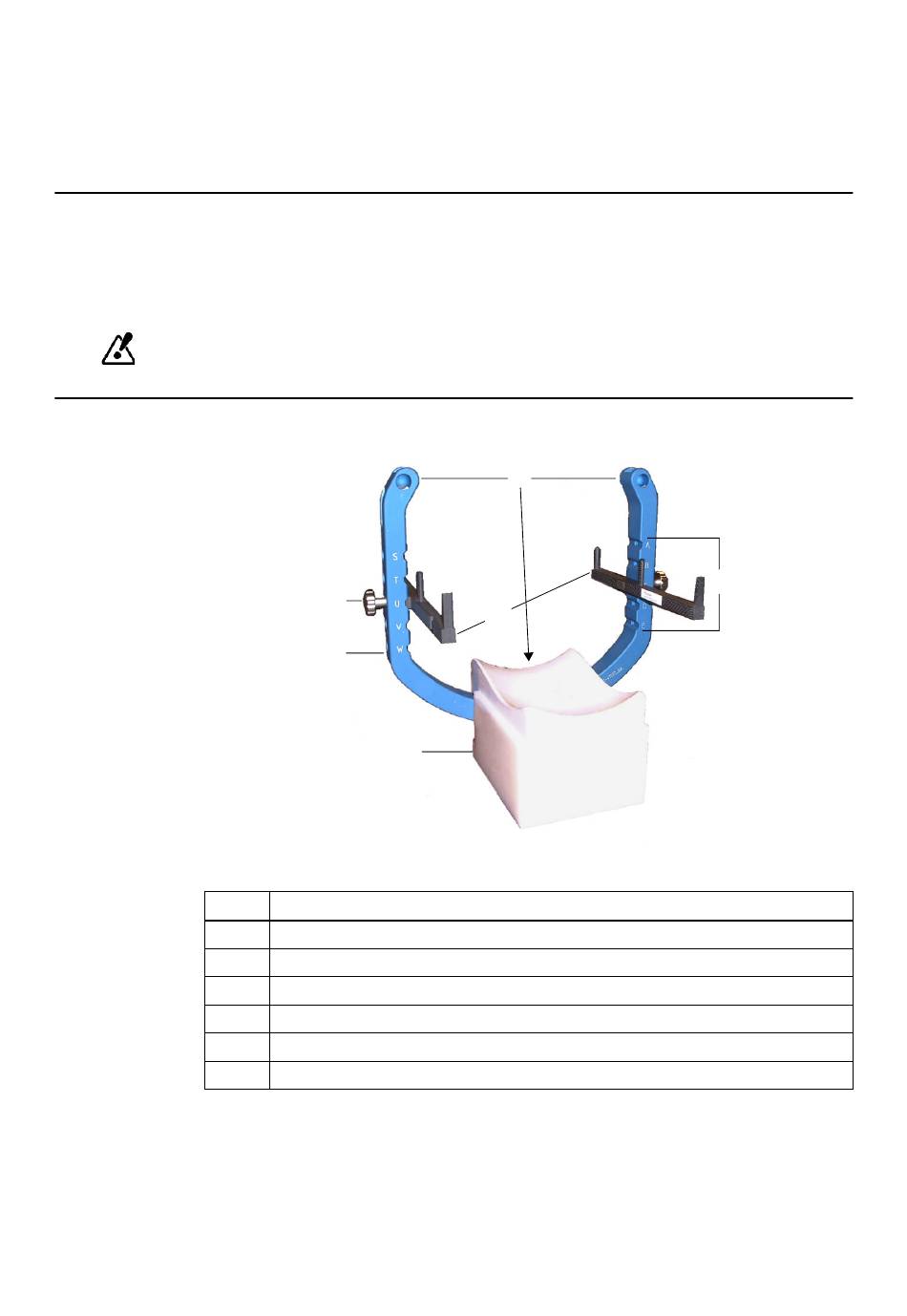

Figure 27
