Brainlab RT/RS Hardware User's Manual page 24

Brainlab Couchmount
Common Couchmount Features
No.
Warranty Information
The couchmount component warranty (for usage under normal operating conditions) is valid for
one year.
NOTE: Brainlab is not liable for damages resulting from misuse, incorrect installation, accidents,
or connections to devices or accessories not approved by Brainlab
24
⑧
⑨
②
⑤
Component
①
Fixation levers for the couch side rails (one below the holder and one to the side)
②
T adjustment of the table tilt, Tilt
③
X rotary knob (transversal)
④
Y rotary knob (sagittal)
⑤
Z rotary knob (longitudinal)
⑥
Holes for attaching the couchmount adapter
⑦
Insertion points for attaching the Phantom Pointer (for non-Brainlab headring)
⑧
Lock for the X, Y adjustment
⑨
Lock for the Z adjustment
⑩
Side rail holder
⑦
⑥
③
④

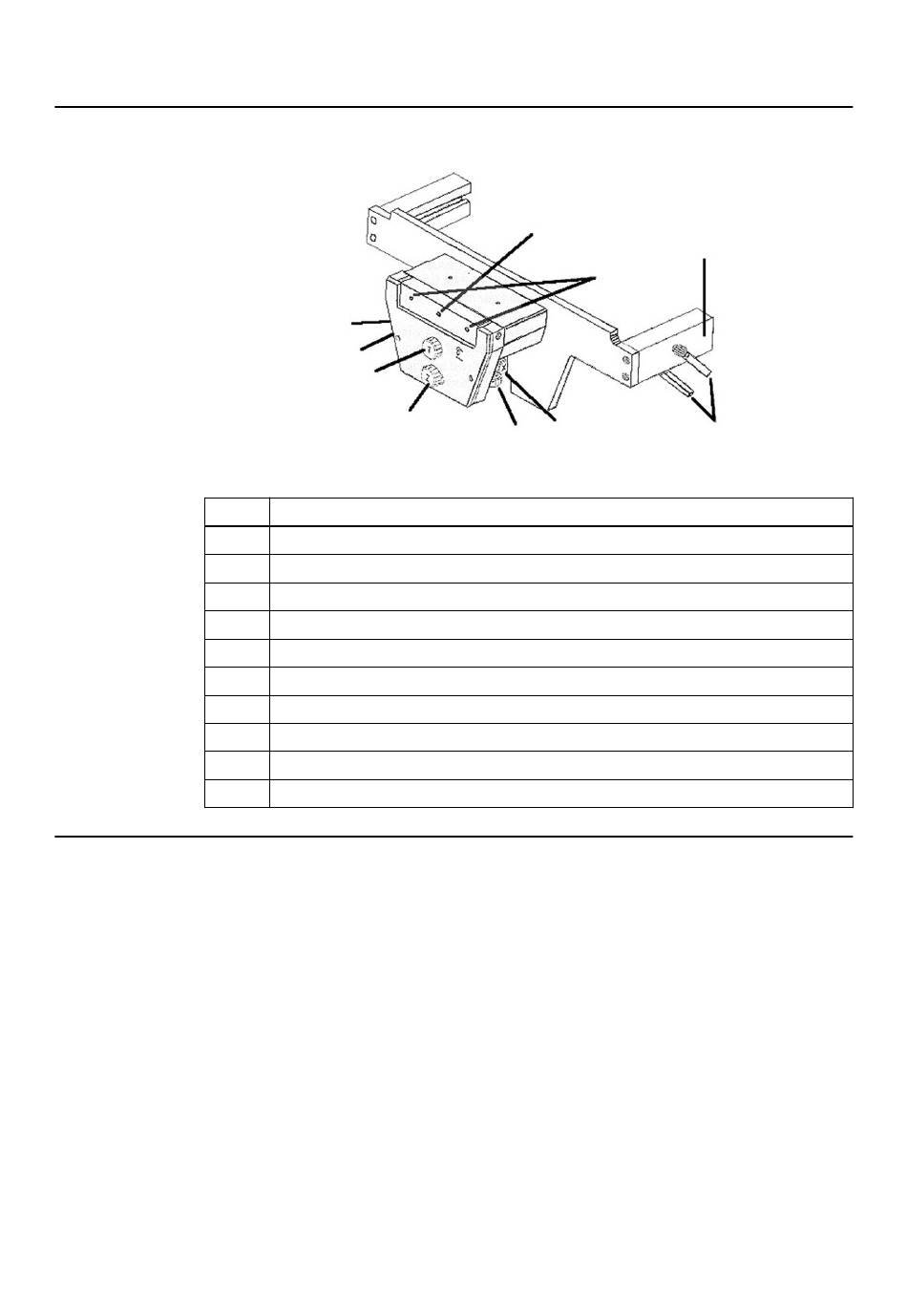

Figure 1
Hardware User Guide Rev. 4.9 RT / RS Stereotactic Hardware
⑩
①
