HARDWARE OVERVIEW
2.2

Couchmount Adapters

2.2.1

Couchmount Adapter Types

Overview
Brainlab provides special couchmount adapters for various stereotactic headrings. These
adapters are attached via attachment holes to the couchmount. (See page 24)

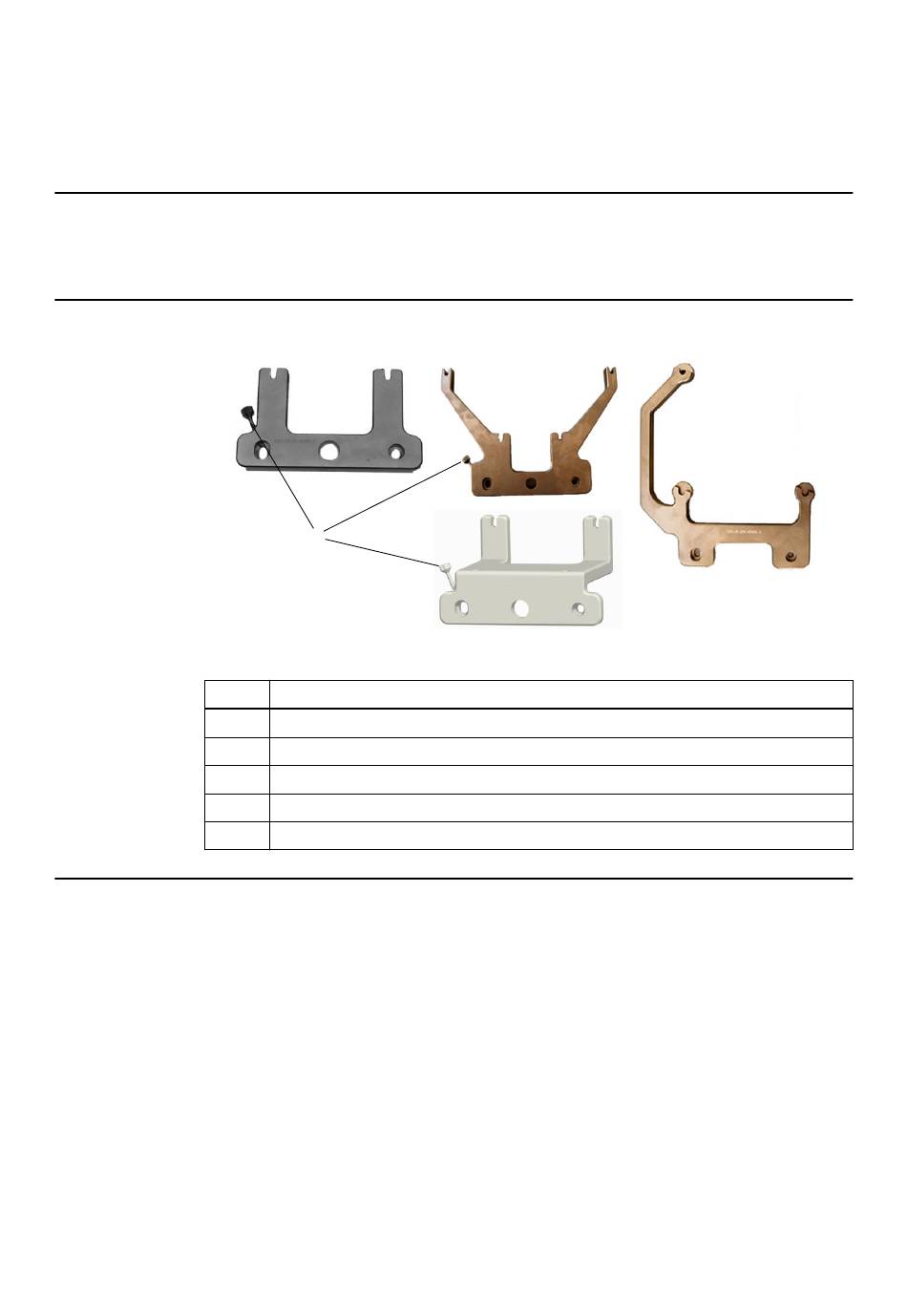

Couchmount Adapter Types
No.
Tilt Screw
The tilt ④ may only be adjusted after the mounting screws have been loosened.
NOTE: Ensure that the couchmount adapter is correctly and securely mounted to the couchmount
and cannot be unintentionally removed during treatment.
Hardware User Guide Rev. 4.9 RT / RS Stereotactic Hardware
①
④
Component
①
Couchmount Adapter for Brainlab Headring
②
Couchmount Adapter for Radionics Headring
③
Couchmount Adapter for Leksell Headring
④
Tilt screw
⑤
Couchmount Adapter Brainlab Headring (for Elekta Couch)
②
⑤
Figure 9
③
