System components (standard supply)

The PRO6 Live Audio System is modular, allowing for some variations in physical
placement and system size. The standard PRO6 touring system package is configured
as a 14U rack (containing two DL3n1 units) in a single, easily portable flight case, with
an equally portable, flight-cased control surface and minimal cabling. This package
comprises:

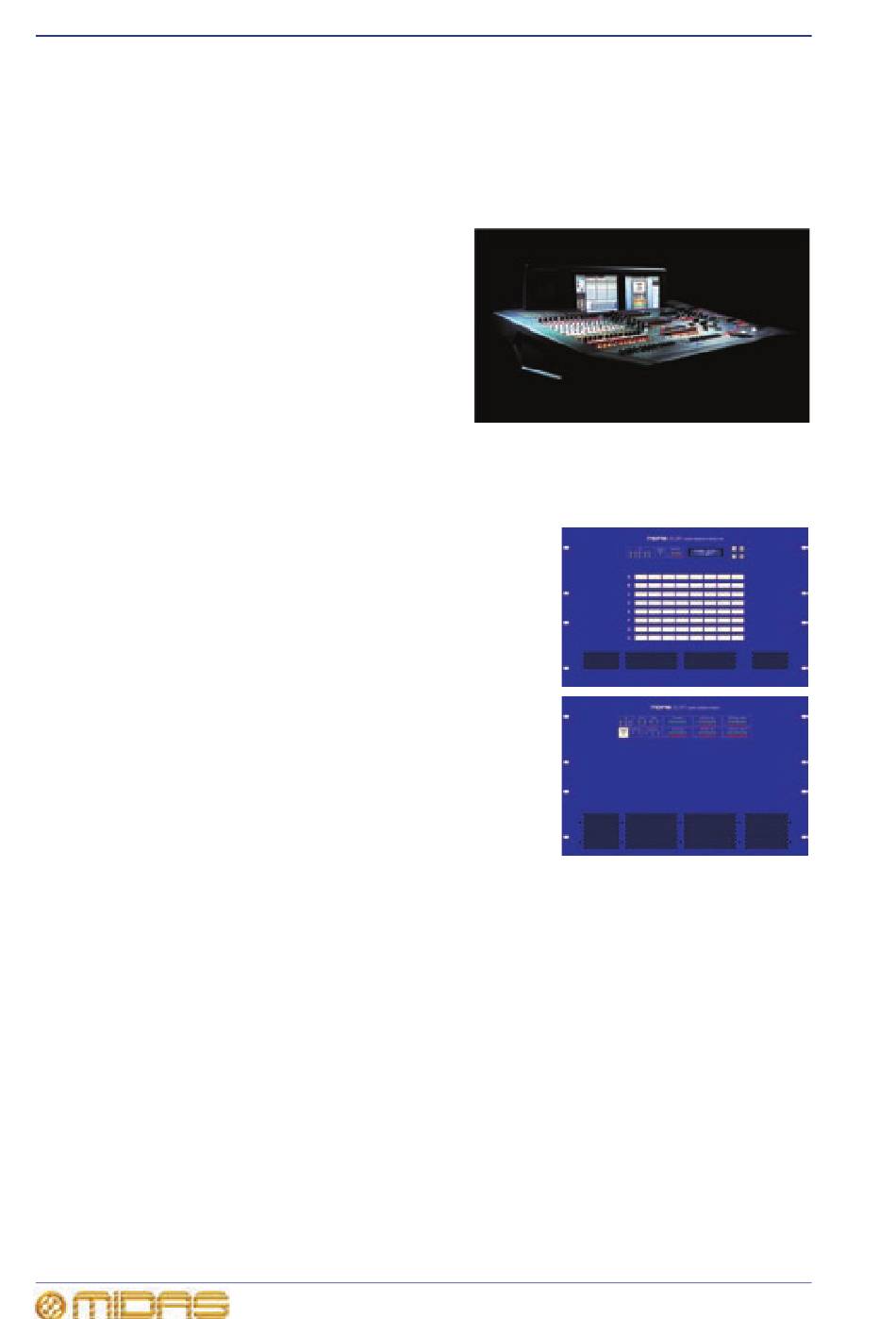

• 1-off PRO6 Control Centre (in a flight
case). Its user-configurable modular
I/O rack (rear panel) will be populated
with the following modules (from top to
bottom):
• DL443 analogue Jack I/O module,
providing eight Jack line inputs and
eight Jack line outputs.
• DL441 analogue input (mic) module,
providing eight balanced mic/line
inputs.
• DL442 analogue output module, providing eight balanced line outputs.
• 1-off main 14U rack (in a flight case), which houses:
• 1-off DL351 Modular I/O. This is populated with
seven DL441 analogue input modules (56 main
inputs) and a DL442 analogue output module.
There are a total of 56-off XLR mic/line inputs
provided on the system.
• 1-off DL371 Audio System Engine. This is
populated with five cards, the two empty slots
being blanked off. (If the optional N+1
redundant DSP module card is fitted, there will
be six cards and one empty slot.)
• 4-off interconnecting (N+1) rack Cat 5e copper
cables.
• 2-off interconnecting (dual redundant) gigabit
HyperMac Cat 5e copper cables, each 100 m long.
• 8-off mains cables.

FOH and MON

The PRO6 Live Audio System can be used as a front of house (FOH) or stage monitor
(MON) system.

System buses

The PRO6 has comprehensive system buses to suit demanding applications,
comprising:
• 6-off solo buses, routable from all locations and allowing for dual operator and 5.1
use.
• 3-off master buses, routable from the 56 inputs and eight aux inputs, and six aux
buses.
