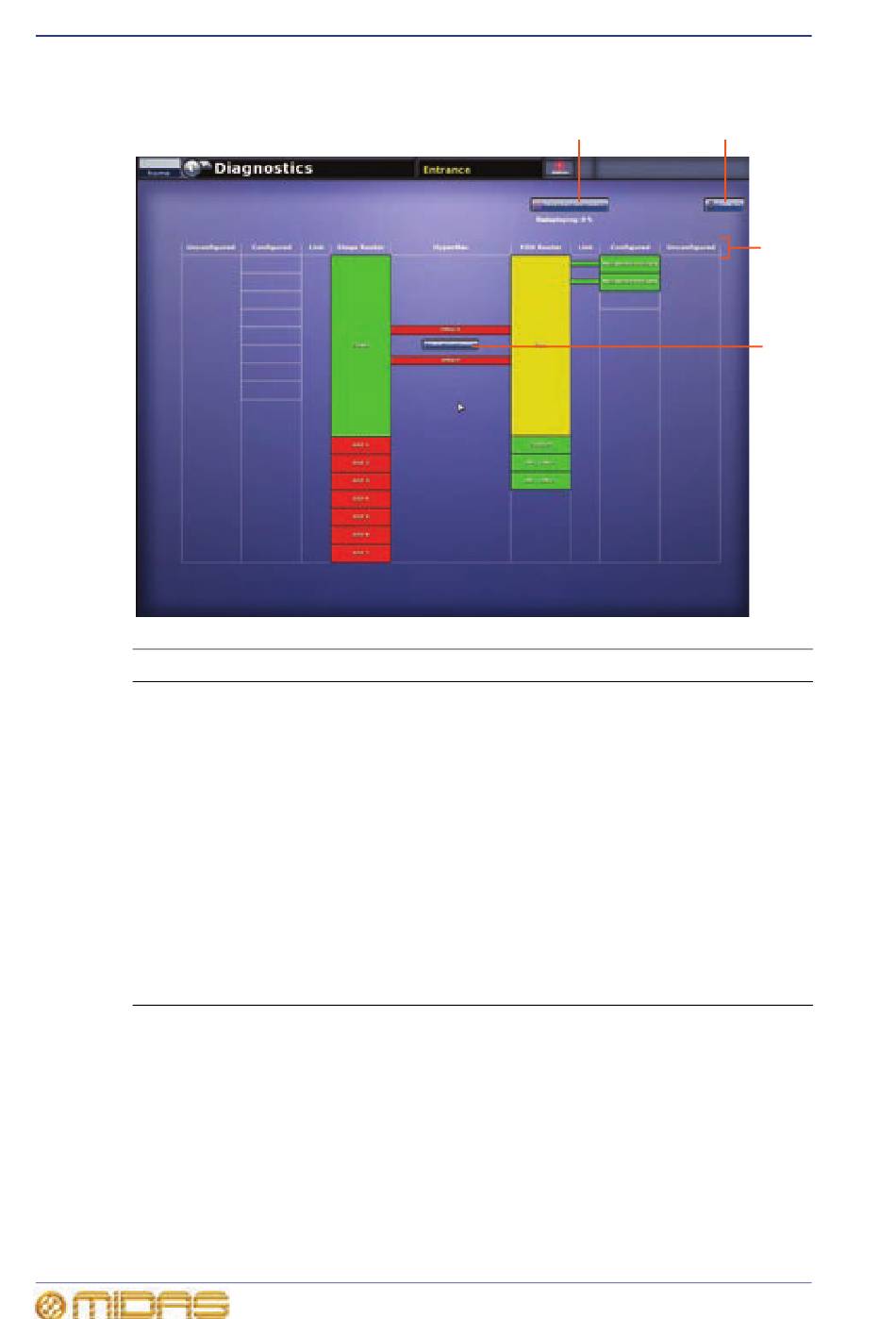

About the Diagnostics screen
Item
1
2
3
4
Element
REDEOPLOY DSP
ROLES button
CONFIG button
Column titles
SWAP
HYPERMAC
button
Appendix G: Troubleshooting
Description
Copies all files to all DSPs. This is usually done after
a software upgrade.
Opens the AES50 Device Configuration window
(see Figure 10 "The AES50 Device Configuration
window" on page 72)
The columns house the following: Unconfigured
contains any units that have not been configured
during the patching procedure; Configured contains
configured units; Link shows the router/unit
connection; Stage Router/FOH Router contains the
appropriate router and any associated rack units; and
HyperMac shows the router/router connections.
Swaps the active network from X to Y and the reverse
(see "Swapping the active network" on page 356).
