Crossfade groups

After the time offset has finished, the
crossfade will start; this will be either a down
or up crossfade, depending on the current
control level. During the crossfade, the control
level will alter at the configured rate, shown on
both the control surface and GUI. Progress is
shown in real time on the Automation screen
(typically as shown right). The blue vertical
bar in the crossfade graph will travel from left
to right according to the time elapsed and at the configured crossfade rate.
Note: The graph display shows the current longest crossfade in progress. So, if a
delayed crossfade starts during the current one, and it is longer than the current one,
the graph will change to show the new crossfade.
You can manually override the crossfade using the controls in the automation section of
the output bay (see "Manually controlling a crossfade" on page 212).

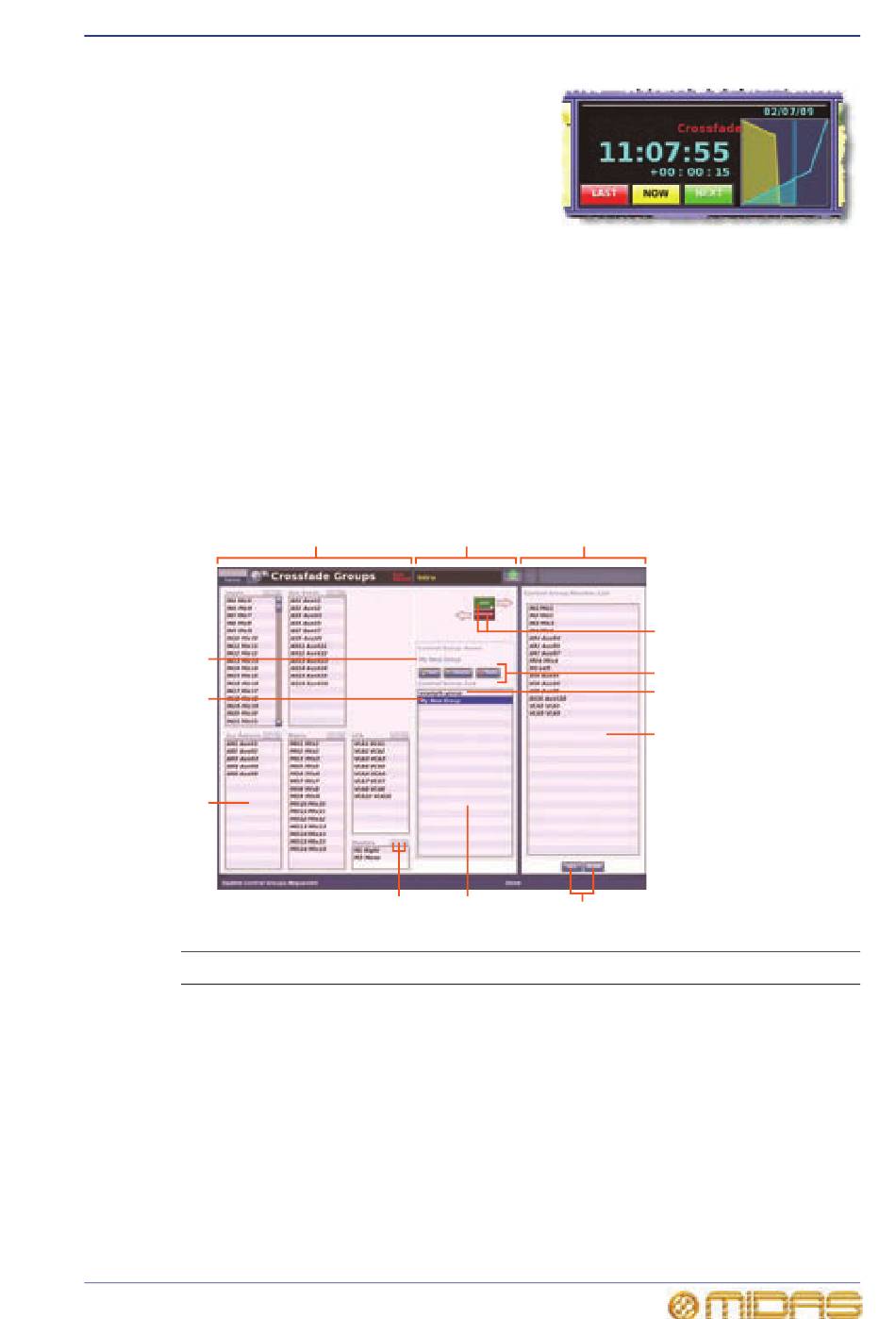

Crossfade groups
Crossfade groups let you choose which channels/buses/groups will contain the
crossfade. These groups are managed at the GUI's Crossfade Groups screen.
11
13
10
Item
1
2
3
PRO6 Live Audio System
Owner's Manual
1
9
Description
Crossfade control group member source panel. Contains panels of
channels, buses and groups from where you select the sources for your
crossfade group.
Crossfade group management section, where you can create new crossfade
groups or delete existing ones, add/remove members to/from the currently
selected group, and select the desired group from the Control Group List.
Shows the members of the currently selected crossfade group in the
Control Group Member List. The ALL and NONE buttons underneath the
list aid group member selection by selecting/deselecting all list members,
respectively.
2 3
8
7
209
4
5
6
