Chapter 28: Delay Compensation
(Latency)
A time delay is induced in a channel's signal by placing, for example, an insert or GEQ in
its path. This delay affects system latency and can also produce undesirable audio
effects. To overcome this the PRO6 incorporates a system of user-configurable delay
compensation parameters. These are presented to the user in the form of
button-selectable options on the GUI and can be switched on or off to suit the current
application.

Insert compensation

If a channel insert is active, it takes a finite amount of time for the signal to be sent
through an internal or external effect and returned to the channel. Therefore, with no
insert compensation, channels with inserts assigned are delayed more than channels
that don't have an insert assigned to them. If two correlated signals with different
delays are mixed together, this can produce comb filtering.

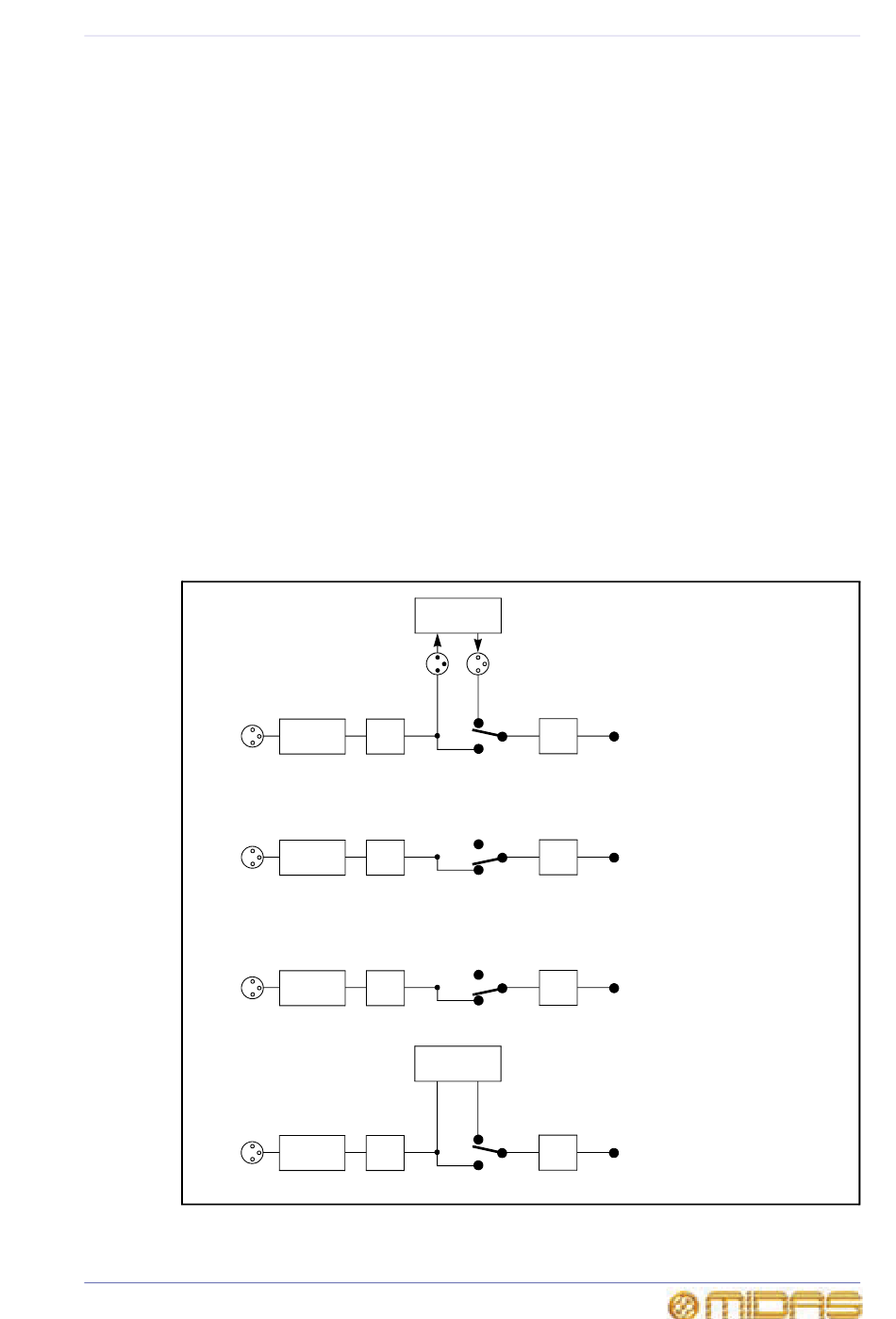

Input channel with
external insert
Input channel with no insert
and no compensation
Input channel without insert
and with compensation
Input channel with
internal insert and
with compensation
PRO6 Live Audio System
Owner's Manual
External FX
Delay PEQ/
= 0ms DYN
Delay PEQ/
= 0ms DYN
Delay PEQ/
= 1.09ms DYN
Internal FX
Delay PEQ/
= 0.33ms DYN
Delay through
D/A and A/D = 1.11ms
Analogue input XLR to
DYN/
PEQ input channel output = 2.2ms
Analogue input XLR to
DYN/
PEQ
input channel output = 1.08ms
Analogue input XLR to
DYN/
PEQ input channel output = 2.2ms
Delay through
internal FX = 0.7ms
Analogue input XLR to
DYN/
PEQ
input channel output = 2.2ms
