Insert

Input channel insert section provides a send and return out of the signal path, primarily
so that an effects device can be added to the signal's processing. The send destination
and return source may only be set from the GUI screen, although the INS switch can
be found on both the GUI and also in each input fast strip. This section is optional and
assigned on a channel-by-channel basis.

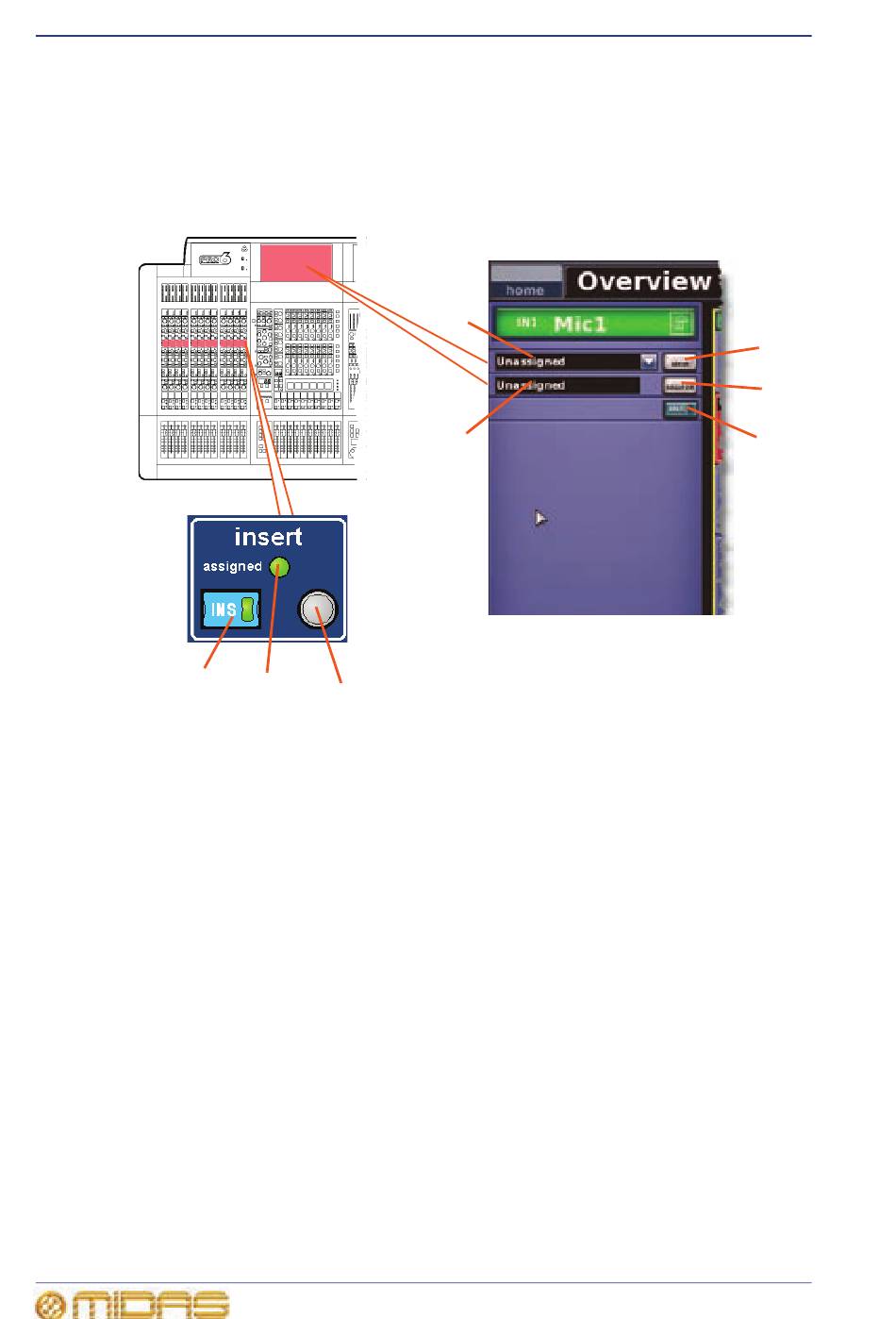

1
1
INS switch, connects (inserts) returned
programme material to the channel signal
path, provided both the insert send and insert
return points haves been assigned.
2
insert return field, shows you the source
of the insert return.
3
insert send field, has a drop-down list,
which shows the destination(s) of the insert
send.
5
4
Chapter 30: Inputs
3
2
4
Quick access button, selects the local
input channel and assigns the channel's insert
processing area to the GUI channel strip.
5
Green assign LED, illuminates to show
that an insert return point is patched.
6
dest button, opens the Patching screen
from where you can select the destination of
the insert send.
7
source button, opens the Patching
screen from where you can select the source of
the insert return.
6
7
