Configuring the devices
About the configuration window

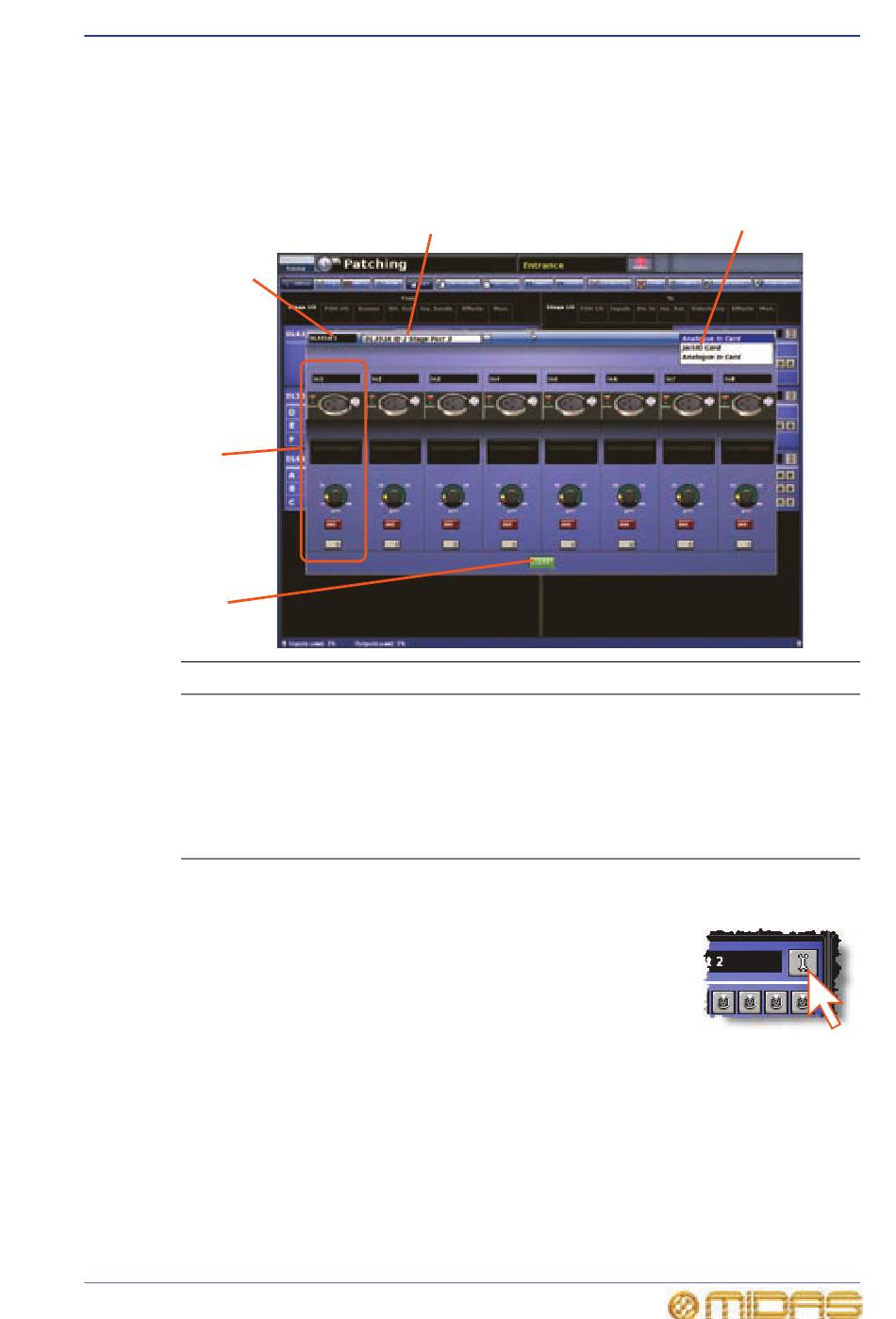

The configuration window, which has a similar format for each device, comprises eight
channel panels and drop-down lists for channel range/card selection. A typical Line I/O
configuration window is used in the following diagram to show the elements that are
common to each device.
1
5
4
Item
1
2
3
4
5
>> To open the configuration window of a device
Click the device's spanner button.
>> To set up/change the configuration of an I/O device
1
Open the configuration window of the I/O device you want to configure (see
above).
PRO6 Live Audio System
Owner's Manual
2
Description
Device ID field, contains the device type and number.
Device drop-down list, for device selection. (Diagram shows the drop-down
list selected.)
Channel range/card selection list.
CLOSE button, closes the configuration window.
Channel panel, contains device-specific controls and graphics.
