Output channel areas on the control surface

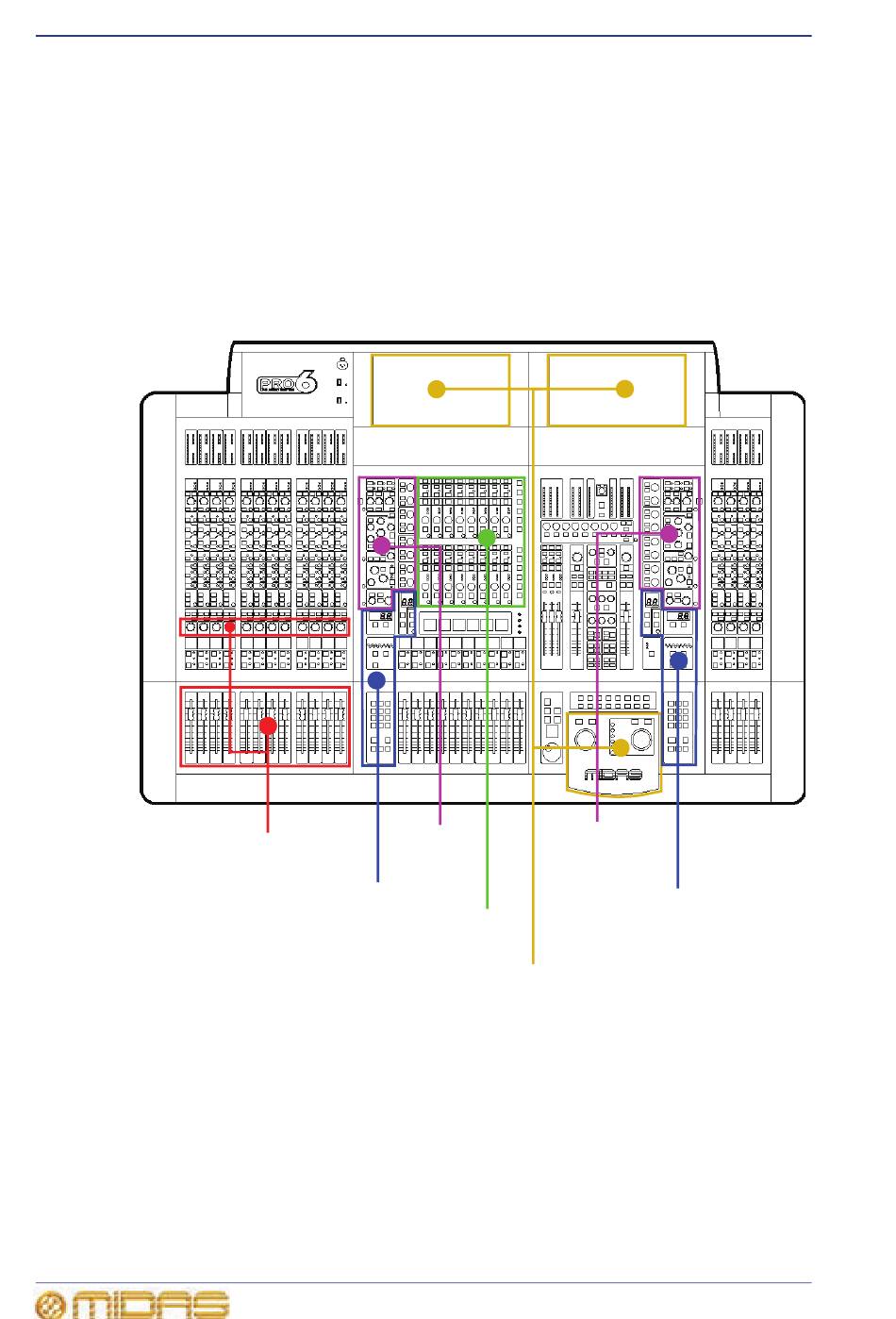

The mix and master bays house the areas on the control surface pertaining to the
outputs (see diagram below).
The mix bay houses the output fast zone, which contains two banks of output fast
strips. This bay also contains a channel strip, mix (sends) section and navigation area,
which are replicated on the master bay.
The GUI has a similar configuration to the control surface, whereby the GUI screen in
the mix bay has an output fast zone, and both GUI screens have a channel strip.
In general, operation of the outputs is via the mix bay, although this is configuration
dependent.
Pan and fader 'flip'
Navigation area
(mix bay)
Channel strip
Channel strip
and mixes
and mixes
(master bay)
(mix bay)
Output fast
zone
GUI control areas
Chapter 31: Outputs
Input fast zone
(4-channel bay)
Navigation area
(master bay)
