Rear panel connections
snake X and snake Y sections
This section houses the 'snake' ports that connect the PRO6 to the stage.

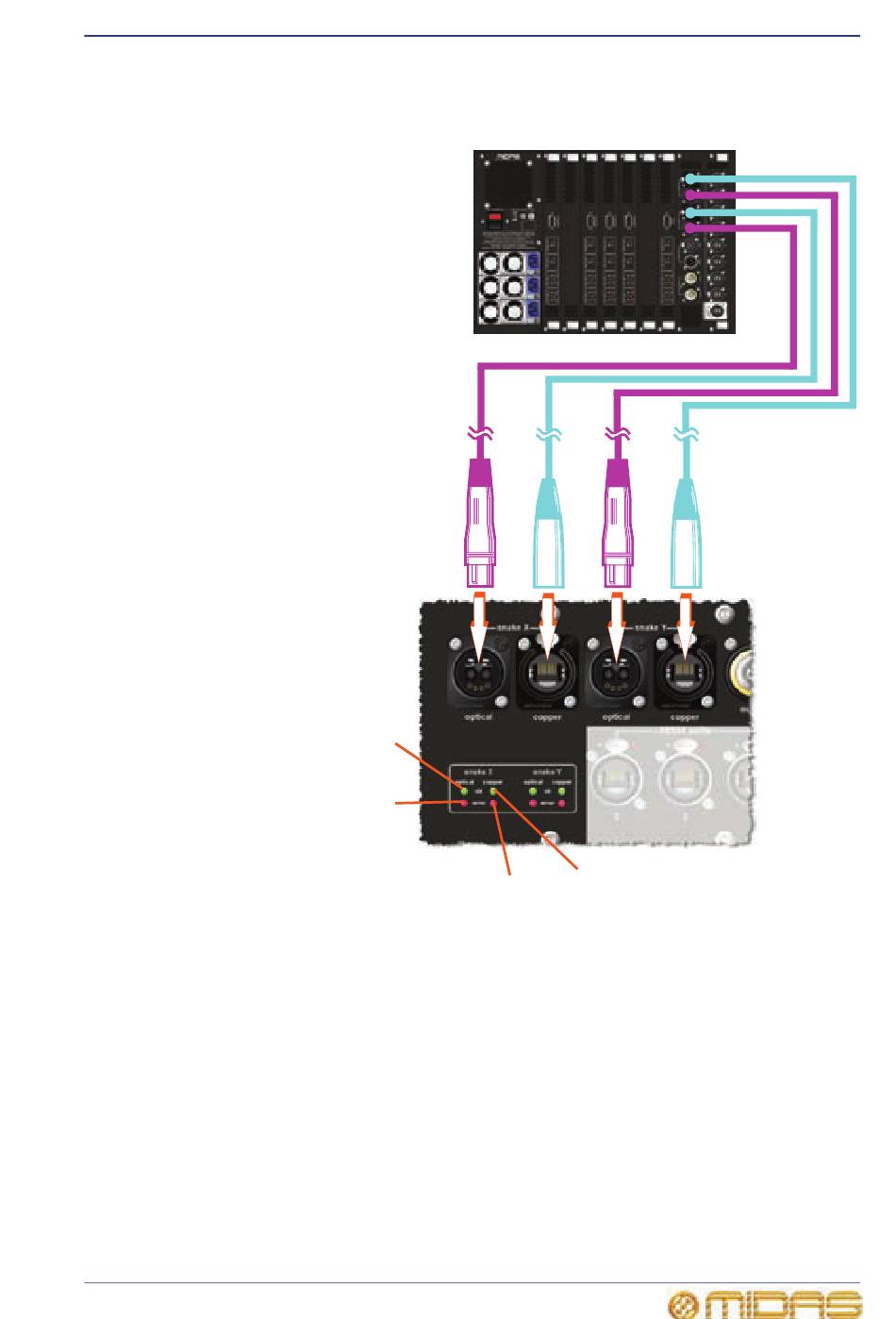

Rear panel of PRO6
1
Fibre optic 'snake' (cable) connectors,
with OpticalCon® sockets. These are
HyperMac, 192-wide, bi-directional digital
audio ports.
2
Copper 'snake' (cable), with EtherCon®
connectors. These are Gigabit, HyperMac,
192-wide, bi-directional digital audio ports.
PRO6 Live Audio System
Owner's Manual
Rear of DL371 DSP unit
1
3
4
1
2
2
3
4
3
ok LED (green) for both the
optical/copper X and Y snakes. Pulsates when
the link is synchronised between the router
and end point.
4
error LED (red) for both the
optical/copper X and Y snakes. Illuminates
when either no communications or a fault are
detected.
