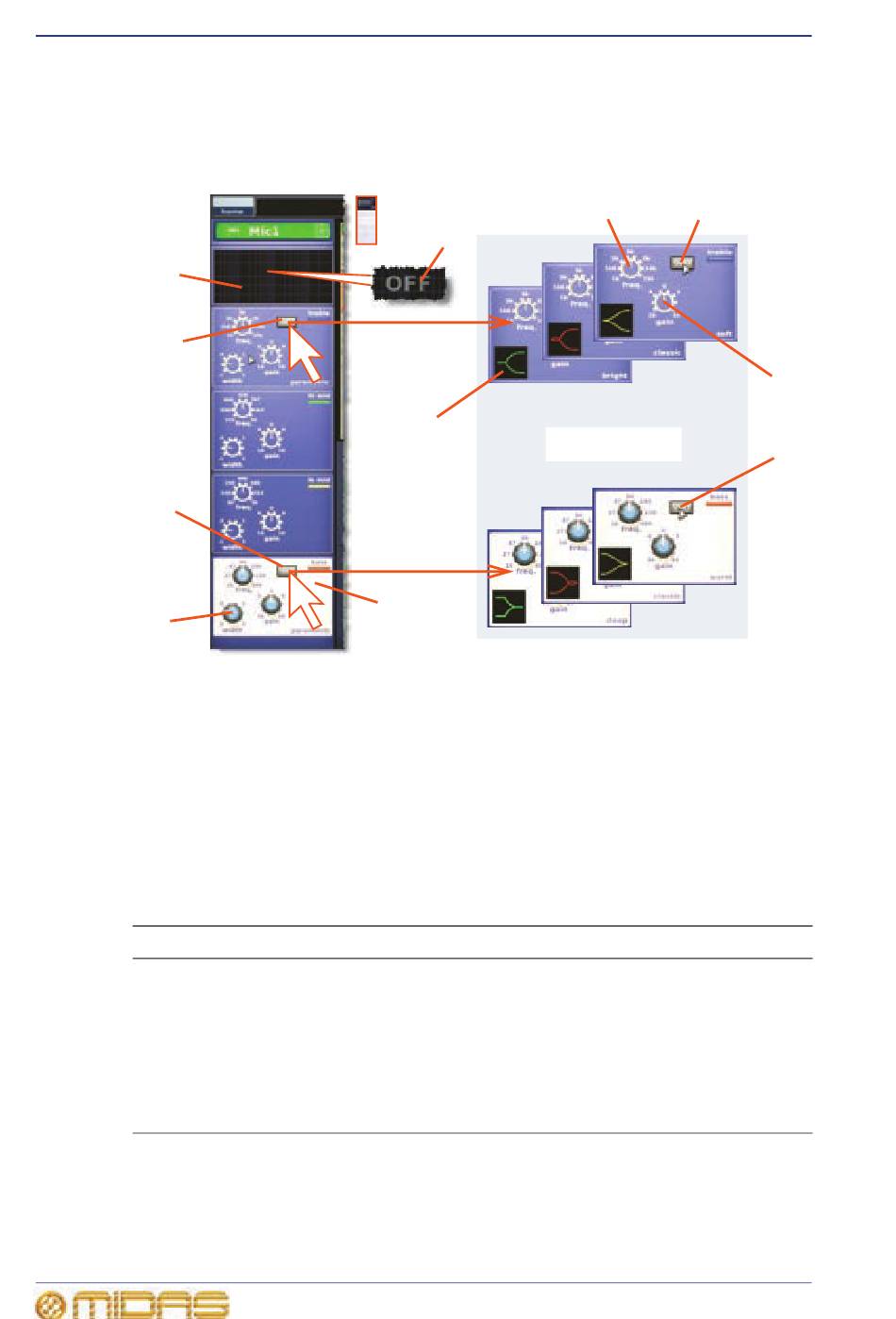

In the GUI channel strip, the EQ processing area (shown below) displays all four bands
simultaneously and has a graph that shows a colour-coded EQ envelope for each
selected band. Here, you can view the settings of the four bands simultaneously. The
GUI also shows the ranges available for each control knob and indicates the active
band, which is distinguished by its cream-coloured background.
10
9
9
7
10
Graph of EQ envelope (see "EQ graph" on
page 277).
11
Highlighted section indicates active band.
12
Icon representing the shape of the
signal's envelope; note how the treble modes
point to the left and the bass ones to the right.
The following table illustrates the recommended uses of the treble and bass shelving
modes.
Table 16: Recommended band mode usage
Band
Treble
Treble
Treble
Bass
Bass
Bass
12
11
Mode Best
Bright On single source material
Classic All round EQ
Soft For gentle shaping of pre-mixed material
Deep On single source material
Classic All round EQ
Warm For gentle shaping of pre-mixed material
8
13
Treble and bass
shelving modes
13
"OFF" is displayed when the EQ is
switched off.
