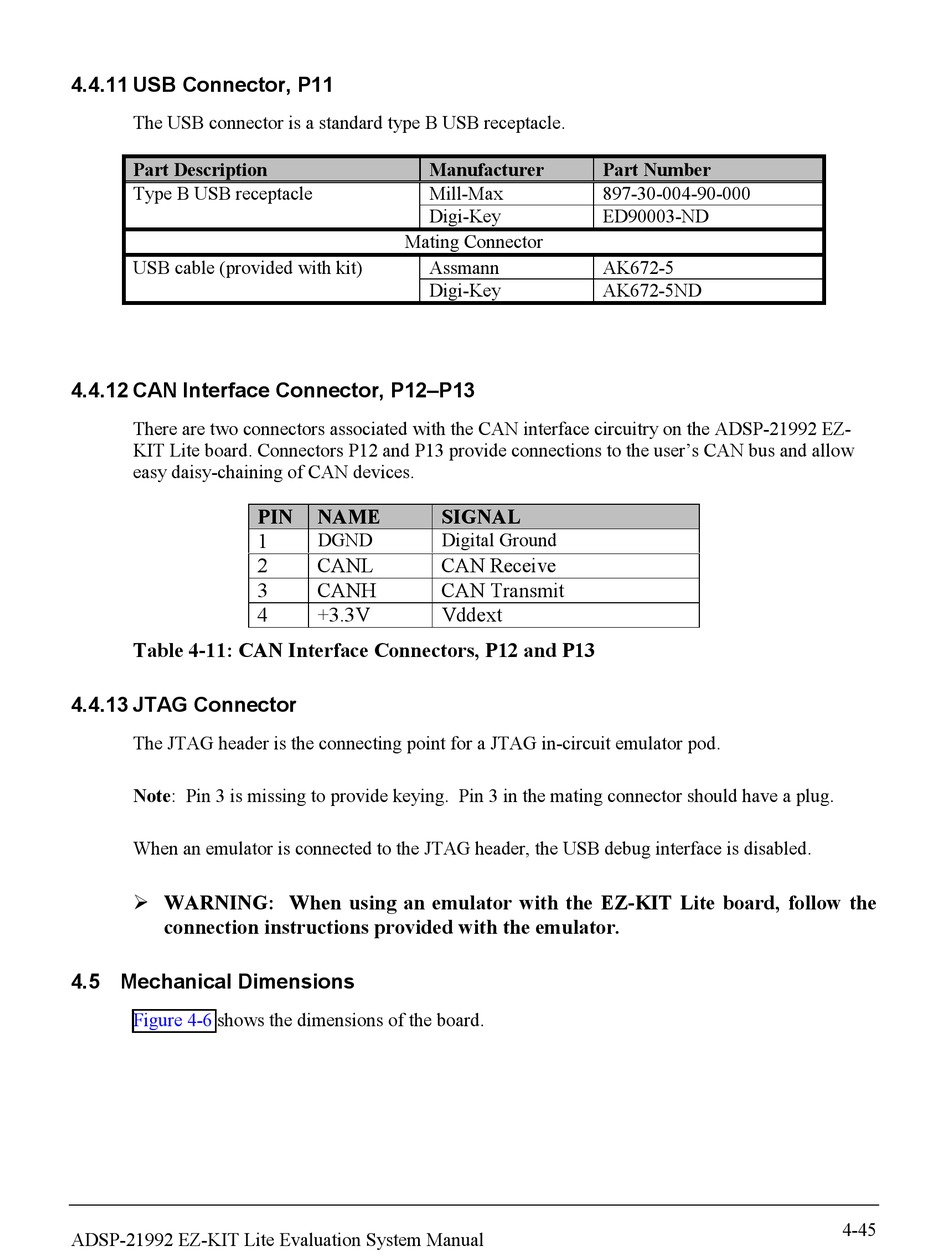

4.4.11 USB Connector, P11
The USB connector is a standard type B USB receptacle.
Part Description
Type B USB receptacle
USB cable (provided with kit)
4.4.12 CAN Interface Connector, P12–P13
There are two connectors associated with the CAN interface circuitry on the ADSP-21992 EZ-
KIT Lite board. Connectors P12 and P13 provide connections to the user's CAN bus and allow
easy daisy-chaining of CAN devices.
Table 4-11: CAN Interface Connectors, P12 and P13
4.4.13 JTAG Connector
The JTAG header is the connecting point for a JTAG in-circuit emulator pod.
Note: Pin 3 is missing to provide keying. Pin 3 in the mating connector should have a plug.
When an emulator is connected to the JTAG header, the USB debug interface is disabled.
! WARNING: When using an emulator with the EZ-KIT Lite board, follow the
connection instructions provided with the emulator.
4.5 Mechanical Dimensions
Figure 4-6
shows the dimensions of the board.
ADSP-21992 EZ-KIT Lite Evaluation System Manual
Manufacturer
Mill-Max
Digi-Key
Mating Connector
Assmann
Digi-Key
PIN
NAME
1
DGND
2
CANL
3
CANH
4
+3.3V
Part Number
897-30-004-90-000
ED90003-ND
AK672-5
AK672-5ND
SIGNAL
Digital Ground
CAN Receive
CAN Transmit
Vddext
4-45
