4.6.2 Mechanical Dimensions

The following figure shows the location of the mounting holes as well as pin 1 of
each of the expansion connectors.
5.000
4.750
3.875
2.500
1.125
0.250
0.000
ADSP-21160 EZ-KIT Lite Evaluation System Manual
3.750
1.300

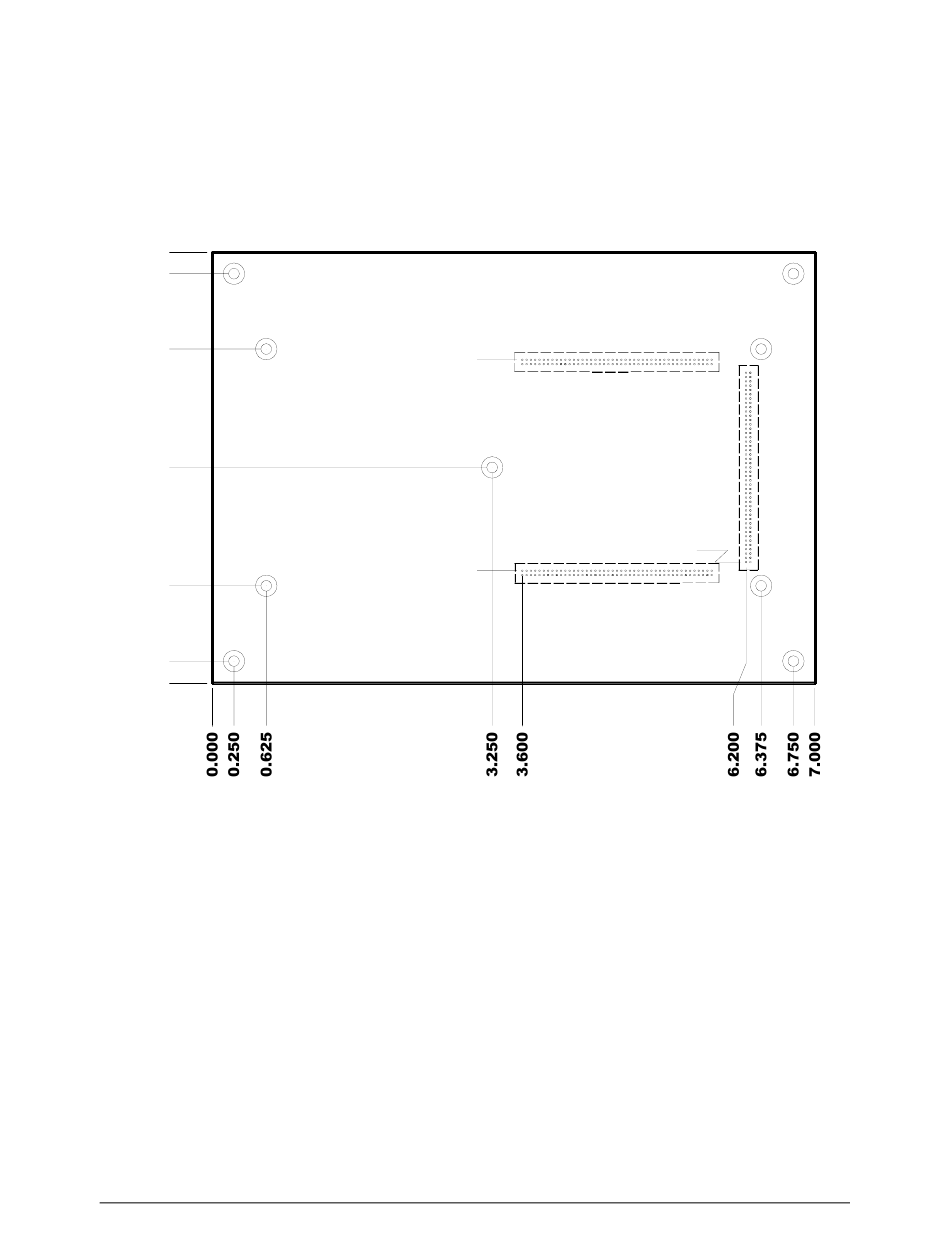

Figure 4-6: Mechanical Drawing

P1
P2
1.400
P3
4-39
