Sleep timer
The Sleep Timer determines how long the panel is inactive before it enters sleep mode, when
the screen goes dark to save power.
To deactivate the sleep timer, click
the sleep timer, ensure the function is activated by clicking
Set the time (in minutes) by pressing the up and down arrows until the required time appears in
the gray box. Alternatively, place your finger in the list box and slide it up to increase the time or
down to decrease the time. The timer range is from 1-120 minutes.
Display timer
The Display Timer determines how long the panel is inactive before the output sync is
disconnected.
To deactivate the display timer, click
set the display timer, ensure the function is activated by clicking
Set the time (in minutes) by pressing the up and down arrows until the required time appears in
the gray box. Alternatively, place your finger in the list box and slide it up to increase the time or
down to decrease the time. The timer range is from 1-120 minutes.
NOTES:
•
When the sleep timer is used to deactivate the screen, the screen goes dark, which
provides partial energy savings. The screen reactivates quickly when it is touched.
•
When the display timer is used to deactivate the screen, the screen switches off,
which provides better energy savings but the screen takes longer to reactivate
when it is touched.
Test patterns
The TLI Pro 101 provides eight test patterns, which can be used to
calibrate the third-party touchpanel display. Click the
open the test pattern menu.
Color Bars Crosshatch
Ramp Alt Pixels
When pattern is open:
Swipe screen for next pattern.
Tap screen to exit.

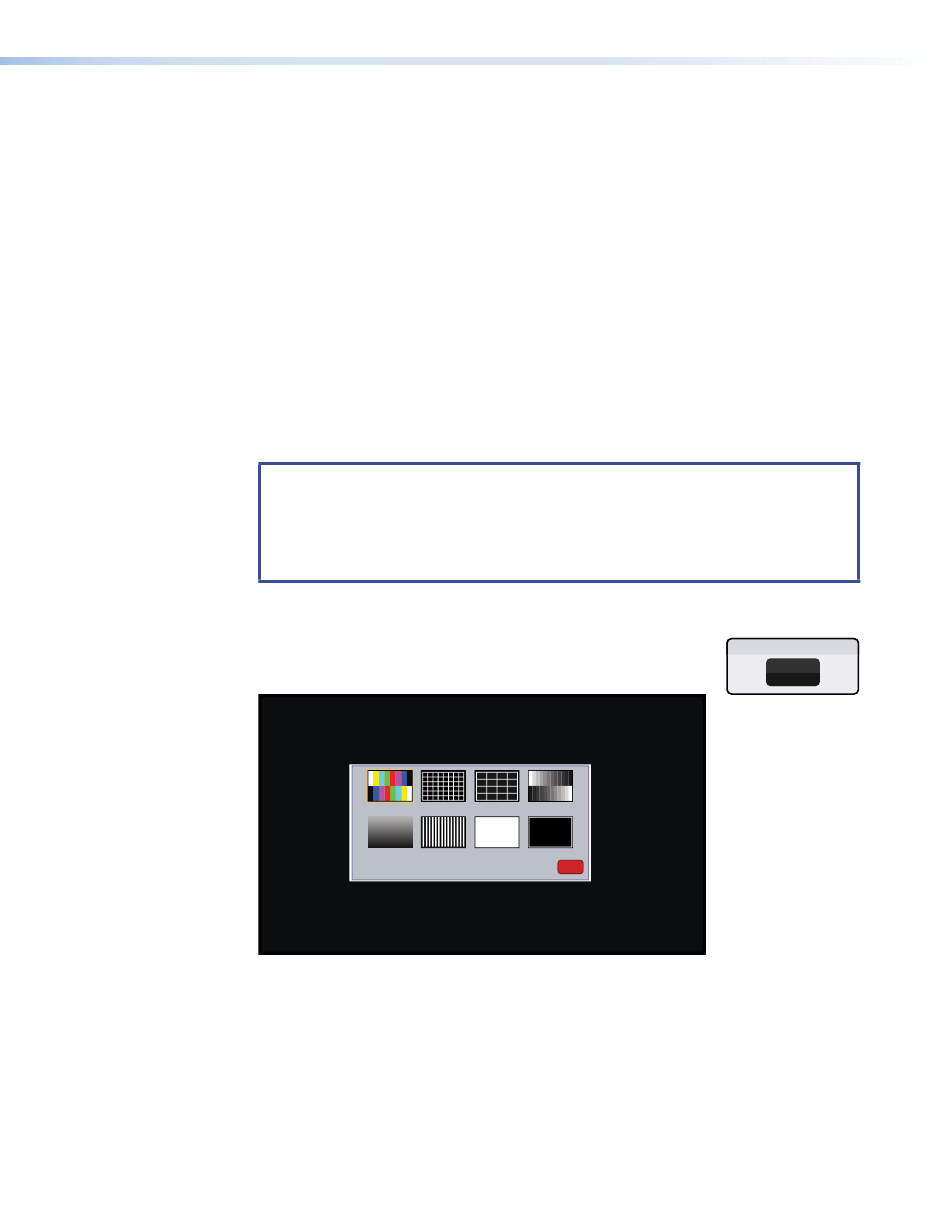

Figure 12. Test Pattern Menu
1. Select the test pattern you need by pressing the icon.
2. Swipe the screen from left to right to show the previous test pattern or swipe the screen
from right to left to show the next test pattern.
3. Touch any part of the screen to show the menu box.
4. Click to close the
Exit Test Patterns
. The controls for the Sleep Timer are grayed out. To set
Off
.
On
Off . The controls for the Display Timer are grayed out. To
button to
Show
Crosshatch 4x4 Grayscale
White Field Crop
Exit
dialog and return to the
TLI Pro 101 • On-screen Menus
.
On
Test Pattern
Show
window.
Output
