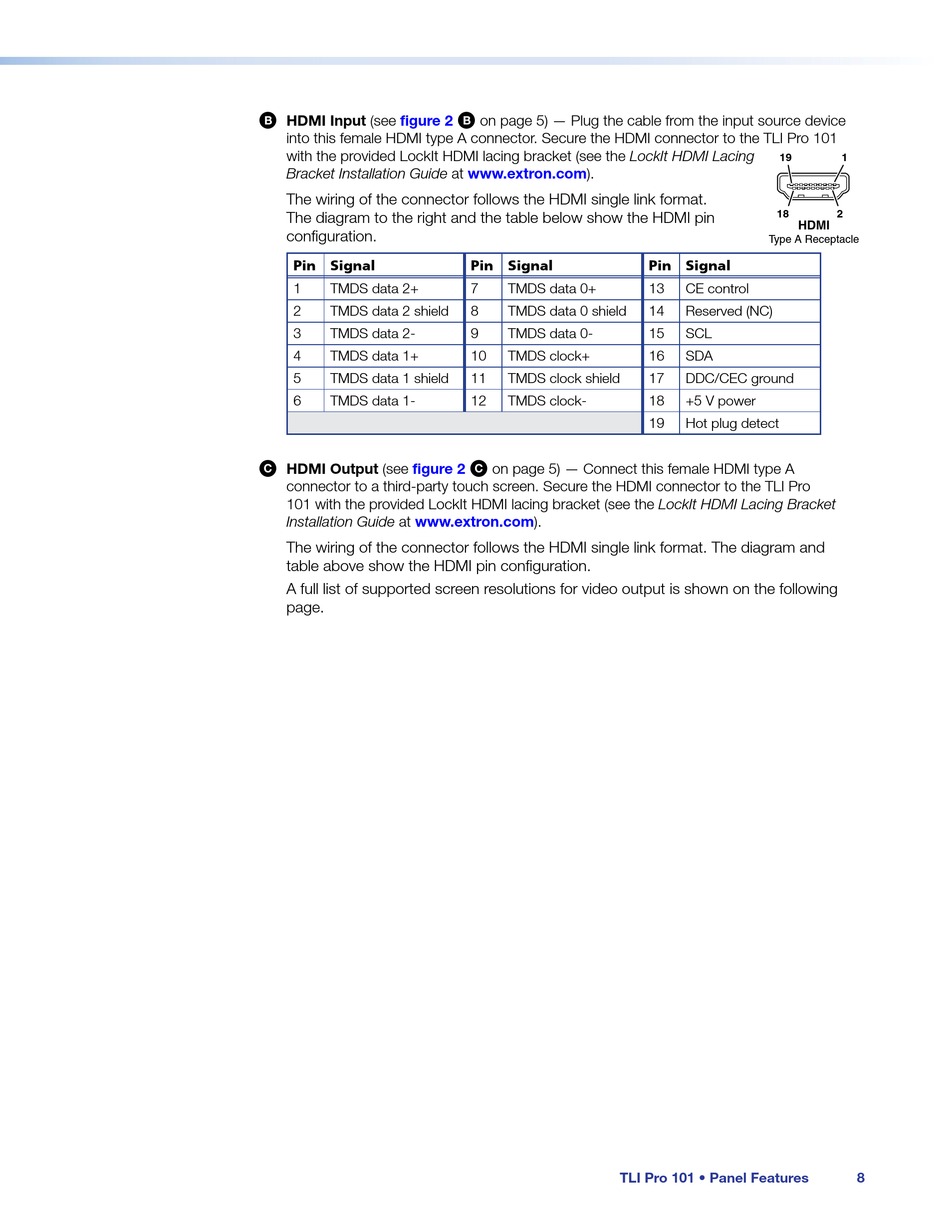

Extron electronics TouchLink TLI Pro 101 User Manual page 15

HDMI Input (see figure 2
B
into this female HDMI type A connector. Secure the HDMI connector to the TLI Pro 101
with the provided LockIt HDMI lacing bracket (see the LockIt HDMI Lacing
Bracket Installation Guide at www.extron.com).
The wiring of the connector follows the HDMI single link format.
The diagram to the right and the table below show the HDMI pin
configuration.
Pin Signal
1 TMDS data 2+
2 TMDS data 2 shield
3 TMDS data 2-
4 TMDS data 1+
5 TMDS data 1 shield
6 TMDS data 1-
HDMI Output (see figure 2
C
connector to a third-party touch screen. Secure the HDMI connector to the TLI Pro
101 with the provided LockIt HDMI lacing bracket (see the LockIt HDMI Lacing Bracket
Installation Guide at www.extron.com).
The wiring of the connector follows the HDMI single link format. The diagram and
table above show the HDMI pin configuration.
A full list of supported screen resolutions for video output is shown on the following
page.
on page 5) — Plug the cable from the input source device
B
Pin Signal
7 TMDS data 0+
8 TMDS data 0 shield
9 TMDS data 0-
10 TMDS clock+
11 TMDS clock shield
12 TMDS clock-
on page 5) — Connect this female HDMI type A
C
TLI Pro 101 • Panel Features
19
18
HDMI
Type A Receptacle
Pin Signal
13 CE control
14 Reserved (NC)
15 SCL
16 SDA
17 DDC/CEC ground
18 +5 V power
19 Hot plug detect
1
2
8
