2 Installation

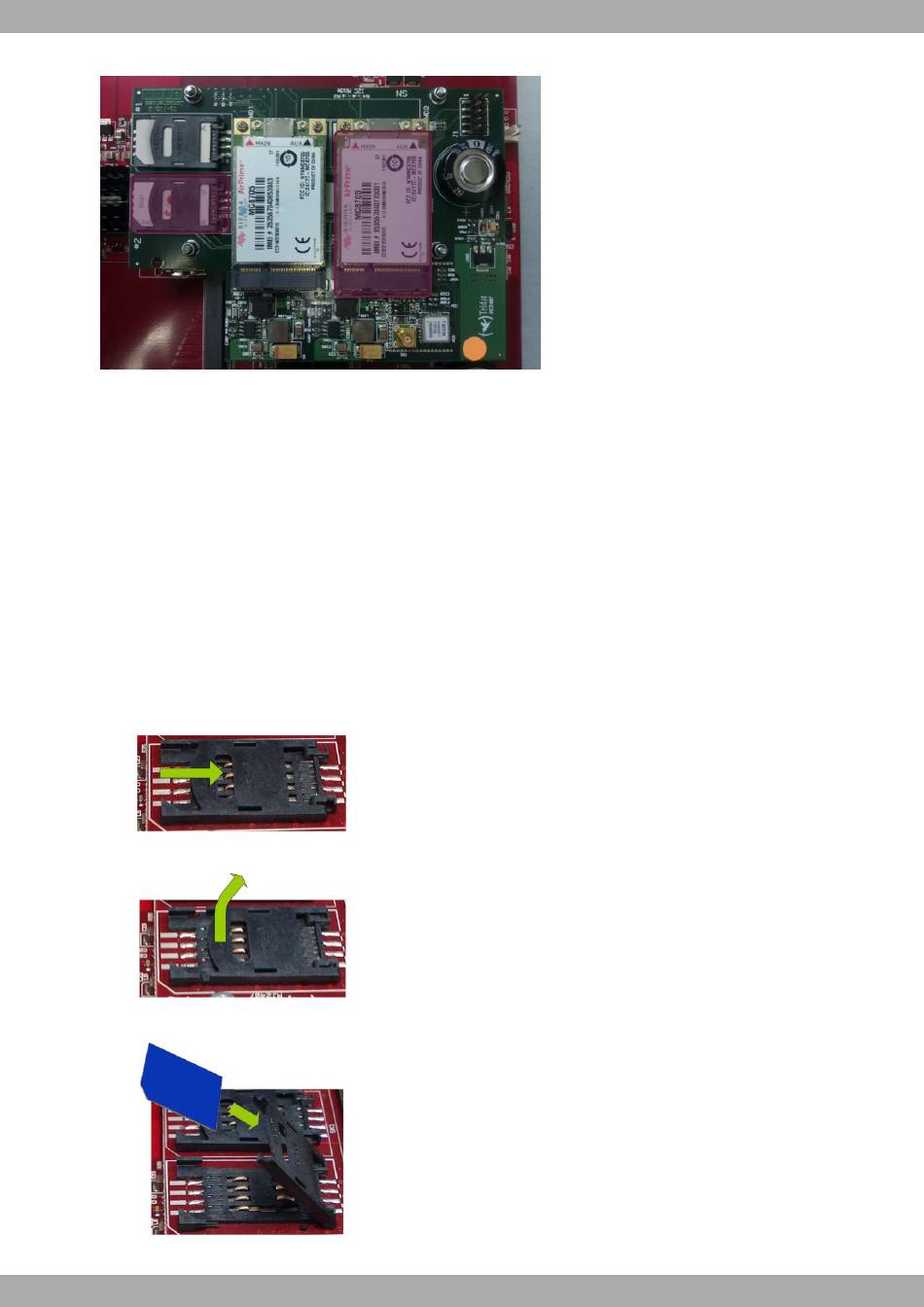

SIM tray #2 for MD2 Module
Fig. 10:
When there are two modules installed, the SIMs' tray assignment is set and is as follows:
In devices where a single WWAN module is installed (MD1), if only one SIM card is going to be used, it can be inser-
ted in either SIM tray (#1 or #2). However, you must remember to configure the router correctly so it selects the ap-
propriate tray.

2.2.2 Installing the SIM

In order to insert a SIM card in the internal tray, locate the retaining flange (metal fastening with OPEN and LOCK on
it) so you can open the tray and place the SIM card on it. The steps are as follows:
(1) Push the fastening to the right (OPEN) until the tray is released.
(2) Open the upper part of the tray.
(3) Fully insert the SIM card using the guides.
10
• Module MD1 for SIM #1
• Module MD2 for SIM #2
• Module MD1 # SIM #1 (default) or SIM #2
