Sensor 2.0; Stage 1 - ETC Sensor3 CEM3 User Manual

Sensor 2.0

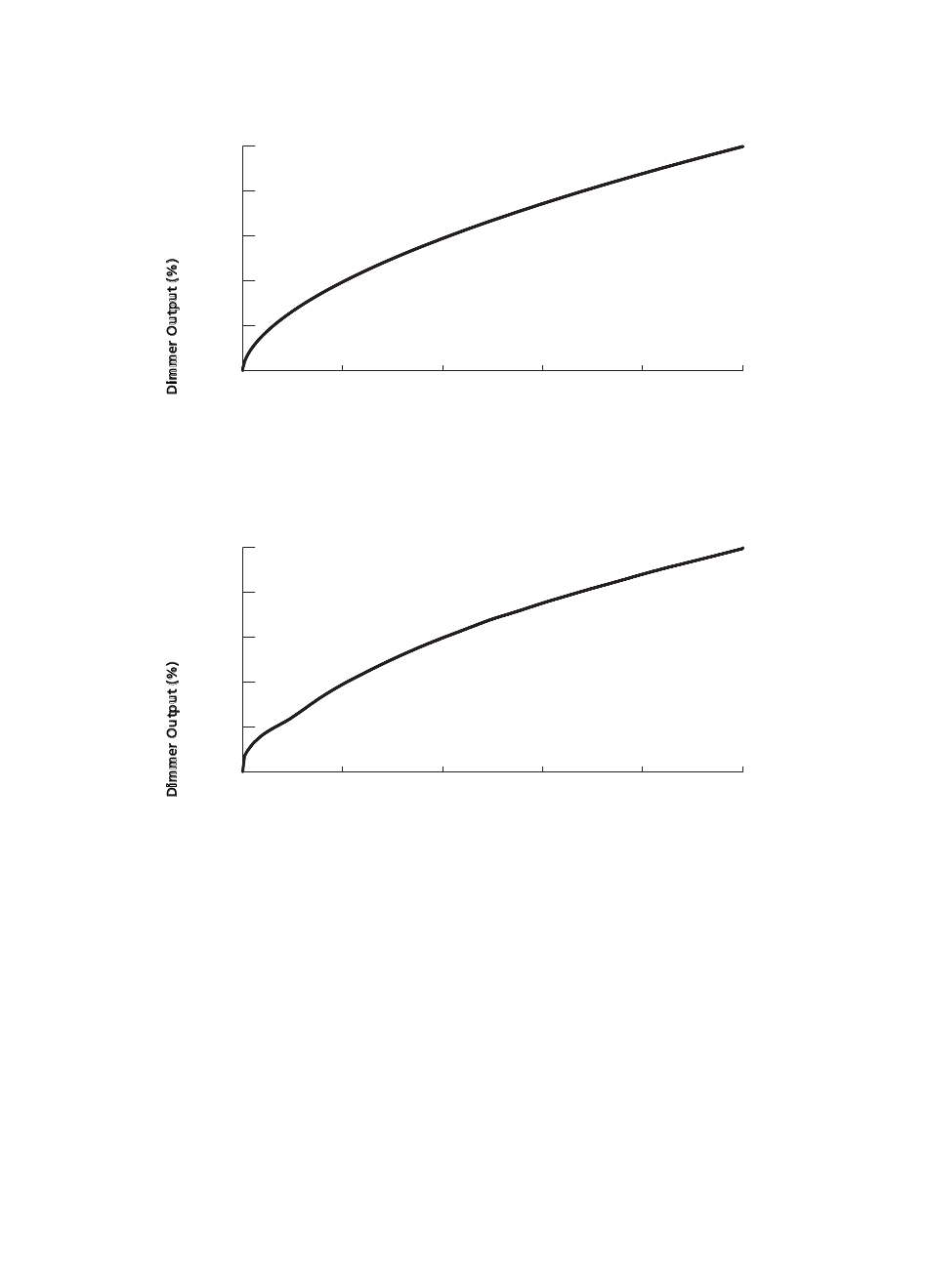

The Sensor 2.0 curve is the previous version of the ETC modified square law curve. It provides
backwards compatibility for shows created using earlier versions of ETC equipment and familiar
response for designers who prefer the earlier version.
100
80
60
40
20
0

Stage 1

This curve matches the stage curve of the Transtechnik PM90 dimming system.
100
80
60
40
20
0
System Reference
0 20
Control Input (%)
0 20
Control Input (%)
40 60
40 60
80 100
80 100
