The CEM+ has an Ethernet data input for incoming EDMX and sACN data and two DMX512 input
ports (Port A and Port B). DMX Port B can be used as a DMX output port for one universe of DMX on
the last logical rack in the Group. Data management is determined in the Group configuration.

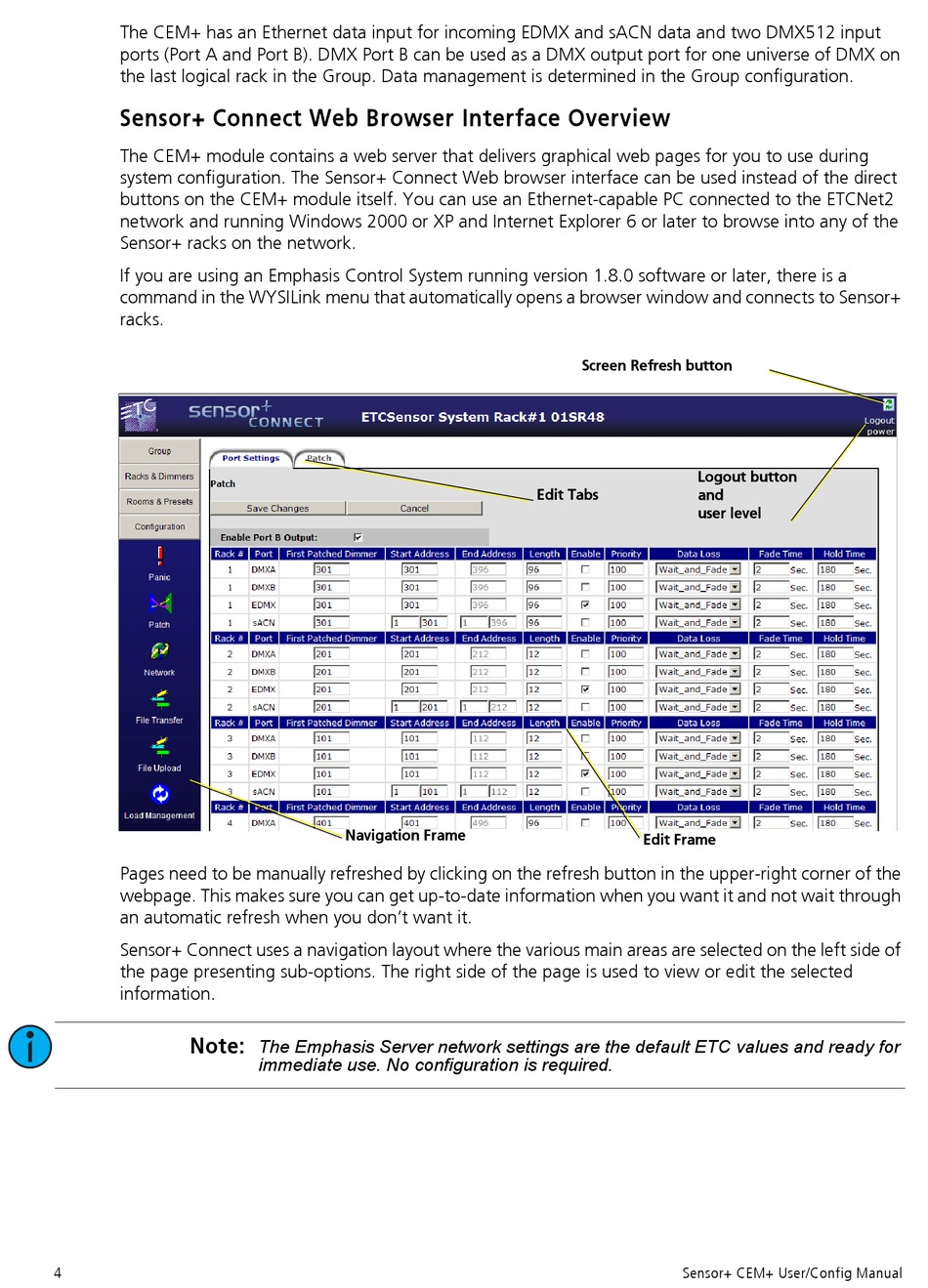

Sensor+ Connect Web Browser Interface Overview

The CEM+ module contains a web server that delivers graphical web pages for you to use during
system configuration. The Sensor+ Connect Web browser interface can be used instead of the direct
buttons on the CEM+ module itself. You can use an Ethernet-capable PC connected to the ETCNet2
network and running Windows 2000 or XP and Internet Explorer 6 or later to browse into any of the
Sensor+ racks on the network.
If you are using an Emphasis Control System running version 1.8.0 software or later, there is a
command in the WYSILink menu that automatically opens a browser window and connects to Sensor+
racks.
Pages need to be manually refreshed by clicking on the refresh button in the upper-right corner of the
webpage. This makes sure you can get up-to-date information when you want it and not wait through
an automatic refresh when you don't want it.
Sensor+ Connect uses a navigation layout where the various main areas are selected on the left side of
the page presenting sub-options. The right side of the page is used to view or edit the selected
information.
Note:
4
Navigation Frame
The Emphasis Server network settings are the default ETC values and ready for
immediate use. No configuration is required.
Screen Refresh button
Logout button
Edit Tabs and
user level
Edit Frame
