- Page 1 Sensor3 Sensor Enclosure (SR and HSR Series) CEM to CEM3 Retrofit Manual Part Number: 7141M2310 Rev: E Released: 2020-11...
- Page 2 T o v ie w a l i s t o f E TC tr ad e ma rk s a n d pa t en t s , g o t o etcconnect.com/ip. All other tr a d em ar ks, bot h m a r k e d a n d n o t m a r k e d , a r e t he p r o p er ty of the i r re spect i ve owner s .
-
Page 3: Overview Of This Manual

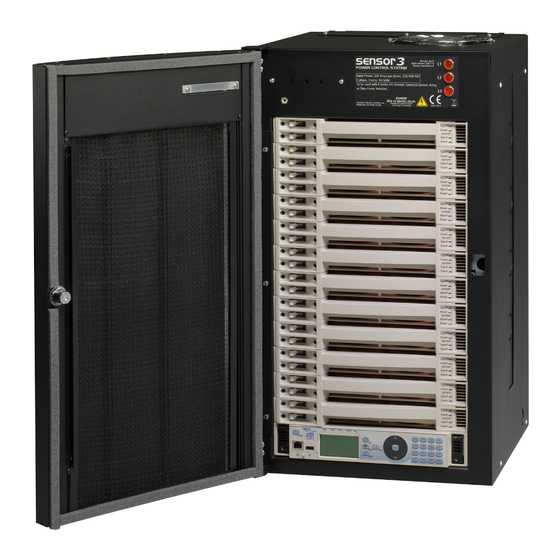

Introduction This manual is intended to guide ETC Service Technicians through the process of upgrading existing Sensor enclosure installations to Sensor3 enclosures with a CEM3 control module. This manual covers SR or HSR 6, 12, 24, and 48 enclosures. Overview of this Manual Preparation (page 5) •... -
Page 4: Help From Etc Technical Services
Help from ETC Technical Services If you are having difficulties, and your problem is not addressed by this document, try the ETC support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below. - Page 5 24, or 48) to become a Sensor3 enclosure with a CEM3 control module. Each part is listed to reflect the different quantities for the different kits and types of enclosures. Parts/Components SR Enclosure HSR Enclosure ETC Part Number 7141K1001 7141K1003 8-pin Screw Terminal Data Connector J3407-F Ribbon Cable Clamp 1 X 1 White...
- Page 6 Sensor3 AF Card (Optional) up to 4* 7150B5623 * The need for these cards and the required quantity are based on specific enclosure type. For details contact Help from ETC Technical Services page 2 ETC Technical Services (see Required Tools...
- Page 7 Adaptor) if you want to download and save the current Sensor configuration out of the enclosures for later reference. For Help from ETC Technical Services information on this process contact ETC Technical Services (see page 2 WARNING: RISK OF ELECTRIC SHOCK! Enclosures without an accessible power disconnect device cannot be serviced safely.
- Page 8 Remove the Old CEM Mark the edge connector of each dimmer output ribbon cable (1, 2, 3, and 4) as illustrated below in the hexagons. There may be stickers on the ribbon cables already; however, these may refer to cable length and not dimmer outputs. They should not be used as a reference for these instructions.
- Page 9 Note: If the power edge connector is damaged, the power harness will have to be replaced. Contact ETC to obtain a replacement CEM3 harness. Unscrew the backplane metal from the enclosure. (There are two screws total—one screw in the upper corner of each side.) Discard these screws. Replacement screws with thread locker are provided (ETC part# HW377) for later use.
- Page 10 One is for stranded wire as found in Belden 9729 and contains screw terminals (ETC part# J3407-F included with the kits). The other style is an IDC connector (ETC part# J3409-F must be ordered separately) for solid-core wire such as Category 5 cabling.
- Page 11 Using the permanent marker, mark “A” on both ends of the DMX connector. Disconnect the DMXB wires terminal 3, 9, and 10 of the J2 connector. Connect the DMXB wires to another 8-pin connector using a precision 3/32” (2.5 mm) flat-blade screwdriver.
- Page 12 Attach new power harness Clip the first zip tie, attaching the power harness to the enclosure, behind the existing J1 power connector to give the harness more room to move while you work. Install the power adapter harness to the edge connector (straight thru PCB) and then to the old power connector (be sure the wire colors match on both sides of the joined connectors).
- Page 13 Connect Dimmer Output Adaptors to Dimmer Output Cables For each of the ribbon cables (1, 2, or 4 depending on your enclosure type), connect the transition card edge connector to the ribbon cable. • Pin 1 of the enclosure ribbon cable is marked by an arrow on the connector, which corresponds to an arrow on the transition card at J2/pin 1.
- Page 14 Terminate Ethernet Cable (if installed) Terminate the Ethernet cable with the provided Cat 5 Termination Kit (ETC part# 4101A2003). Follow the wire preparation and termination instructions included with the kit. Using a network cable tester, verify the connection and cable performance between the newly installed cable termination and the patch bay, or the location where the cable terminates.
- Page 15 Install the New Backplane Ensure the DMX termination switches are set properly. Termination should be turned on for the last physical enclosure in the DMX daisy-chain (no DMX wiring leaves the enclosure from that port). Install the dimmer output ribbon cables/transition cards. Open the black retaining tabs for each connector until they are at a 45°...
- Page 16 Insert the backplane tabs in the sides of the enclosure. With the tabs fully inserted in the sides of the Screw with enclosure, pull the backplane towards the sleeve front of the enclosure to line up the screw holes in the upper side corners. Install one screw with a sleeve in the upper corner of each side of the backplane.
-
Page 17: Enclosure Door
Install the new beacon PCB (ETC part # 7141B5109) with two screws (ETC part # HW222.) (Three new screws of the same type are provided in case the old ones were damaged during the removal process.) -
Page 18: Final Steps
For future service needs, it is recommended that you send copies of the final CEM3 configuration files for each enclosure to ETC technical services (Lightmanager@etcconnect.com). Include your job number and the date the configuration was adjusted. Note: Send CEM3 configuration files saved out of the Sensor3 enclosure, not configuration exported from ETC Net 3 Concert (if used). - Page 19 The Retrofit...
