CHAPTER 7
PRESSURE VS. TEMPERATURE

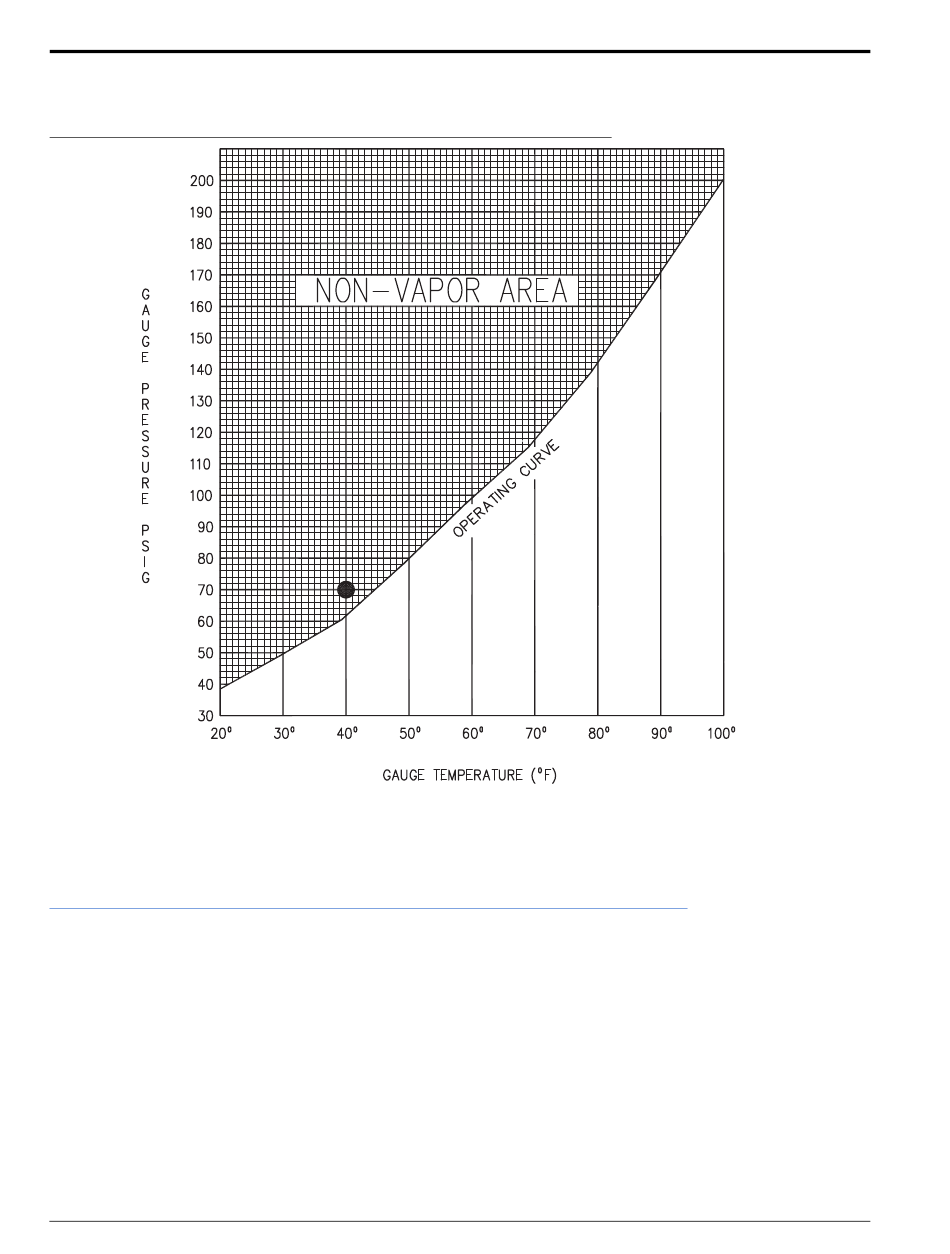

FIGURE 1. Pressure vs. Temperature Chart
Given an observed pressure reading 70 PSI and temperature reading 40° F. The point where these two readings
intersect is within the non-vapor area.
SPEED SENSOR EXTENSION CABLE
Disconnect the extension cable from the speed sensor assembly cable. Hold the extension cable connector so that
the keyway is pointing in the 12 o'clock position as shown below.
