AutoBoom™ Installation Manual
Hagie STS, 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AutoBoom and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raven AutoBoom

Summary of Contents for Raven AutoBoom

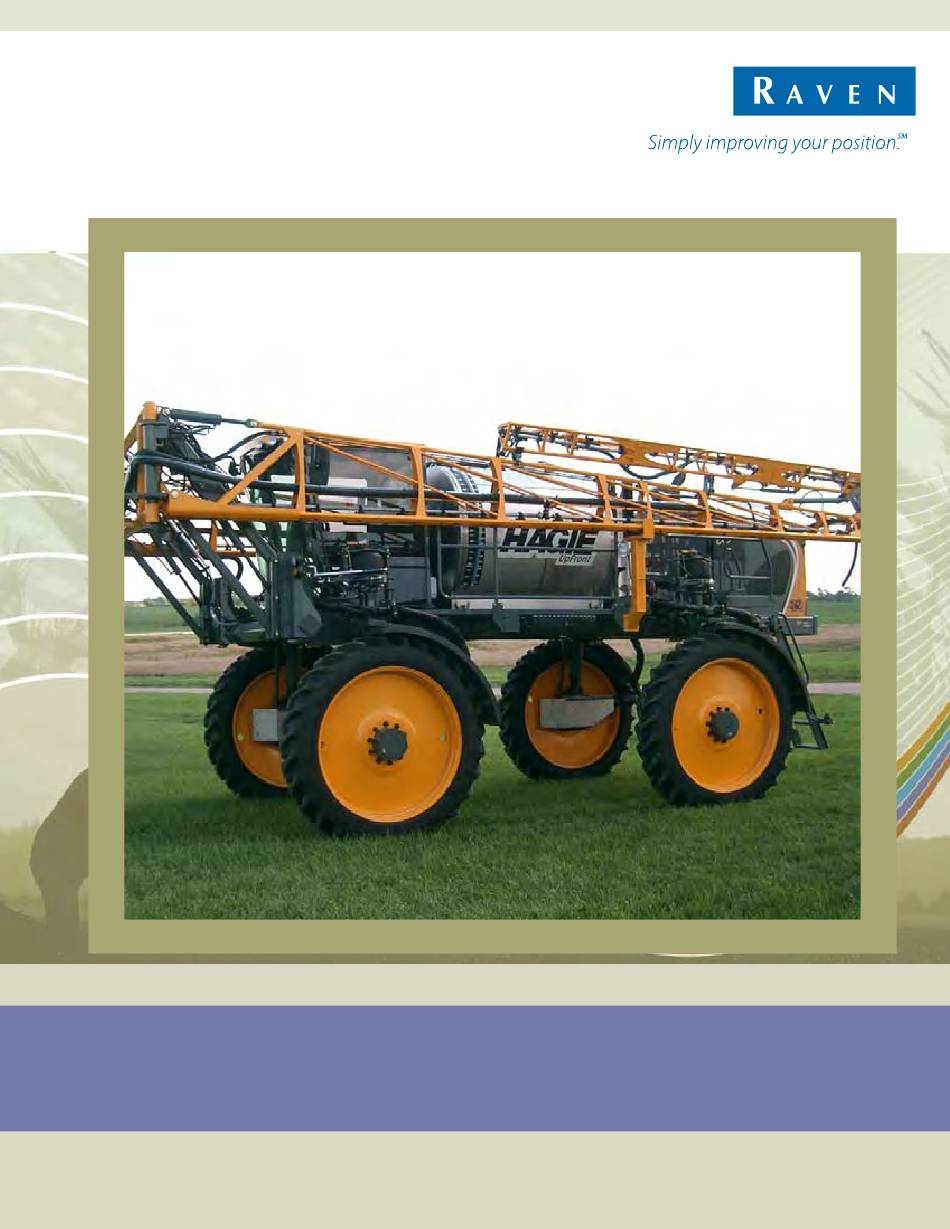

  • Page 1 AutoBoom™ Installation Manual Hagie STS, 2007...
  • Page 3 H A P T E R NTRODUCTION Congratulations on your purchase of the Raven Autoboom system! This system is designed to provide worry-free operation of your hydraulically controlled booms. The following in- structions are designed to assist you in the proper installation of the system hardware. The Autoboom hydraulic installation process is fairly straight forward and prior knowledge of the machine’s hydraulic system is beneficial.

  • Page 4: Basic Kit

    Hagie STS, 2007 Autoboom Installation Manual PowerGlide System Basic Kit Hardware Installation Kit 117-0230-057 Contents Hydraulic Hose and Fitting Kit Hydraulic Valve and Mounting Hardware Axle Mounting Brackets and Mounting Axle Kit 117-0131- 2 Axles Controller Kit 117-0137-022 In-Cab Controller...

  • Page 5: Installation Safety Requirements

    Not operate Autoboom or any agricultural equipment while under the influence alcohol or an illegal substance. Remain in the operator’s position in the machine at all times when Autoboom is engaged. Disable Autoboom when exiting from the operator’s seat and machine.

  • Page 6: Electrical Safety Precautions

    Objects or materials that are able to bypass the machine’s hydraulic filtration system will adversely reduce performance and possibly damage the Autoboom hydraulic valves. Electrical Safety Precautions Do not reverse the power leads. Doing so will cause severe damage to the equipment.

  • Page 7: Driving Safety

    Requirements Areas of Operation The Autoboom must only be used on private property without public access. It must only be used within cleared fields. It must not be used when traveling on any public roads or access ways. Raven Industries advises that users familiarize...
  • Page 8 Hagie STS, 2007 Autoboom Installation Manual We welcome your feedback about this manual. If you have any comments or Contacting suggestions for improvement, please let us know by contacting our Customer Raven Support Center by any of the following methods:...

  • Page 9: Mounting The Valve

    Manual # 016-0230-057 REV A 11/06 OWER LIDE H A P T E R OPULATING AND OUNTING THE ALVE FITTING PORT 3/4" JIC (M) to 3/4" SAE O-Ring (M) P (Filter), T 9/16" JIC (M) to 9/16" SAE O-Ring (M) LV, RV, LC, RC 7/16"...
  • Page 10 Hagie STS, 2007 Autoboom Installation Manual Remove cavity plug (5A) and port plug (6A). Power Glide Dual Discard port plug (6A) or keep for future upgrade to Power Glide Plus. Cartridge Option Insert cavity plug from port 5A into port 6A.
  • Page 11 Right Up 9/16" JIC (F) 214-1000-327 7/16" JIC (F) 90° Load Sense Tee 7/16" JIC (F) Pressure and Tank Lines Tee into pressure and tank lines on machine manifold and connect to P (Filter) and T respectively on Autoboom vavle.
  • Page 12 Disconnect left Down line from machine manifold and connect to Inside LT CYL RTN. Remove hose connecting right Down port and steel line. Connect steel line to Inside RT CYL RTN port on Autoboom valve. Connect left and right Down ports on machine manifold to Outside LT CYL RTN and Outside RT CYL RTN ports respectively.
  • Page 13 Load Sense Remove short line between load sense tee and load sense port on machine manifold. Connect load sense tee to LSP port on Autoboom valve using supplied hose. Connect load sense port on machine manifold to LSV port on...
  • Page 14 Hagie STS, 2007 Autoboom Installation Manual Power Glide Hydraulic Schematic...
  • Page 15 Manual # 016-0230-057 REV A 11/06 OWER LIDE & LTRA LIDE H A P T E R OPULATING AND OUNTING THE ALVE FITTING PORT 3/4" JIC (M) to 3/4" SAE O-Ring (M) P (Filter), T 9/16" JIC (M) to 9/16" SAE O-Ring (M) LV, RV, LC, RC 7/16"...
  • Page 16 Hagie STS, 2007 Autoboom Installation Manual NOTE: Ultra Glide - Make sure floating orifice in LC and RC ports are installed with slot facing out. Mount valve on center rack near machine manifold.
  • Page 17 Right Up 9/16" JIC (F) 214-1000-327 7/16" JIC (F) 90° Load Sense Tee 7/16" JIC (F) Pressure and Tank Lines Tee into pressure and tank lines on machine manifold and connect to P (Filter) and T respectively on Autoboom vavle.
  • Page 18 Disconnect left Down line from machine manifold and connect to Inside LT CYL RTN. Remove hose connecting right Down port and steel line. Connect steel line to Inside RT CYL RTN port on Autoboom valve using supplied hose. Connect left and right Down ports on machine manifold to Outside LT CYL RTN and Outside RT CYL RTN ports respectively using supplied hose.
  • Page 19 Load Sense Remove short line between load sense tee and load sense port on machine manifold. Connect load sense tee to LSP port on Autoboom valve using supplied hose. Connect load sense port on machine manifold to LSV port on Autoboom valve using supplied hose.
  • Page 20 Hagie STS, 2007 Autoboom Installation Manual Power Glide Plus & Ultra Glide Hydraulic Schematic...

  • Page 21: Wheel & Sensor

    Manual # 016-0230-057 REV A 11/06 H A P T E R & S HEEL ENSOR OUNTING Wheel Mounting Mount axle bracket just inside boom fold. Mount bracket to holes in boom frame using supplied hardware.

  • Page 22: Sensor Mounting

    Hagie STS, 2007 Autoboom Installation Manual Sensor Mounting Mount sensor near boom tip using bracket and supplied hardware. Mount bracket to holes in boom...

  • Page 23: Wiring Harness

    Use the following diagrams to install the wiring harness. Be sure to allow enough slack in harness when racking booms. Connect power leads to battery. Insert boom sense tees into left and right up coil wires and connect to Autoboom main harness cable.
  • Page 24 Hagie STS, 2007 Autoboom Installation Manual Power Glide...
  • Page 25 Manual # 016-0230-057 REV A 11/06 Power Glide Plus...
  • Page 26 Hagie STS, 2007 Autoboom Installation Manual Ultra Glide...

  • Page 27: Replacement Parts

    Manual # 016-0230-057 REV A 11/06 P P E N D I X EPLACEMENT ARTS On the following pages you will find replacement part diagrams and listings for Power Glide, Power Glide Plus, and Ultra Guide systems. Please refer to these diagrams when calling to request replacement parts.
  • Page 28 Hagie STS, 2007 Autoboom Installation Manual Valve Blocks Power Glide Valve Block Replacement Parts Drawing Power Glide Plus Valve Block Replacement Parts Drawing...
  • Page 29 Manual # 016-0230-057 REV A 11/06 Ultra Glide Valve Block Replacement Parts Drawing...
  • Page 30 Hagie STS, 2007 Autoboom Installation Manual Wheel Assembly and Machine Specific Wheel and Bracket Drawing Brackets Cushioned Axle Replacement Parts Drawing...
  • Page 31 Manual # 016-0230-057 REV A 11/06 Sensor and Brackets Machine Specific Sensor Bracket Drawing Molded Sensor Replacement Parts Drawing...
  • Page 32 Hagie STS, 2007 Autoboom Installation Manual NOTES:...
  • Page 33 Manual # 016-0230-057 REV A 11/06...
  • Page 34 Hagie STS, 2007 Autoboom Installation Manual...
  • Page 35 How Can I Get Service? Bring the defective part and proof of purchase to your Raven Dealer. If your Dealer agrees with the warranty claim, the Dealer will send the part and proof of purchase to their distributor or to Raven Industries for final approval.
  • Page 36 P.O. Box 5107 Fax: 605-331-0426 Sioux Falls, SD 57117-5107 www.ravenprecision.com atdinfo@ravenind.com Notice: This document and the information provided are the property of Raven Industries, Inc. and may only be used as authorized by Raven Industries, Inc. All rights reserved under copyright laws.
