CHAPTER 3

REFRIGERANT LINE ASSEMBLY

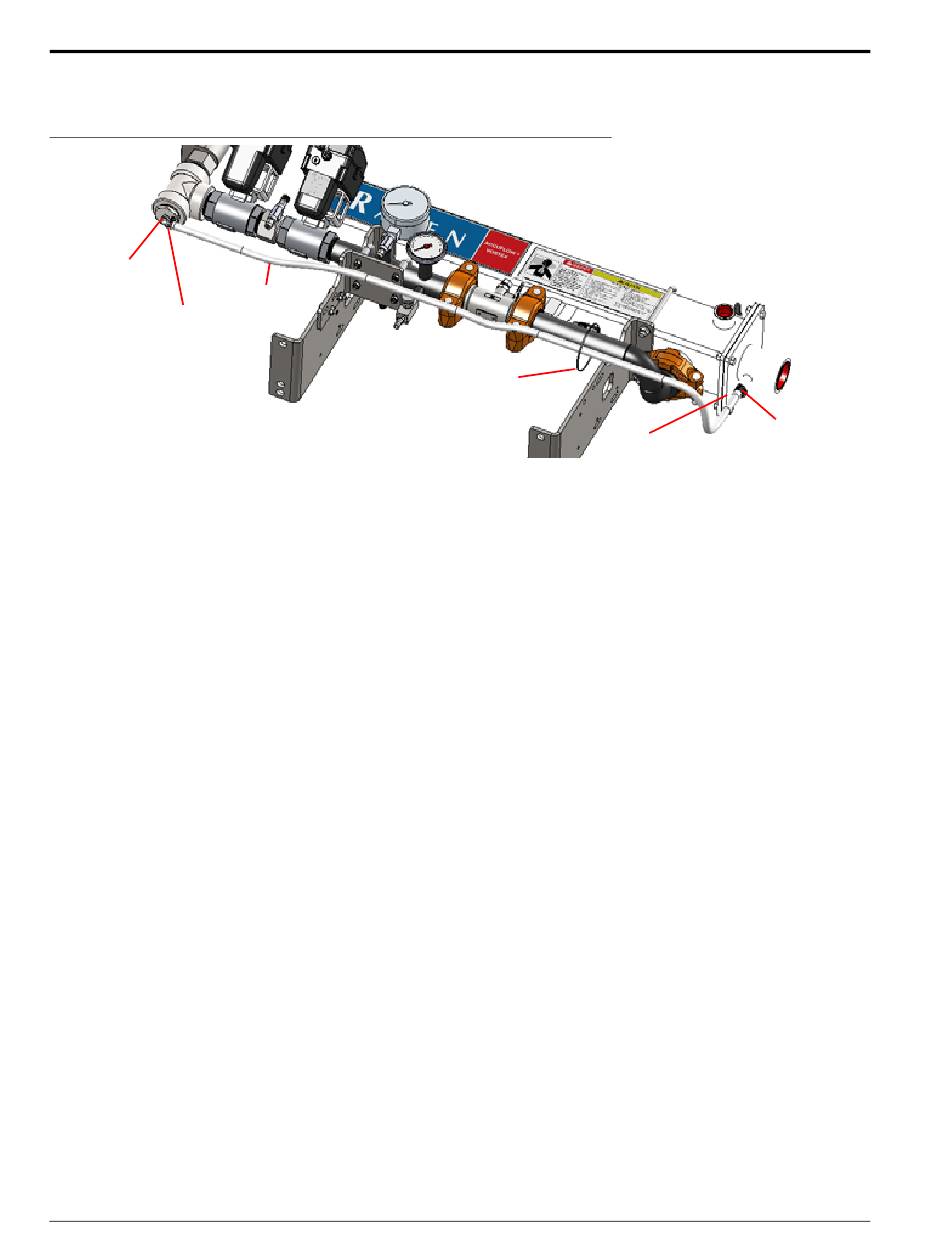

FIGURE 10. Refrigerant Line Assembly
90° Hose Barb
Fitting
Refrigerant
Line
Hose Clamp
1. Slide a hose clamp over one end of the refrigerant line.
2. Slide the refrigerant line over the 90° hose barb fitting.
3. Secure the hose clamp over the 90° hose barb fitting.
4. Slide a hose clamp over the other end of the refrigerant line.
5. Slide the refrigerant line over the straight hose barb fitting.
6. Secure the hose clamp over the straight hose barb fitting.
7. Secure the refrigerant line to the outlet manifold with a cable tie.
24
Cable Tie
AccuFlow™ Vortex and AccuFlow™ HP+ Installation and Operation Manual
Straight Hose
Hose Clamp
Barb Fitting
