CHECK VALVE ASSEMBLY (FOR MULTIPLE SECTION VALVES ONLY)

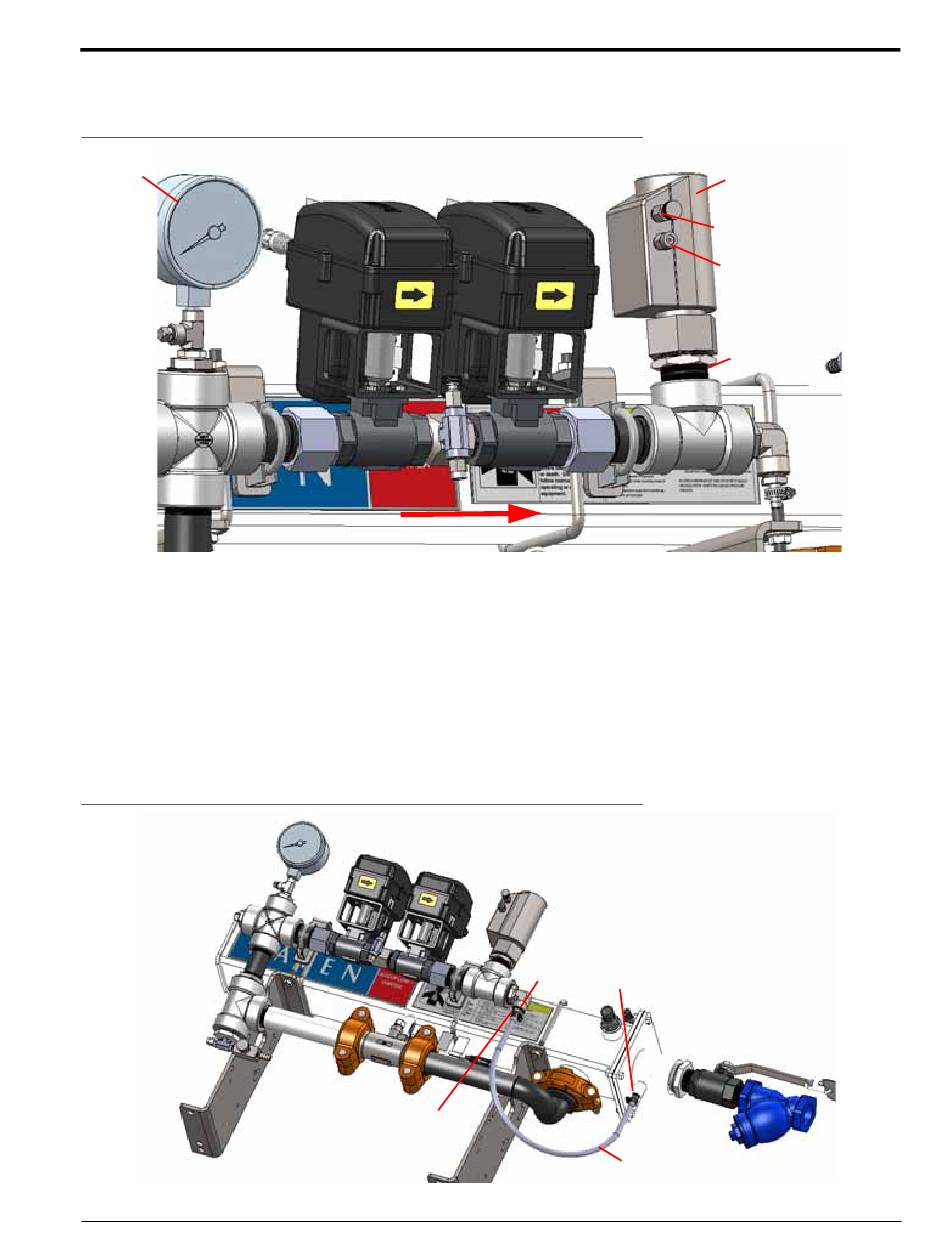

FIGURE 13. Check Valve Assembly
Gauge Tree
1. Apply PTFE thread sealant to all threaded joints.
2. Install the pipe nipple into the top of the fitting tee.
3. Attach the check valve to the pipe nipple with the flow direction as shown in Figure 9.
NOTE:
Refer to the spare parts list in Chapter 8, System Diagram and Replacement Parts for a list of
replacement parts.
REFRIGERANT LINE ASSEMBLY
FIGURE 14. Refrigerant Line Assembly
AccuFlow™ Vortex and AccuFlow™ HP+ Installation: One Inch Gauge Tree and Valve Assembly
ACCUFLOW™ VORTEX AND ACCUFLOW™ HP+ INSTALLATION
Flow Direction
Hose Barb
Fitting
Check Valve
1/4" Bleed Valve
Relief Valve
Hose Clamp
Refrigerant
Line
Pipe Nipple
27
