CHAPTER 3
1. Slide a hose clamp over one end of the refrigerant line.
2. Slide the refrigerant line over the hose barb fitting.
3. Secure the hose clamp over the hose barb fitting.
4. Slide a hose clamp over the other end of the refrigerant line.
5. Slide the refrigerant line over the straight hose barb fitting.
6. Secure the hose clamp over the straight hose barb fitting.

MANIFOLD ASSEMBLY

There are variations in inlet manifolds. Locate the appropriate inlet manifold below and follow the appropriate
instructions to install your inlet manifold.

DUAL INLET MANIFOLD ASSEMBLY

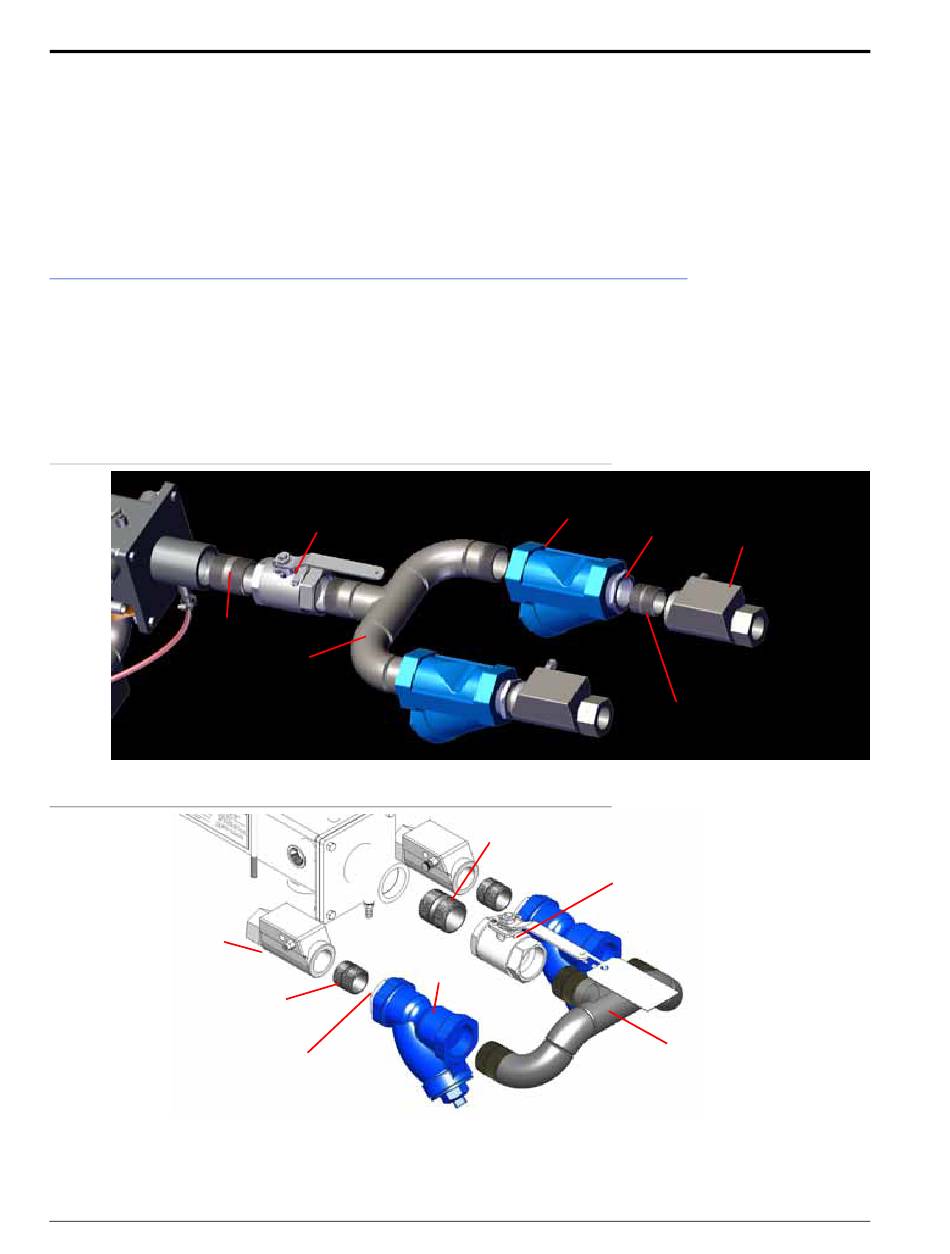

FIGURE 15. Standard Inlet Manifold Assembly
2" Pipe Nipple
FIGURE 16. Reverse Inlet Manifold Assembly
Check Valve
1-1/2" Pipe
Nipple
1. Apply PTFE thread sealant to all threaded joints.
2. Install the 2" pipe nipple into the end of the cooler.
28
Valve Assembly
Inlet Manifold
Strainer
Reducer
Bushing
AccuFlow™ Vortex and AccuFlow™ HP+ Installation and Operation Manual
Reducer
Strainer
Bushing
2" Pipe Nipple
Valve Assembly
Check Valve
Pipe Nipple
Inlet Manifold
