ONE INCH GAUGE TREE AND VALVE ASSEMBLY

GAUGE TREE AND VALVE ASSEMBLY

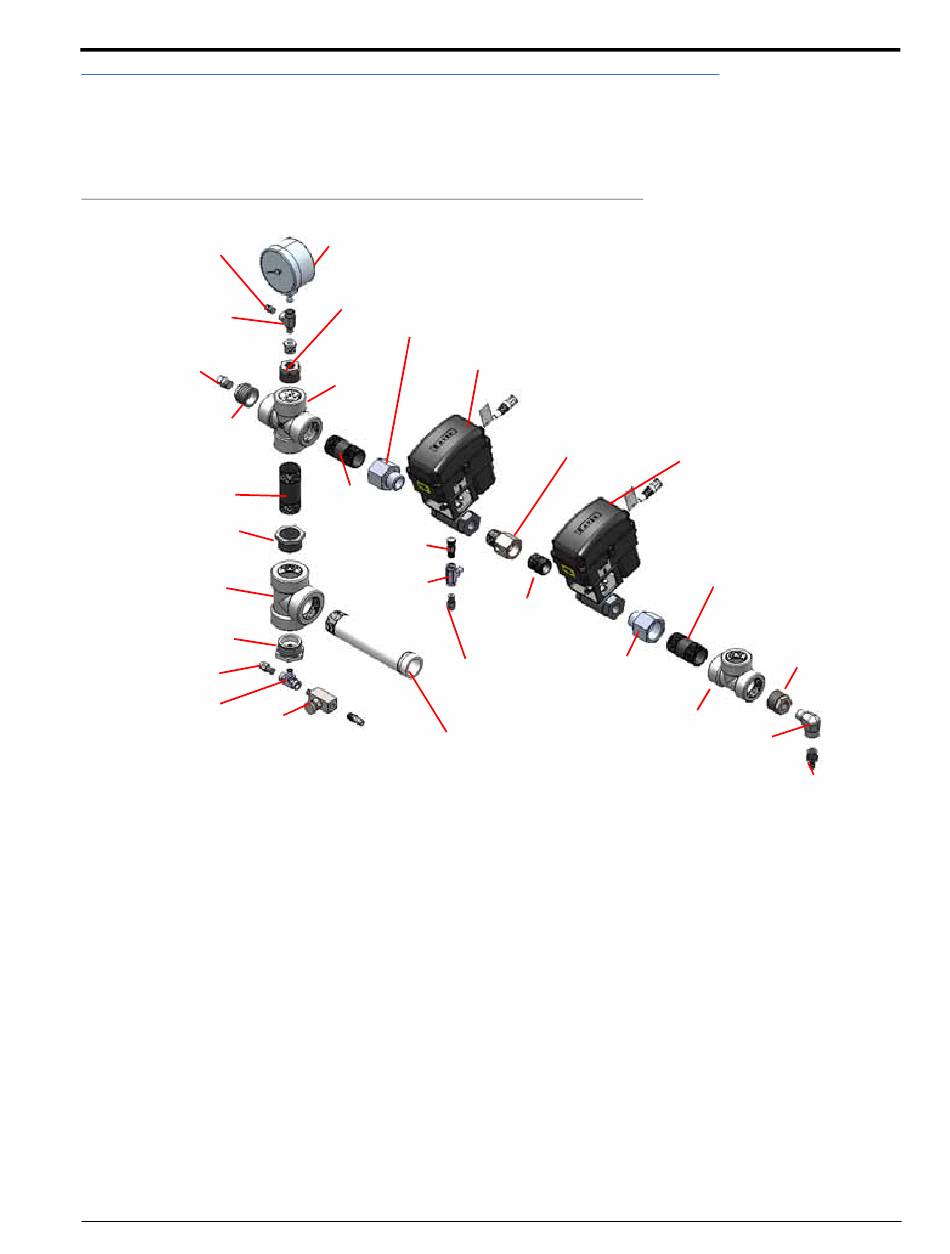

FIGURE 11. Gauge Tree and Valve Assembly
1/4" Pipe Plug
(for optional
pressure
transducer)
1/4" Run Tee
1/2" Pipe Plug
(for optional
temperature
transducer)
1-1/4" x 1/2"
Reducer
1-1/4" x 4"
Pipe Nipple
Reducer
Fitting Tee
1-1/2" x 1/4"
Reducer
Relief Valve
1/4" Branch
Needle Valve
Tee
1. Apply PTFE thread sealant to all threaded joints.
2. Install the threaded end of the Gruvlok into the side of the fitting tee.
3. Install 1-1/2" x 1/4" reducer into one end of the fitting tee.
4. Install 1/4" branch tee into 1-1/2" x 1/4" reducer.
5. Install a needle valve into the 1/4" branch tee.
6. Install a reducer into the remaining available port on the fitting tee.
7. Install the long pipe nipple into the reducer.
8. Install the other end of the 1-1/4" x 4" long pipe nipple into 1-1/4" cross.
9. Install the 1-1/4" x 3" pipe nipple into one of the side ports on 1-1/4" cross.
10. Install a 1-1/4" x 1/2" reducer into the other side of the 1-1/4" cross.
11. Install the pressure gauge assembly into the top of 1-1/4" cross.
12. Thread a pipe adapter onto the other end of the 1-1/4" x 3" pipe nipple.
13. Install the control valve into the pipe adapter.
14. Install a 1" relief valve adapter and 1" close pipe nipple into the other end of the control valve.
AccuFlow™ Vortex and AccuFlow™ HP+ Installation: One Inch Gauge Tree and Valve Assembly
ACCUFLOW™ VORTEX AND ACCUFLOW™ HP+ INSTALLATION
Pressure
Gauge
1-1/4" x 1/2"
Reducer
Pipe Adapter
Control Valve
1-1/4"
Cross
1-1/4" x 3"
Pipe Nipple
Bleed Valve
1/4" Branch
Tee 1" Close
Nipple
Relief Valve
Gruvlok Pipe
Nipple
1" Relief Valve
Adapter
On/Off Valve
Pipe Nipple
Pipe Adapter
Fitting Tee
1-1/4" x 1/2"
Reducer
Elbow
Hose Barb
Fitting
