CHECK VALVE ASSEMBLY (FOR MULTIPLE SECTION VALVES ONLY)

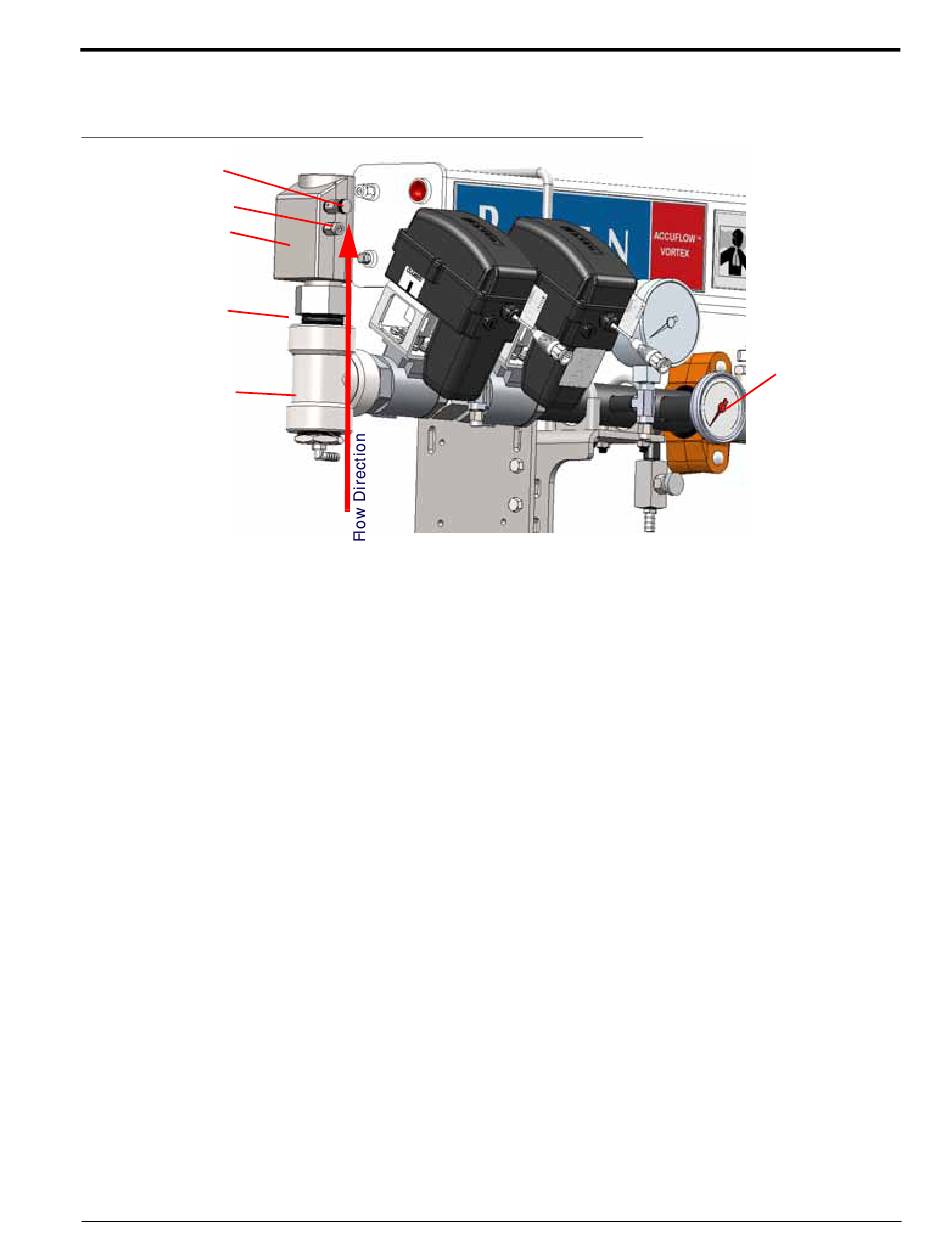

FIGURE 9. Check Valve Assembly
1/4" Bleed Valve
Relief Valve
Check Valve
Pipe Nipple
Fitting Tee
1. Apply PTFE thread sealant to all threaded joints.
2. Install the pipe nipple into the top of the fitting tee.
3. Attach the check valve to the pipe nipple with the flow direction as shown in Figure 9.
NOTE:
Refer to the spare parts list in Chapter 8, System Diagram and Replacement Parts for a list of
replacement parts.
AccuFlow™ Vortex and AccuFlow™ HP+ Installation: 1.5" Gauge Tree and Valve Assembly
ACCUFLOW™ VORTEX AND ACCUFLOW™ HP+ INSTALLATION
Gauge Tree
23
