1.5" GAUGE TREE AND VALVE ASSEMBLY

GAUGE TREE AND VALVE ASSEMBLY

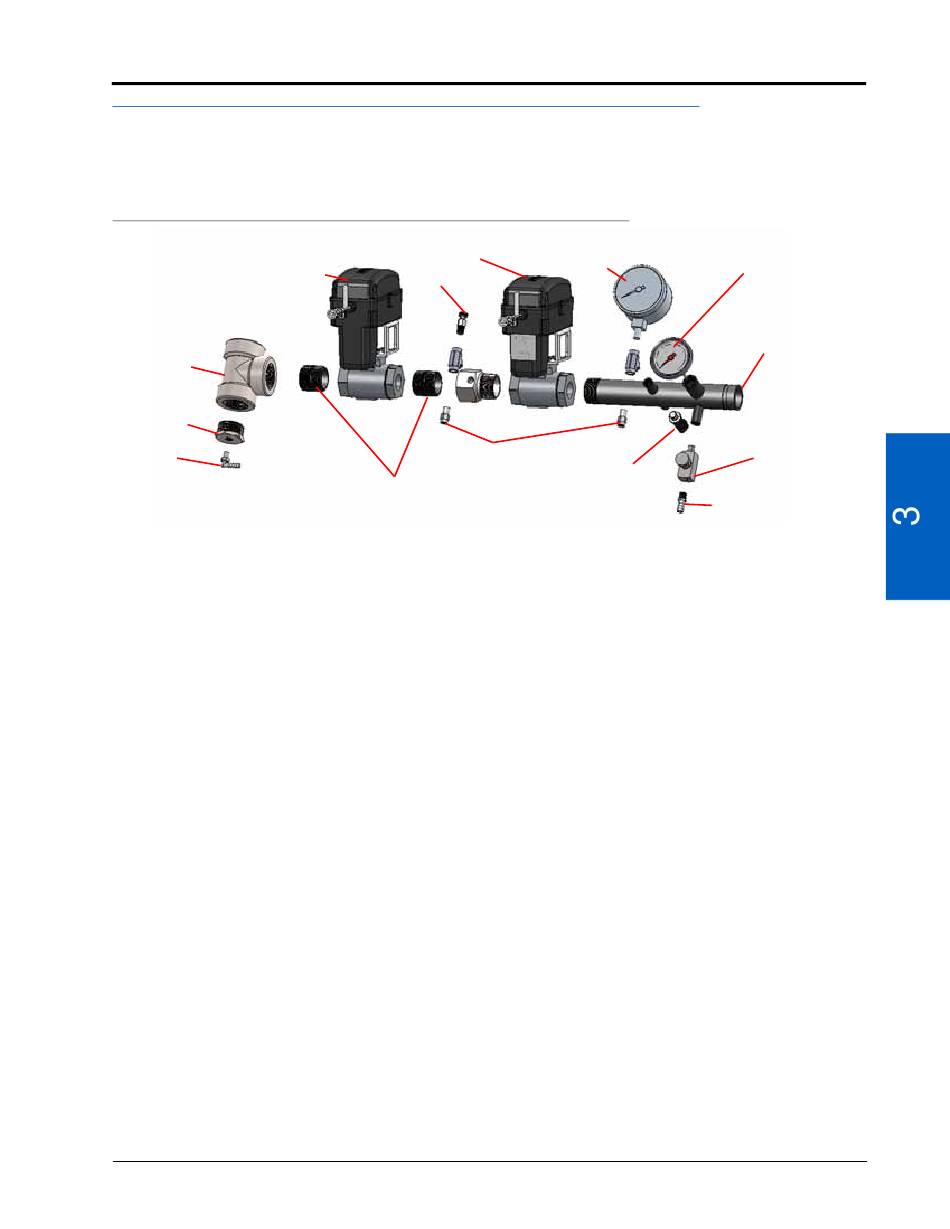

FIGURE 7. Gauge Tree and Valve Assembly
On/Off Valve
Fitting Tee
Reducer
90° Hose Barb
Fitting
1. Apply PTFE thread sealant to all threaded joints.
2. Thread and secure the reducer into one end of the fitting tee.
3. Install the 90° hose barb fitting into the reducer.
4. Install a pipe nipple between the on/off valve and the controller valve.
5. Use the second pipe nipple to secure the fitting tee to the on/off valve. Verify that the 90° hose barb fitting if
located at below the pipe.
6. Secure the gauge tree manifold to the controller valve.
7. Install the needle valve into the needle valve port of the gauge tree manifold.
8. Install the straight hose barb fitting into the end of the needle valve.
9. Install the transducer into the transducer port of the gauge tree manifold.
10. Screw the pressure gauge into the appropriate port on the gauge tree manifold.
11. Install the temperature gauge in the temperature gauge port on the gauge tree manifold.
AccuFlow™ Vortex and AccuFlow™ HP+ Installation: 1.5" Gauge Tree and Valve Assembly
ACCUFLOW™ VORTEX AND ACCUFLOW™ HP+ INSTALLATION
Control Valve
Bleed Valve
Relief Valve
Pipe Nipple
Pressure
Gauge
Temperature
Gauge
Gauge Tree
Manifold
Transducer
Hose Barb Fitting
Needle Valve
