2.3

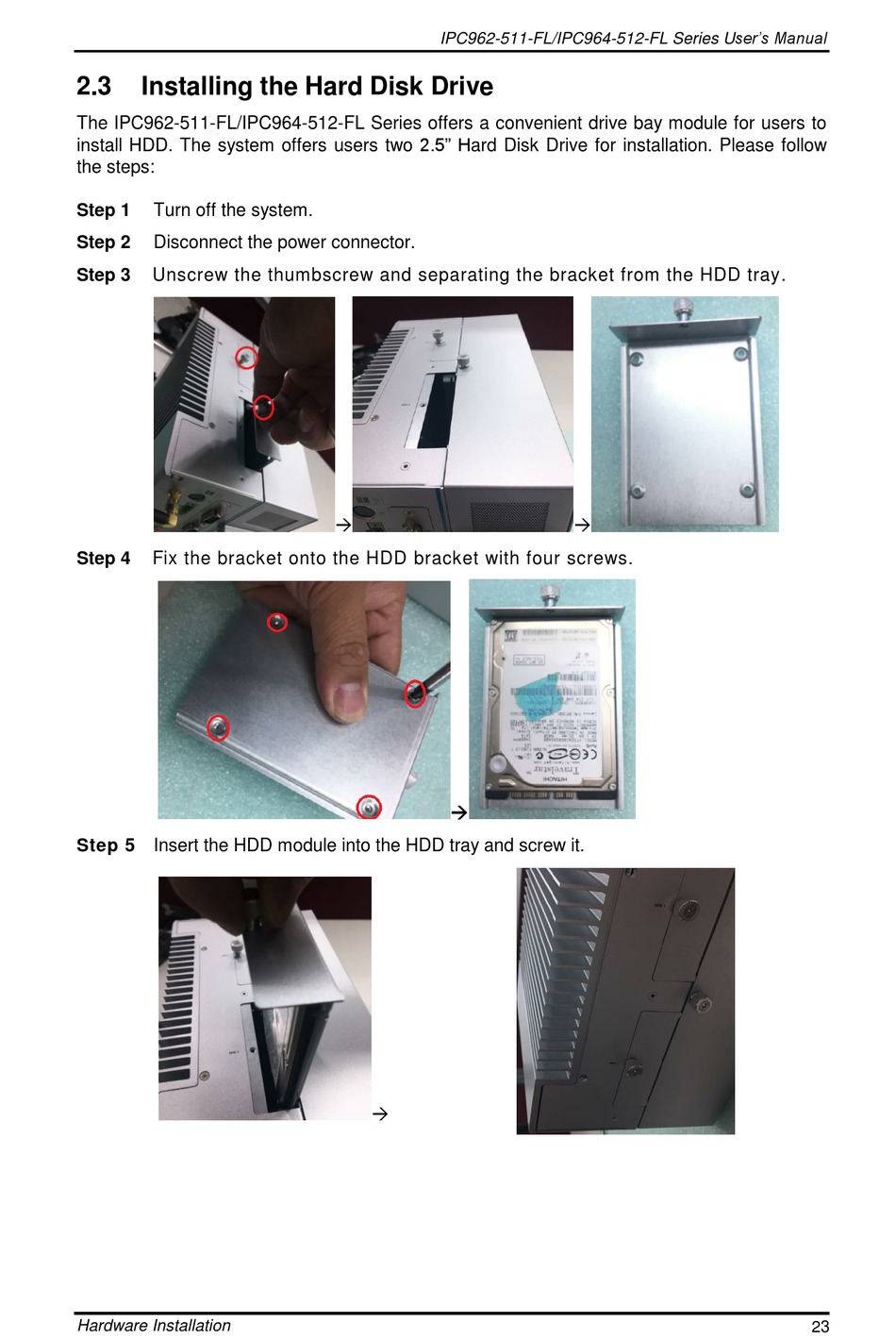

Installing the Hard Disk Drive
The IPC962-511-FL/IPC964-512-FL Series offers a convenient drive bay module for users to
install HDD. The system offers users two 2.5" Hard Disk Drive for installation. Please follow
the steps:
Step 1
Turn off the system.
Step 2
Disconnect the power connector.
Step 3
Unscrew the thumbscrew and separating the bracket from the HDD tray.
Step 4
Fix the bracket onto the HDD bracket with four screws.
Step 5 Insert the HDD module into the HDD tray and screw it.
Hardware Installation
IPC962-511-FL/IPC964-512-FL Series User's Manual
23
