1.6

Jumper Settings

Properly configure jumper settings on the SBC87511/SBC87512 to meet your application
purpose. Below you can find a summary table of all jumpers and onboard default settings.
Note:

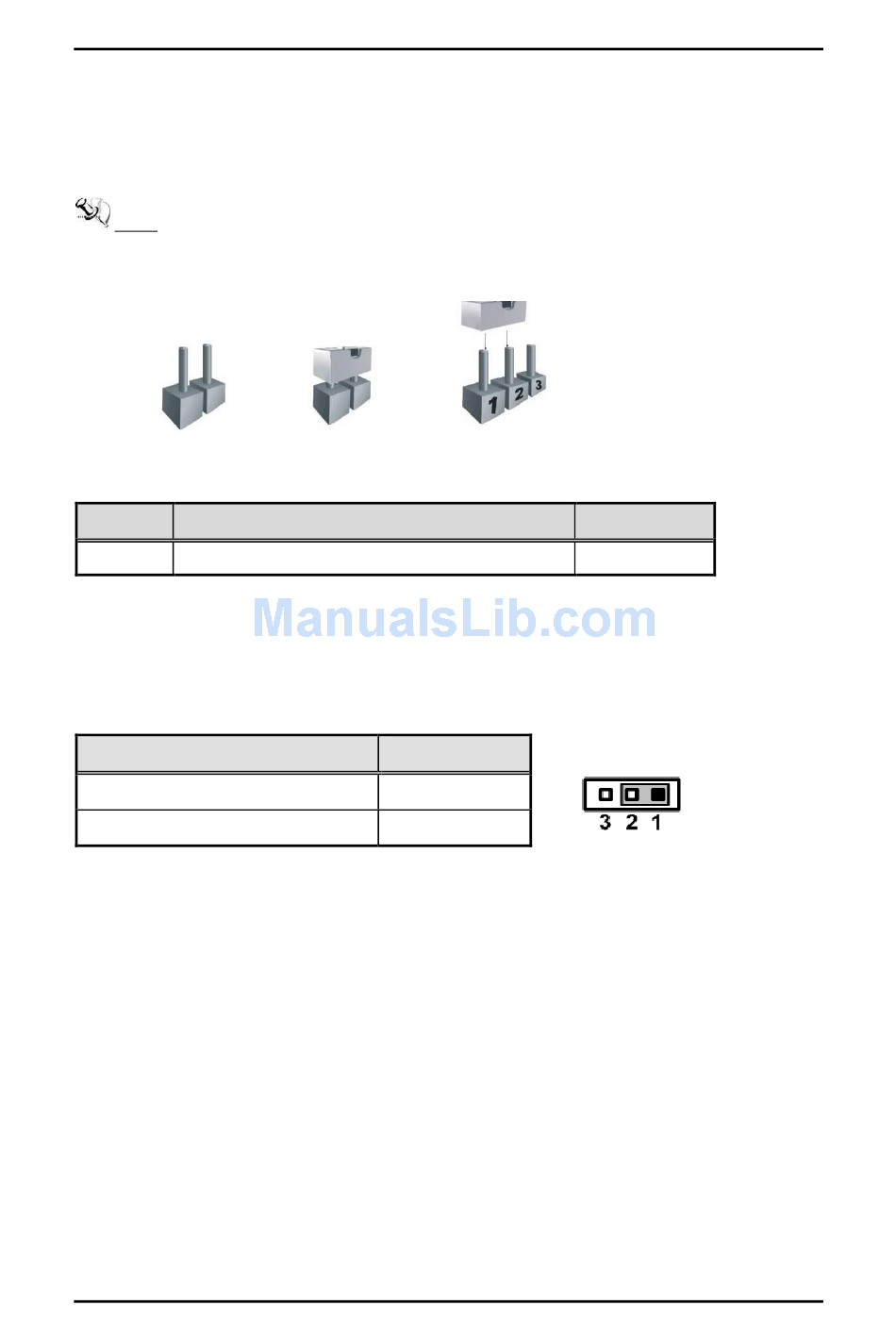

How to setup Jumpers
That a cap on a jumper is to "close" the jumper, whereas that offs a jumper is to "open" the
jumper.
[Open]
Jumper
JP1 Clear RTC : Normal
1.6.1

Restore BIOS Optimal Defaults (JP1)

Put jumper clip to pin 2-3 for a few seconds then move it back to pin 1-2. Doing this procedure
can restore BIOS optimal defaults.
Function
Normal operation (Default)
Restore BIOS optimal defaults
Introduction
IPC962-511-FL/IPC964-512-FL Series User's Manual
[Closed] [Pin1 -2 Closed]
Descriptions
Setting
1-2 close
2-3 close
Setting
Short 1-2
