3

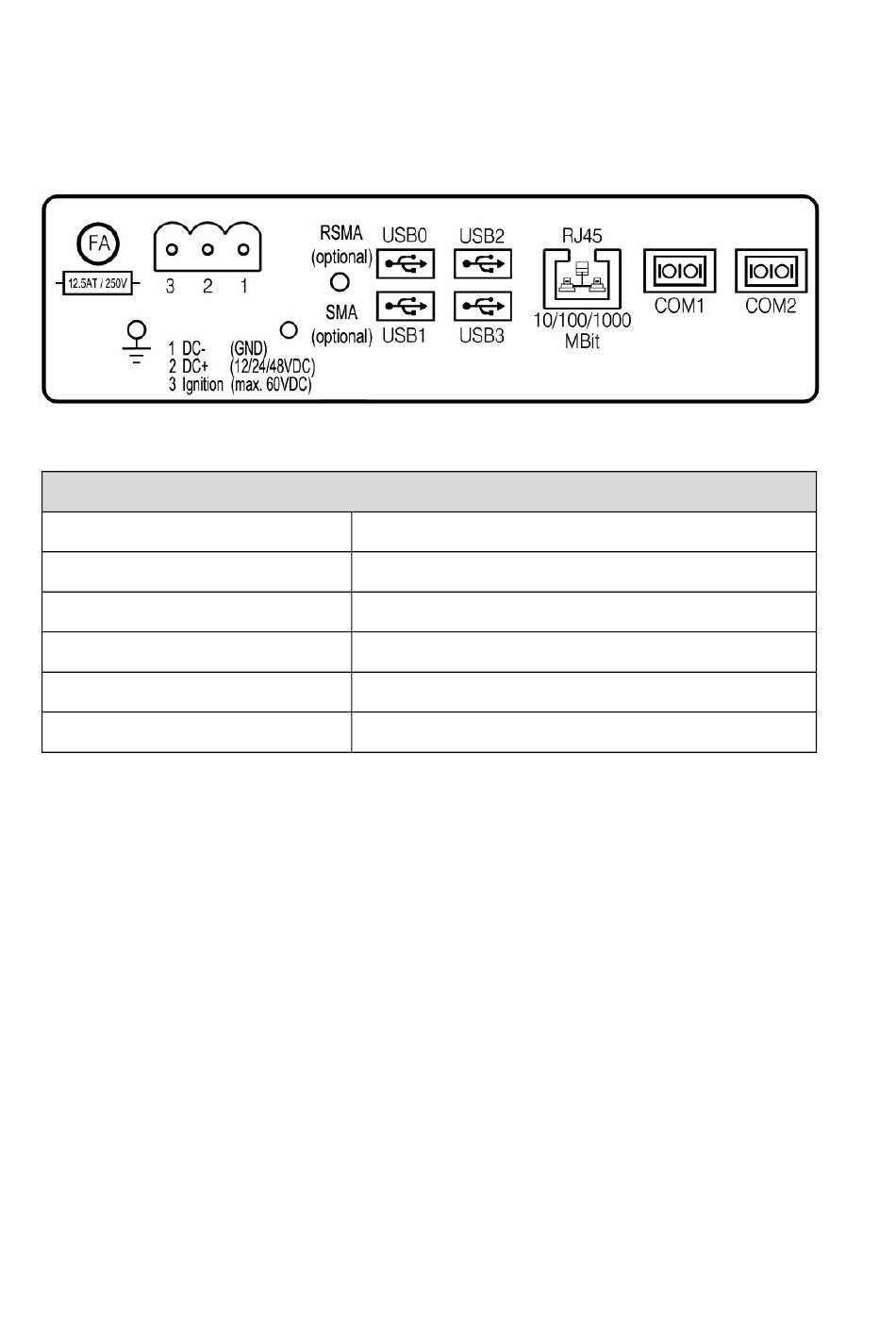

EXTERNAL CONNECTORS
3.1 In the cable compartment under the cable cover
Pin assignment
Power supply
1 x SMA (optional)
1 x RSMA (optional)
USB0, USB1, USB2, USB3
RJ45
COM1, COM2
18
12/24/48 VDC nominal
Remote WWAN antenna
Remote WLAN antenna
USB 2.0 interfaces (HI-SPEED™), bootable
Ethernet 10/100/1000 MBit/s
Serial interfaces
