EXTERNAL CONNECTORS

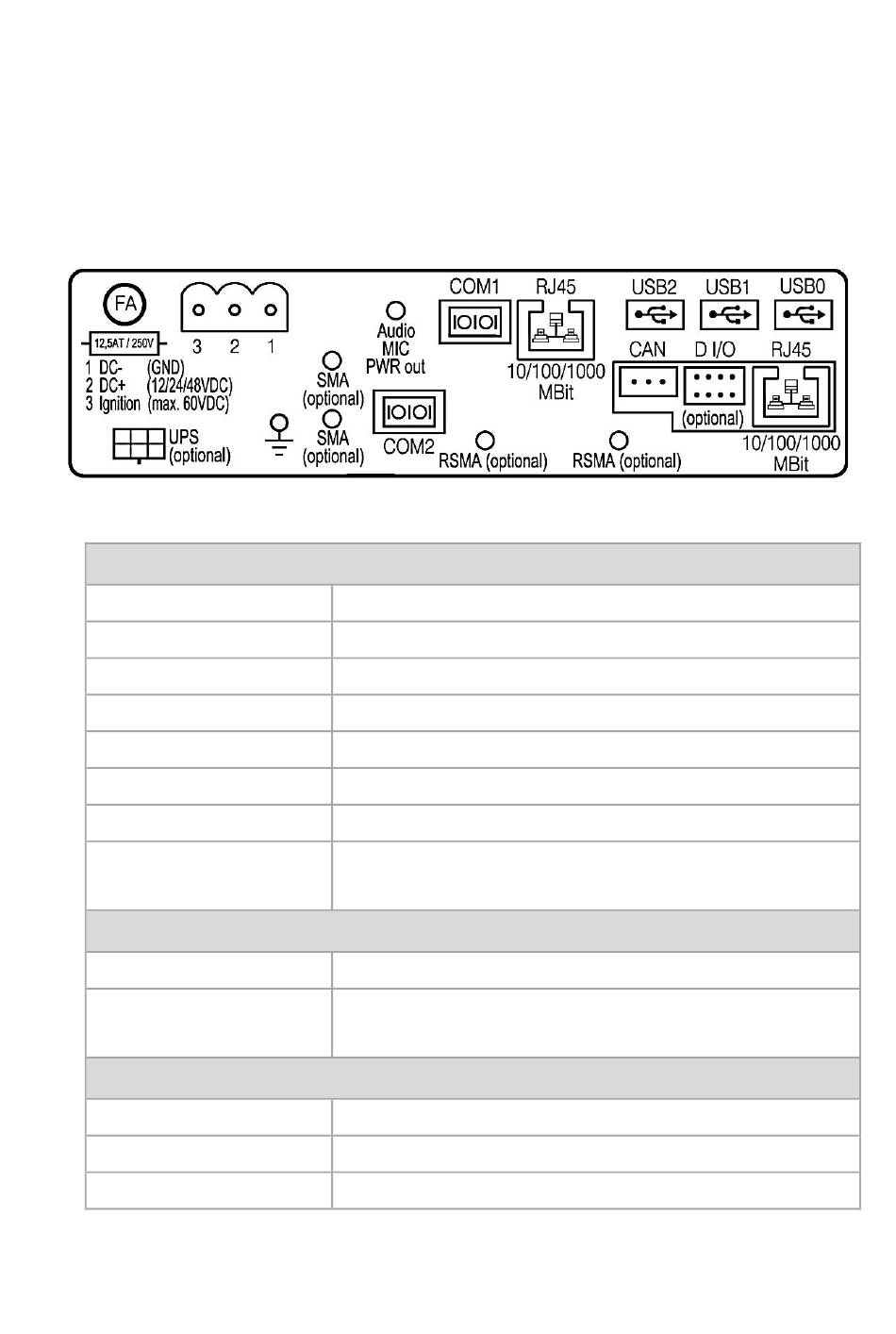

3.1 In the cable compartment under the cable cover
DLT-V83 Series: DC variant, maximum equipment level (optional)
Pin assignment (standard)
Power supply
UPS (optional)
2 x SMA (optional)
Audio MIC PWR out
COM1, COM2
2 x RSMA (optional)
RJ45
USB2, USB1, USB0
Expansion interfaces package 1 (optional)
D I/O
RJ45
Expansion interfaces package 2 (optional)
CAN
D I/O
RJ45
12/24/48 VDC nominal
Uninterrupted power supply (UPS)
WWAN/GPS
Voice kit
Serial interfaces
Remote WLAN antenna
LAN Ethernet 10/100/1000 MBit/s
USB 2.0 interface (HI-SPEED™), bootable
Digital In/Out
LAN Ethernet 10/100/1000 MBit/s
CAN interface
Digital In/Out
LAN Ethernet 10/100/1000 MBit/s
