7.2 Procedure for connecting cables and sealing cable passages

STEP 1: Insert the rubber seal

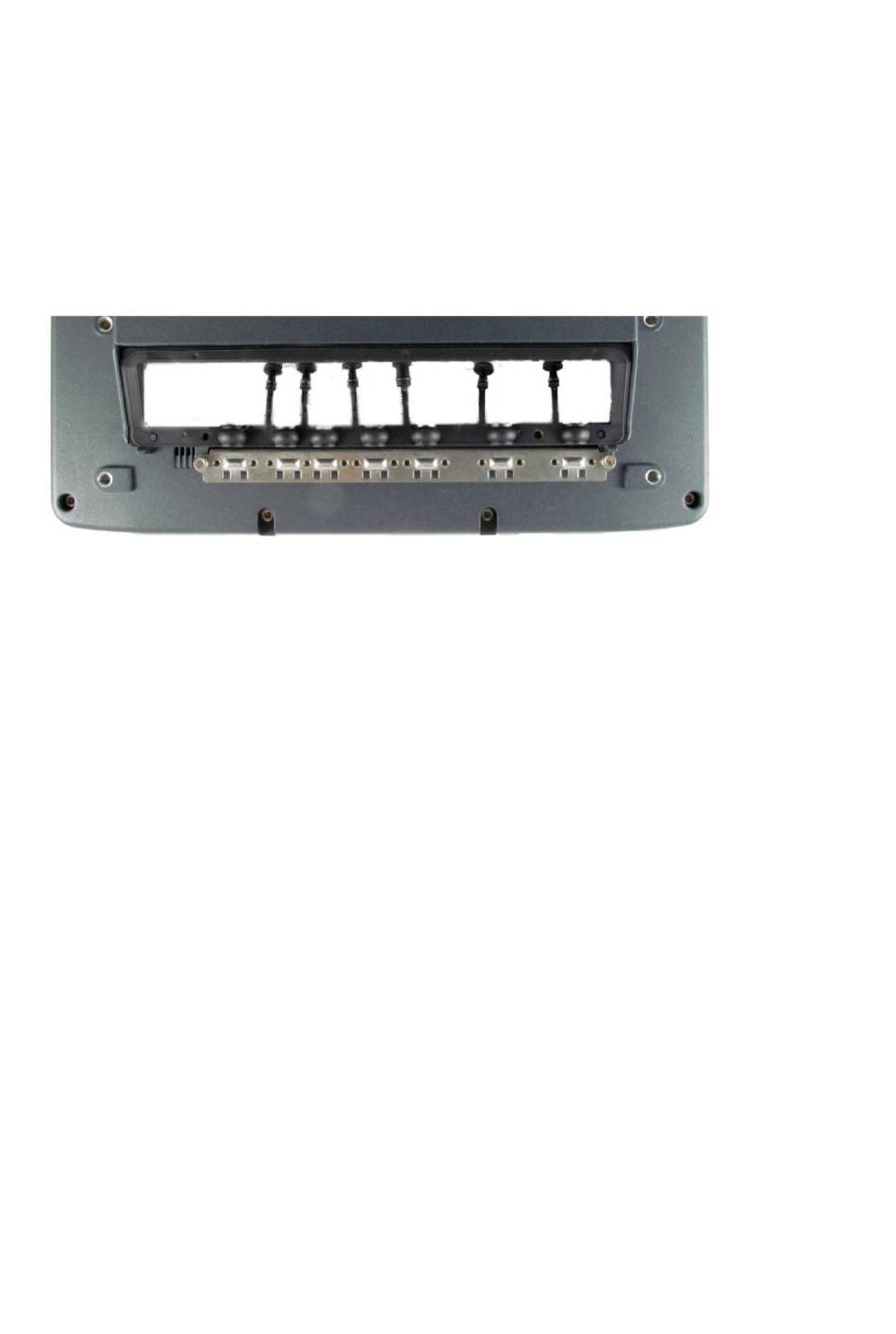

− Place the rubber seal in the frame of the cable compartment (see figure).

− Press the plugs of the rubber seal into the holes of the frame.
