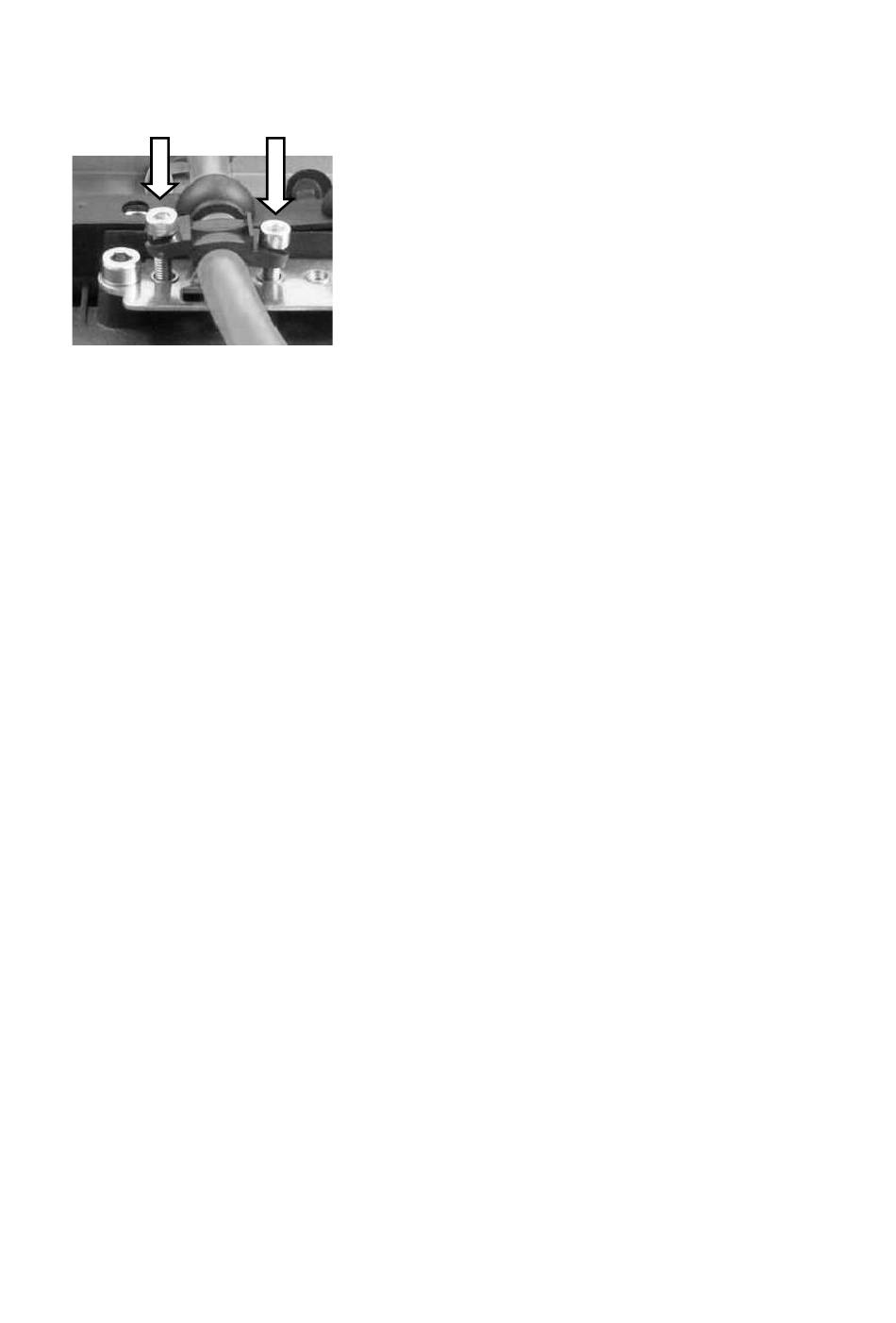

STEP 3: Secure the power supply cable to the strain relief rail

Mounting screws

NOTICE:

− Tighten the mounting screws sufficiently but make sure not to pinch the cable.

Otherwise, the cables may break or the insulation may be damaged.

− Make sure that the power supply cables are run without kinks and are mechanically

protected, securely protected against crushing and abrading.

STEP 4: Connect the USB, Ethernet and COM cables

Procedure as described for the power supply cable:

− Connect the cable.

− Open the round cable passage in the rubber seal.

− Insert the cable.

− Insert both components into the cable passage.

− Secure using cable clip and screws to the strain relief rail.

− Open the round cable passage in the rubber seal.

− Insert the power supply cable.

− Place one cable clip on the power supply cable.

− Secure the cable clip to the strain relief rail using

2 mounting screws.

− Tighten the mounting screws alternatingly.
