Advantech AIR-200 User Manual

Advantech AIR-200 User Manual

Rugged ai fanless system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

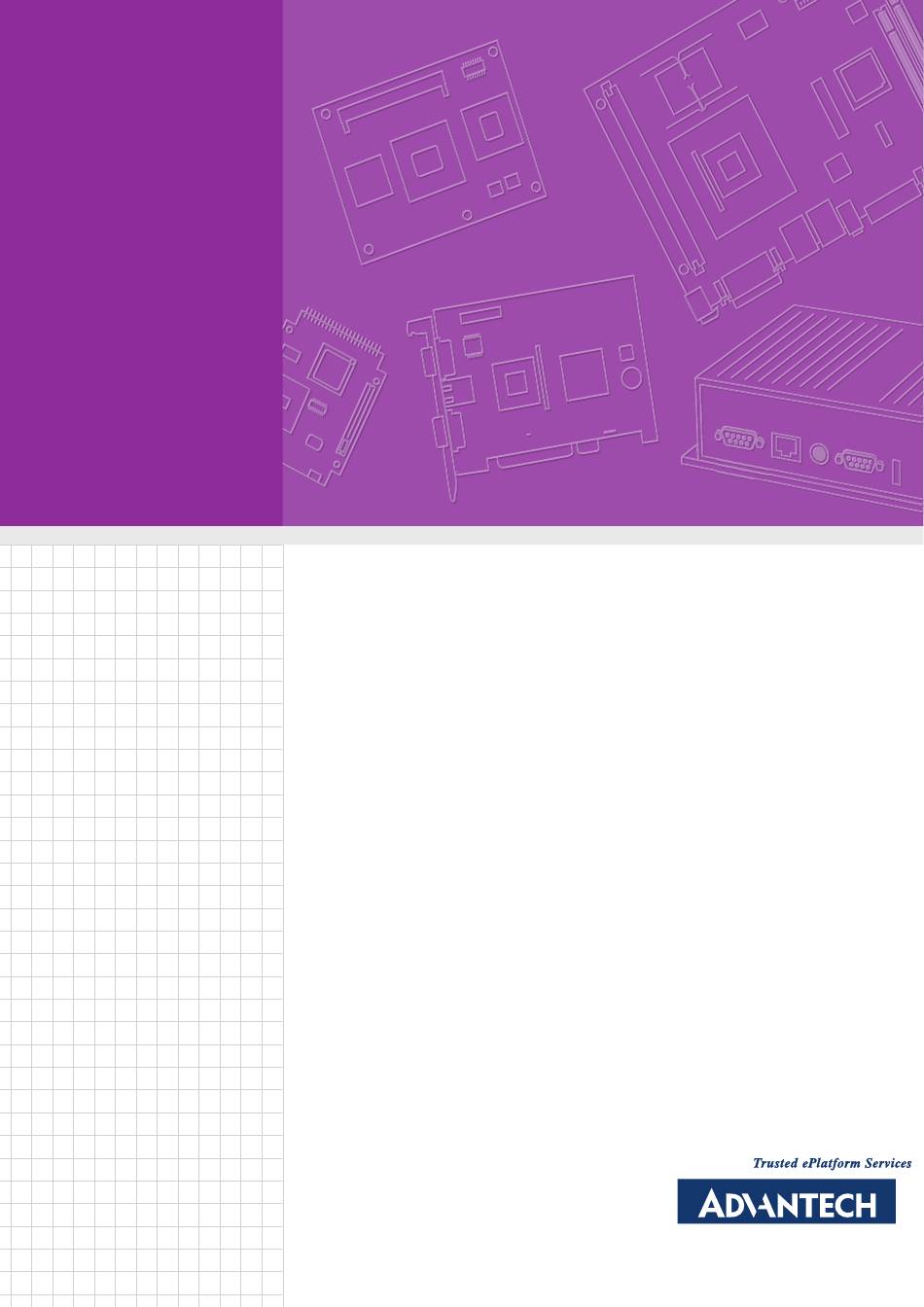

User Manual
AIR-200
Rugged AI Fanless System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIR-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech AIR-200

Summary of Contents for Advantech AIR-200

  • Page 1 User Manual AIR-200 Rugged AI Fanless System...
  • Page 2 Please download the latest English user manual and drivers on web- site: http://www.advantech.com/products/65f20c25-f6ef-4ab5-be3c-b7dfa7a833b3/air- 200/mod_8f0cc938-4cfa-4375-a108-6a8e982a0365 Please disregard the printed Chinese copy of the user manual if the product is not to be sold and/or installed in China. 申請商：研華股份有限公司 地 址：台北市內湖區瑞光路 26 巷 20 弄 1 號 電 話：02-27927818 AIR-200 User Manual...
  • Page 3 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 4 In this event, users are required to correct the interference at their own expense. Technical Support and Assistance Visit the Advantech website at www.advantech.com/support to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
  • Page 5 Before system installation, check that the items listed below are included and in good condition. If any item does not accord with the list, contact your dealer immediately. 1 x AIR-200 unit  1 x Hard copy user manual (Simplified Chinese) ...
  • Page 6 (ex. screws) provided with the accessory box. ATTENTION: Tout composant non vérifiée pourrait causer des dommages inat- tendu. Pour garantir une installation correcte, s'il vous plaît utilisez toujours les composants(vis ex.) fournies avec la boîte d'accessories. AIR-200 User Manual...

  • Page 7: Table Of Contents

    Introduction ....................2 Features ....................2 Hardware Specifications ................3 Mechanical Specifications................. 4 1.4.1 Dimensions ................... 4 Figure 1.1 AIR-200-S92A1 Mechanical Dimensions ....4 Chapter Hardware Installation ......5 Overview of Hardware Installation & Upgrading ........6 Memory installation ................... 6 Storage installation..................
  • Page 8 A.2.6 COM ................... 63 A.2.7 Audio................... 63 A.2.8 Remote Control................63 A.2.9 DC Input..................64 A.2.10 DC Output (12Vdc/1.5A)............. 64 A.2.11 External SIM Slots ..............64 A.2.12 LED Indicator ................64 A.2.13 Power On/Off Button..............64 AIR-200 User Manual viii...

  • Page 9: Chapter 1 General Introduction

    Chapter General Introduction This chapter gives background information on AIR-200 series.

  • Page 10: Introduction

    Introduction AIR-200 is an industrial grade quad core mobile device for edge AI inference solu- tion. It also supports Full-HD NVR solution and is fully integrated with certified hardware and intelligent management software. AIR-200 provides diverse communication (ex:GPS/G-sensor/WLAN/WWAN/CANBus) for excellent connectivity, it has great expansion capability and comes with integrated software for manageability and secu- rity.

  • Page 11: Hardware Specifications

     Storage:  – 2.5" SATA: 1 x removable 2.5" drive bay (Max 9.5 mm height) – mSATA: 1x full size mSATA storage Watchdog Timer: Supported by Advantech SUSIAccess API  I/O Interface:  – COM: 3 x RS-232/422/485 –...

  • Page 12: Mechanical Specifications

    Mechanical Specifications 1.4.1 Dimensions 260 x 160.2 x 86.8 mm Figure 1.1 AIR-200-S92A1 Mechanical Dimensions AIR-200 User Manual...

  • Page 13: Chapter 2 Hardware Installation

    Chapter Hardware Installation This chapter introduces the instal- lation of AIR-200 Hardware.

  • Page 14: Overview Of Hardware Installation & Upgrading

    Power must be switched off and the power cord must be unplugged. Take care in order to avoid injury or damage to the equipment. Memory installation Remove 4 screws from top case to install memory on the top side of the board AIR-200 User Manual...

  • Page 15: Storage Installation

    Storage installation 2.3.1 2.5" SATA drive installation 2.3.2 mSATA Installation Remove bottom cover 4 screws on the bottom side and 4 screws on both sides. Insert a full size mSATA storage in the place marked AIR-200 User Manual...

  • Page 16: Optional Minipcie And M.2 Module Installation

    Optional MiniPCIe and M.2 Module Installation Insert suitable modules on MiniPCie or M.2 slots. 2230 E key Full Size MiniPCIe slot, SATA/USB2.0&3.0/PCI AIR-200 User Manual...

  • Page 17: Chapter 3 Bios Settings

    Chapter BIOS Settings This chapter explains the BIOS configuration processes...

  • Page 18: Bios Introduction

    BIOS Introduction AIR-200 BIOS has been stored into a flash ROM which is inserted into a BIOS socket on the board. With the BIOS Setup program, users can modify BIOS settings and control various system features. This chapter describes the basic navigation of the AIR-200 BIOS setup screens.

  • Page 19: Main Setup

    Date elements. Use + / - or numbers to change the value. Set the system time. Use Tab to switch System Time hh:mm:ss between Date elements. Use + / - or numbers to change the value. AIR-200 User Manual...

  • Page 20: Advanced Bios Setup

    3.2.2 Advanced BIOS Setup Select the Advanced tab from the AIR-200 setup screen to enter the Advanced BIOS Setup screen. Users can select any item in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. Users can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 21 3.2.2.1 Intel® I210 Gigabit Network Connection Feature Option Description NIC Configuration <Sub Menu> PCIE/USB3 Combe Port 1 Strap Blink LEDs Click to configure the network device port AIR-200 User Manual...
  • Page 22 Specifies the port speed used for the Link Speed 10 Mbps Full selected boot protocol 100 Mbps Half 100 Mbps Full Disabled Enables the server to be powered on using Wake On LAN Enabled an in-band magic packet AIR-200 User Manual...
  • Page 23 3.2.2.2 Intel® Ethernet Connection (H) I219-LM Feature Option Description NIC Configuration <Sub Menu> PCIE/USB3 Combe Port 1 Strap Blink LEDs Click to configure the network device port AIR-200 User Manual...
  • Page 24 NIC Configuration  Feature Option Description Auto Negotiated 10 Mbps Half Specifies the port speed used for the Link Speed 10 Mbps Full selected boot protocol 100 Mbps Half 100 Mbps Full AIR-200 User Manual...
  • Page 25 3.2.2.3 Driver Health Feature Option Description Provides Health Status for the drivers/Control- Intel® Gigabit 0.0.09 <Sub Menu> lers Provides Health Status for the drivers/Control- Intel® PRO/1000 6.3.27 PCI-E <Sub Menu> lers AIR-200 User Manual...
  • Page 26 Intel® Gigabit 0.0.09  Intel® PRO/1000 6.3.27 PCI-E  AIR-200 User Manual...
  • Page 27 Press Enter to access the TPM support menu and select Enable to display the full TPM configuration menu. Feature Option Description Disabled Enables or disables the BIOS support for TPM Security Device Support Enabled (Trusted Platform Module) function. AIR-200 User Manual...
  • Page 28 Needs OS support for this feature. Suspend Disabled Select the state used for ACPI system ACPI Sleep State S3 (Suspend to RAM) sleep/suspend Disable Enables or disables video BIOS screen S3 Video Repost Enable when resume from S3 state AIR-200 User Manual...
  • Page 29 Use this item to enable/disable trigger CIRA (Client Initi- Assistance Process Enabled ated Remote Access) boot. USB Provisioning of Disabled Enable/Disable of AMT USB Provisioning Enabled Disabled User can Enable/Disable PET Events progress to PET Progress Enabled receive PET events or not AIR-200 User Manual...
  • Page 30 Warning: If you enable PTT, dTPM will be disabled and all data saved on it will be lost. Likewise, if you enable dTPM, PTT will be disabled and all data saved on it will be lost. Firmware Update <Sub Menu> Configure Management Engine Technology Parameters Configuration AIR-200 User Manual...
  • Page 31 Feature Option Description Disabled ME FW Image Re-Flash Enable/Disable ME FW Image Re-Flash function Enabled AIR-200 User Manual...
  • Page 32 Serial Port 1 Configuration <Sub Menu> Set Parameters of Serial Port 1 (COMA) Serial Port 2 Configuration <Sub Menu> Set Parameters of Serial Port 2 (COMB) Serial Port 3 Configuration <Sub Menu> Set Parameters of Serial Port 3 (COMC) AIR-200 User Manual...
  • Page 33 No option The current settings Auto IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2F8h; Select an optimal setting for Super Change Settings IRQ=3,4,5,6,7,9,10,11,12; IO device IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; RS-232 Choose Serial Port RS-485 Change the Serial Port Mode Mode RS-422 AIR-200 User Manual...
  • Page 34 No option The current settings Auto IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,1 IO=2F8h; IRQ=3,4,5,6,7,9,10,11,1 Select an optimal setting for Super IO Change Settings device IO=3E8h; IRQ=3,4,5,6,7,9,10,11,1 IO=2E8h; IRQ=3,4,5,6,7,9,10,11,1 RS-232 RS-485 Change the Serial Port Mode Choose Serial Port Mode RS-422 AIR-200 User Manual...
  • Page 35 No option The current settings Auto IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12 Select an optimal setting for Super IO Change Settings device IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12 IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12 RS-232 Choose Serial Port Mode RS-485 Change the Serial Port Mode RS-422 AIR-200 User Manual...
  • Page 36 3.2.2.9 iManager Configuration Feature Option Description Normal Select Power Saving mode as Normal or Deep Power Saving Mode Deep Sleep Sleep Enabled Watch Dog Timer Enabled or Disabled Watch Dog Timer function Disabled AIR-200 User Manual...
  • Page 37 Hardware Monitor  AIR-200 User Manual...
  • Page 38 Note: To set this option, you need to Console Redirection Settings <Sub Menu> enable “Console Redirection” Legacy Console Redirection <Sub Menu> Legacy Console Redirection Settings Settings Note: To set this option, you need to Console Redirection Settings <Sub Menu> enable “Console Redirection” AIR-200 User Manual...
  • Page 39 VT-UTF8 Combo Key Disabled Enable VT-UTF8 Combination Key Support Enabled Support for ANSI/VT100 terminals With this mode enabled only text Disabled Recorder Mode will be sent. This is to capture Ter- Enabled minal data AIR-200 User Manual...
  • Page 40 Legacy OS. Legacy Console Redirection Settings  Feature Option Description COM1 Select a COM port to display redi- Legacy Serial Redirec- COM1(Pci rection of Legacy OS and Legacy tion Port Bus0,Dev0,Func0)(Disabled) OPROM Messages AIR-200 User Manual...
  • Page 41 The speed must be 19200 Bits per second matched on the other side. Long or 57600 noisy lines may require lower 115200 speeds None Flow control can prevent data loss Flow Control Hardware RTS/CTS from buffer overflow. Software Xon/Xoff AIR-200 User Manual...
  • Page 42 3.2.2.11 CPU Configuration AIR-200 User Manual...
  • Page 43 This can accelerate processor and graphics perfor- Disabled mance for peak loads, automatically allowing proces- Turbo Mode Enabled sor cores to run faster than the rated operating frequency if they’re operating below power, current, and temperature specification limits. AIR-200 User Manual...
  • Page 44 SATA Mode Selection Determines how SATA controller(s) operate RAID Disabled Serial ATA Port 1 Enable or disable SATA port Enabled Disabled Serial ATA Port 2 Enable or disable SATA port Enabled Disabled mSATA Enable or disable SATA port Enabled AIR-200 User Manual...
  • Page 45 3.2.2.13 Network Stack Configuration Feature Option Description Disabled Network Stack Enable or disable the UEFI network stack Enabled AIR-200 User Manual...
  • Page 46 Storage OpROM Legacy Do not launch Controls the execution of UEFI and Legacy Video UEFI Video OpROM Legacy Do not launch Determines OpROM execution policy for Other PCI devices UEFI devices other than Network, Storage, or Video Legacy AIR-200 User Manual...
  • Page 47 XHCI Hand-off Note: If this feature is enabled, the xHCI owner- Enabled ship change should be claimed by the xHCI operating system driver. USB Mass Storage Disabled Enable/Disable USB Mass Storage Driver Sup- Driver Support Enabled port AIR-200 User Manual...

  • Page 48: Chipset

    3.2.3 Chipset Select the Chipset tab from the AIR-200 setup screen to enter the Chipset BIOS Setup screen. You can display a Chipset BIOS Setup option by highlighting it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this sec- tion.
  • Page 49 Description Disable Enable/Disable VT-d (Intel® Virtualization Technology VT-d Enable for Directed I/O) Enable/Disable above 4GB MemoryMappedIO BIOS Above 4GB MMIO Disable assignment This is disabled automatically when Aper- BIOS assignment Enable ture Size is set to 2048MB. AIR-200 User Manual...
  • Page 50 Graphics Configuration  Feature Option Description Auto Internal Graphics Disabled Keep IGFX enabled based on the setup options Enabled AIR-200 User Manual...
  • Page 51 LCD Control  Feature Option Description VBIOS Default Primary IGFX Boot CRT(VGA) Select the Video Device which will be activated Display HDMI1(DDI1) during POST. HDMI2(DDI2) AIR-200 User Manual...
  • Page 52 Memory Configuration  This page shows memory information AIR-200 User Manual...
  • Page 53 Enable or disable PCIe to wake the system PCIE Wake Disabled from S5 Quiet Serial IRQ Mode Configure Serial IRQ Mode Continuous S0 State Specify what state to to to when power is re- State After G3 S5 State applied after a power failure AIR-200 User Manual...
  • Page 54 PCI Express Configuration  Mini PCI Express 1~2  AIR-200 User Manual...
  • Page 55 Set the ASPM Level: Force L0s - Force all links to L0s State ASPM Support Auto - BIOS auto configure L0sL1 Disable - Disable ASPM Auto Auto Gen1 PCIe Speed Select PCI Express port speed Gen2 Gen3 AIR-200 User Manual...
  • Page 56 USB Configuration  Feature Option Description Options to disable Compliance Mode. XHCI Disable Compliance FALSE Default is FALSE to not disable Compliance Mode TRUE Mode. Set TRUE to disable Compliance Mode AIR-200 User Manual...
  • Page 57 BIOS Security Configuration  Feature Option Description Disabled Enable will lock bytes 38h-3Fh in the lower/upper RTC Lock Enabled 128-byte bank of RTC RAM Disabled Enable/Disable the PCH BIOS Lock BIOS Lock Enabled Enable (BLE bit) feature AIR-200 User Manual...
  • Page 58 Option Description Control Detection of the HD-Audio device. Disabled Disabled = HDA will be unconditionally disabled. HD Audio Enabled Enabled = HDA will be unconditionally enabled Auto Auto = HDA will be enabled if present, disabled otherwise. AIR-200 User Manual...

  • Page 59: Security

    3.2.4 Security Select Security tab from the AIR-200 main BIOS setup menu. All security setup options, such as password protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>: Change Administrator / User Password: Select this option and press Enter to access the sub menu, and then type in the password.

  • Page 60: Boot Settings

    Fast Boot mal set of devices required to launch active boot Enabled option. Has no effect for BBS boot options Default Controls the placement of newly detected UEFI New Boot Option Policy Place First boot options Place Last AIR-200 User Manual...

  • Page 61: Save & Exit

    Select one of the devices to boot. It only <Bootable device list> changes on this boot, and will not change the default boot sequence Attempts to Launch EFI Shell application Launch EFI Shell from filesystem (Shell.efi) from one of the available filesystem device devices AIR-200 User Manual...
  • Page 62 AIR-200 User Manual...

  • Page 63: Chapter 4 Jumper And Switch Settings

    Chapter Jumper and Switch Settings This chapter explains how to set up AIR-200 Series hardware, including instructions on setting jumpers and connecting peripher- als, and how to set switches and read indicators. Be sure to read all the safety pre-...

  • Page 64: Setting Jumpers And Switches

    An arrow is used on the motherboard to indicate the first pin of each jumper. Jumper location AIR-200 User Manual...

  • Page 65: Jumper List

    Clear CMOS (CMOS1) Normal (Default) Clear CMOS 4.4.3 MiniPCIe Slot1 Power Setting (SW1) Voltage 3.3V (Default) 3.8V 4.4.4 MiniPCIe Slot2 Power Setting (SW2) Voltage 3.3V (Default) 3.8V  configure the In-Vehicle Computing Box to match the needs of the AIR-200 User Manual...
  • Page 66  the clip. To “open” a jumper, remove the clip. Sometimes a jumper has three pins,  labeled 1, 2, and 3. In this case, connect either pins 1 and 2, or pins 2 and 3.     AIR-200 User Manual...

  • Page 67: Appendix A Pin Assignments

    Appendix Pin Assignments This chapter explains Pin Assign- ments of AIR-200 Series.

  • Page 68: I/O Connector Location

    AIR-200-S92A1 I/O Overview I/O Connector Pin-Definition A.2.1 The AIR-200 provides a high resolution VGA interface connected by a D-sub 15-pin connector to support a VGA CRT monitor. It supports display resolution of up to 1920 x 1200 with 60 Hz...

  • Page 69: Hdmi

    TMDS_Data0+/ DP_Data2+ TMDS_Data0-/ DP_Data2- TMDS_Clock+/ DP_Data3+ TMDS_Clock−/ DP_Data3- SCL/ AUX_CH+ SDA/ GND DDC GND/ AUX_CH- +5V/ Hot plug detect Hot plug detect/ Return DP_PWR A.2.3 Signal Name VBUS USB Data- USB Data+ StdA_SSRX- StdA_SSRX+ GND_DRAIN StdA_SSTX- StdA_SSTX+ AIR-200 User Manual...

  • Page 70: Ethernet

    RX+(10/100),BI_DB+(GHz) BI_DD+(GHz) BI_DC+(GHz) BI_DD-(GHz) A.2.5 AIR-200 offers isolated 4 x DI & 4 x DO w/ 3 KV isolation. Connector Type: 9-pin DB9 Female  Input Voltage: 0 to 30 VDC at 25 Hz  Digital Input Levels for Dry Contacts: ...

  • Page 71: Com

    A.2.6 RS-232 RS-422 RS-485 Signal Name Signal Name Signal Name DATA- DATA+ A.2.7 Audio Audio Line-in Line-out A.2.8 Remote Control Signal Name Power LED +5V HDD LED +5V HDD LED Active Power Button Reset Switch AIR-200 User Manual...

  • Page 72: Dc Input

    12V+ 12V- A.2.11 External SIM Slots AIR-200 provides two external SIM slots, which connects to MiniPCIe slot1 & MiniP- CIe slot2. A.2.12LED Indicator There are two LEDs on front metal face plate for indicating system status: PWR LED is for power status; and SSD LED is for SSD flash disk status.
  • Page 73 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2020...
