3.2 Connectors underneath the antenna
The following connections can be found under the DLT-V72 antenna or under the
protective cap (for devices without radio equipment):
− Service-USB (USB 3.0 Host, SUPERSPEED
− CFast-Slot
− Mini-SIM card slot (optional)
NOTICE: Physical damage
− Antennas or protective caps are only permitted to be removed by qualified expert
personnel and only for the duration of servicing work.
− Switch off the DLT-V72 before removing the antenna or protective cap.
− Insert/remove cards and sticks when the device has been fully deenergised.
− NOTICE: Hold cards and sticks securely and carefully, and insert precisely into the
connections to avoid anything falling inside the device.
DLT-V72 with WLAN antenna
Remove the antenna cap as specified.

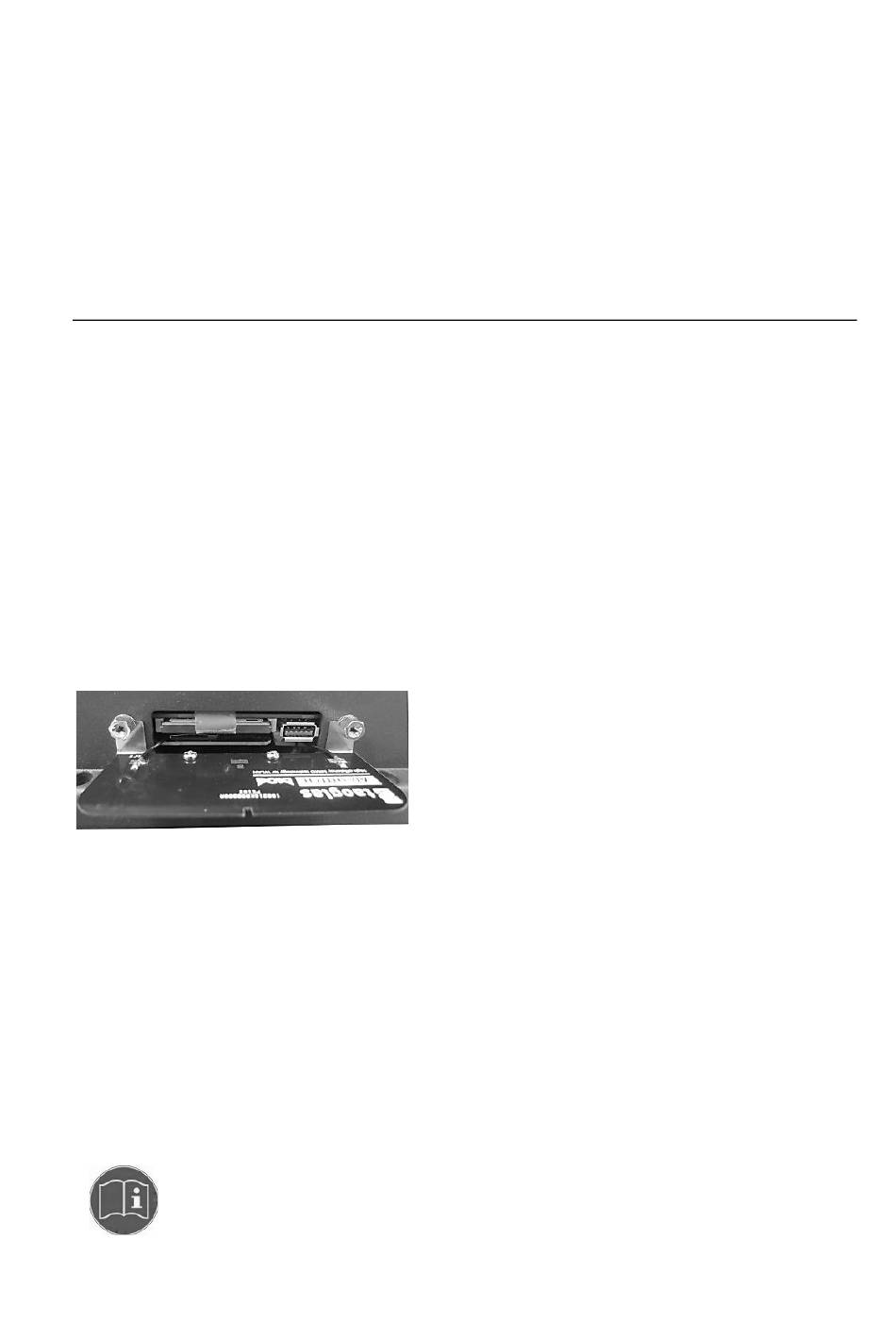

The connections underneath the antenna cap are now accessible:
DLT-V72 with WLAN, WWAN, LTE 4G antenna
− Detach the antenna cap from the device.
− Remove the radio module of the antenna.
− NOTICE: Carefully remove this radio module from the device; it is fastened to the
radio card inside the device with thin connection cables. No further radio operation is
possible if a connection cable is damaged or detached.
Refer to the description and required tools for opening the antenna in the
"DLT-V72 Operating Instructions".
)
